1) Easy maintenance at all situation
2) Self contained unit with integrated hydraulic power pack
3) Fail-safe brakes on all movements
4) Fully enclosed and equipped operator cabin with air condition
5) The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load
6) Technology from Germany
7) Base on many year's design and fabrication experience of crane and other similar equipment
8) Suitable for all kinds of ships and low power consumption and high efficiency
9) Welded and high strength box boom for easy maintenance
10) With Many safety protection devices---hook up limiter and overload limiter, emergency stop button
CCS Steel Lifting cargoes 20M 0.2T Telescopic Boom Crane
Price:
Negotiation
MOQ:
1 unit
Delivery Time:
20 days
Brand:
OUCO
Product Description

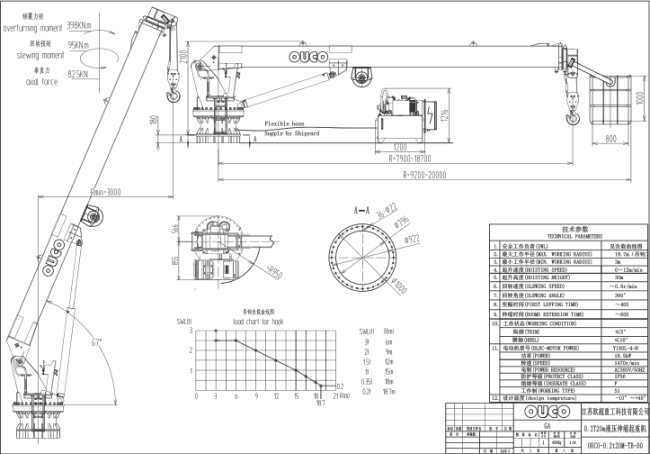

CCS Steel Lifting Cargoes 20M 0.2T Telescopic Boom Crane
FEATURES
| 1 | SWL | 0.2 tons at 20 meters with man riding |
| 2 | Maximum Working Radius | 20 meters |
| 3 | Minimum Working Radius | 3 meters |
| 4 | Hoisting Height | 30 meters |
| 5 | Hoisting Speed | 0.6rpm |
| 6 | Slewing Angle | 360° |
| 7 | Luffing time | 40s |
| 8 | Telescopic time | 60s |
| 9 | Protect Class | IP56 |
| 10 | Insukate Class | F |
| 11 | Working Type | S1 |
| 12 | Design Temperature | -10°~45° |
| 13 | Power Source | 380V, 50Hz |
With years of experience, the OUCO Marine Group has its own designing team and manufacturing
factory, excellent European management who has 47 years of experience on offshore business, which
also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane,
non-standard steel structure, more environmental-friendly operations and also truck crane with the range
from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
