Yacht Deck Pedestal 0.35t 3.5m Telescopic Boom Crane
Yacht Deck Pedestal 0.35t 3.5m Telescopic Boom Crane
Product Description
Product Feature
Simple design simplifies the maintenance.
Compliance with the most demanding safety rules and regulations;
Overload protection;
Reliable long service life guaranteed through the use of high quality reputable components, extensive endurance testing and easy future upgrades.
OUCO manufactures small service cranes in different boom lengths and depending on the crane’s application, we offer certification by all major classification societies and a broad set of available accessories. They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request.
Specification
| SWL | 0.35T@3.5M |
| MAX WORKING RADIUS | 3.5m |
| MIN WORKING RADIUS | 1.5m |
| HOISTING SPEED | 0~15m/min |
| HOISTING HEIGHT | 10m |
| SLEWING SPEED | ~0.8r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 40s |
| EXTENSION TIME | ~25s |
| WORKING CONDITION |
TRIM ≤2° HEEL ≤5° |
| POWER | 4.5kw |
| PROTECT CLASS | IP44 |
| INSUKATE CLASS | F |
| WORKING TYPE | S1 |

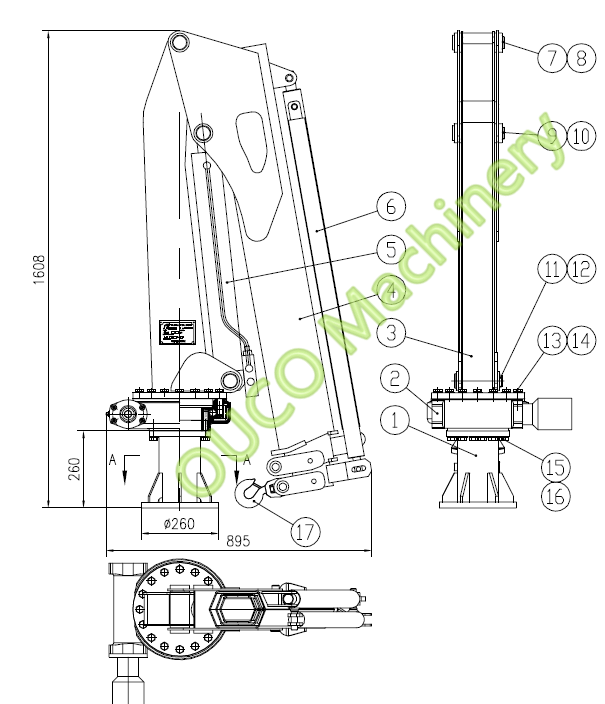

General Arrangement
Details
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
