Yacht 2t 10m Telescopic Boom Hydraulic Deck Crane
Yacht 2t 10m Telescopic Boom Hydraulic Deck Crane
Product Description

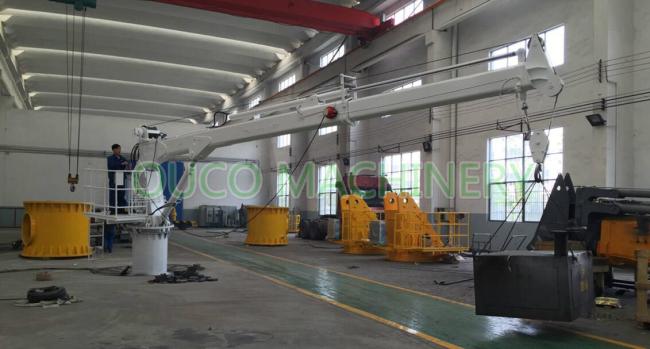

OUCO Marine/Offshore Telescopic boom cranes are based on a pedestal slewing design with hydraulic cylinder luffing.
The boom extension is a telescopic inner section that allows a more flexible and wider operational radius in use and leaves the crane stored in a compact position.
The advantages of the telescopic cranes are low weight and less complex design making them maintenance-friendly.
The cranes are available from 5–40 meters of crane boom, which have long range of usage. OUCO Marine Telescopic cranes can be designed and manufactured by clients’ requirements in our own factory.
Main Features and advantages
The availability of a telescopic or fixed jib extension on a telescopic boom is not only easy to attach and use, but it makes it possible to extend the reach of the crane boom by as much as from 1 m to 40 meter. With a jib, boom cranes are capable of reaching boom lengths as tall as 35 meter, which is very beneficial when placing loads at height or lifting personnel using a work platform.
Specification
| SWL | 2T@10M |
| MAX WORKING RADIUS | 10m |
| MIN WORKING RADIUS | 2m |
| HOISTING SPEED | 0~15m/min |
| HOISTING HEIGHT | 20m |
| SLEWING SPEED | ~0.8r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 60s |
| EXTENSION TIME | ~150s |
| WORKING CONDITION |
TRIM ≤2° HEEL ≤5° |
| ELEC-MOTOR POWER | Y160L-4-H |
| POWER | 45kw |
| Speed | 1760r/min |
| POWER RESOURCE | AC440V/60HZ |
| PROTECT CLASS | IP44 |
| INSUKATE CLASS | F |
| WORKING TYPE | S1 |
General Arrangement
Customer visiting
Our Company
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO has more than 150 employees, 20 are technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
OUCO provides high quality handling solutions and access systems for the Crane, port industries and various non-standard structural parts. The company has its own developing, designing, and manufacturing capacity for products of metallurgical complete sets of equipment, marine cranes, truck cranes, boiler desulfurization and denitrification environmental protection products in air pollution control field. Company products are widely used in the metallurgical, ship, port, electricity, petroleum, building materials and chemical industries.
OUCO has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East. It has an annual output of 11,000 tons of steel structure production capacity.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
