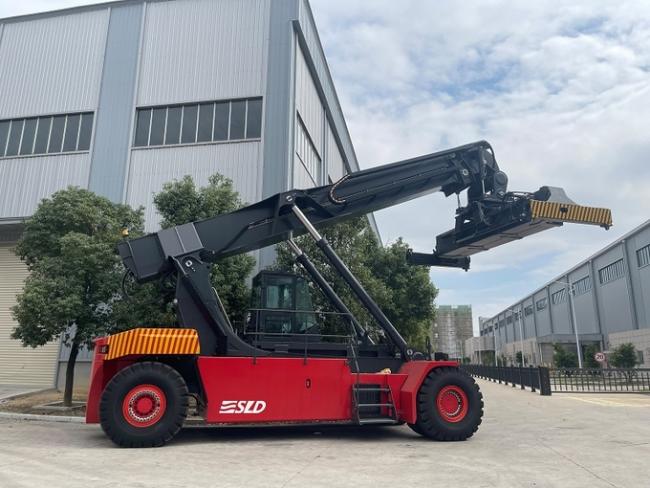

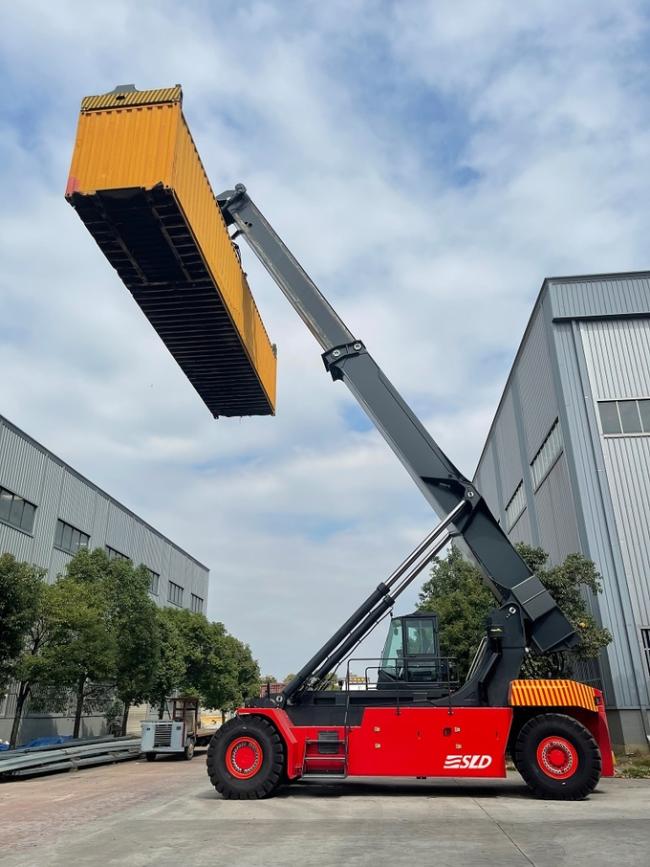

Product Description:

The Container Reach Stacker is a heavy-duty piece of equipment designed for handling ISO 20'-40' containers with ease. With a service weight of 71400 kgs, this machine is capable of unloading containers quickly and efficiently.

The spreader type used in this reach stacker is specifically designed for handling containers, making it the perfect choice for loading and unloading cargo in ports, terminals, and other industrial settings.

The Container Reach Stacker is equipped with a powerful CUMMINS QSM11-330 engine, providing the necessary power and performance for heavy lifting and handling. This new engine is designed for maximum durability and efficiency, ensuring long-term reliability and cost-effectiveness.

The drive axle of this reach stacker is a Kessler D102PL341, known for its superior durability and performance. With this drive axle, the Container Reach Stacker is capable of navigating through rough terrains and handling heavy loads without any difficulty.

Whether you need to load or unload containers from trucks, trains, or ships, the Container Reach Stacker is up for the task. Its versatile design and powerful capabilities make it the perfect choice for any container loading or unloading operation.

Choose the Container Reach Stacker for your heavy lift container stacking needs and experience efficient and reliable cargo handling like never before.

Product Highlights:

• Spreader Type: Specifically designed for handling ISO 20'-40' containers
• Service Weight: 71400 kgs, perfect for heavy lifting and unloading
• Drive Axle: Kessler D102PL341, known for its durability and performance
• New or Used: New
• Engine: CUMMINS QSM11-330, powerful and efficient

• CHARACTERISTICS
  Model		SLDR450
  Power unit		Diesel
  Operation type		Driver seated
  Load capacity (L1, L2, L3)	Q (kg)	45000/31000/16000
  Load centre, first row (L1)	c (mm)	1800
  Load centre, second row (L2)	C (mm)	3860
  Load centre, third row (L3)	C (mm)	6400
  Axle centre to spreader center (L1-1/2 high)	x (mm)	2800
  Wheelbase	y (mm)	6400
  DIMENSIONS
  Boom lift angle, raise/lowered	α/β(/°)	61/0
  Height boom lowered	h1 (mm)	4945
  Lift height (L1, L2, L3)	h3 (mm)	15900/14100/11350
  Height, boom extended	h4 (mm)	19000
  Height of cabin	h6 (mm)	3900
  Height, operator's seat	h7 (mm)	2840
  Towing coupling height	h10 (mm)	600
  Twist lock height lowered	h13 (mm)	1495
  Overall length with spreader	l1 (mm)	11618
  Overall length	l2 (mm)	8410
  Overall width	b1/b2 (mm)	4180/3400
  Width of spreader 20'/40'	b3 (mm)	6050/12150
  Ground clearance min.	m1 (mm)	345
  Ground clearance, centre of wheelbase	m2 (mm)	350
  Stacking aisle 20' containers	Ast (mm)	10225
  Stacking aisle 40' containersTurning radius	Ast (mm)	13050
  Min. pivoting point distance	Wa (mm)	8605
  Min. pivoting point distance	b13 (mm)	3400
  Wheelspan, front wheels	b10 (mm)	3030
  Wheelspan, rear wheel	b11 (mm)	2786
  WEIGHT
  Weight (unladen/laden)	kg	71400/116400
  Load on drive axle (unladen/laden)	kg	36400/101900
  Load on steering axle (unladen/laden)	kg	35000/14500
  PERFORMANCE
  Travelling speed (unladen/laden)	Km/h	25/21
  Gradeability (unladen/laden)	%	30/28.8
  Tractive force (unladen)	Kn	408
  Lifting speed (unladen/laden)	m/s	0.39/0.28
  Lowering speed (unladen/laden)	m/s	0.39/0.39
  CABIN
  Movable closed cabin
  Equipped with A/C, cooling/heating functions
  Noise level at driver's seat	dBA	74
  ENGINE
  Brand		CUMMINS
  Type		QSM11
  Cylinder no./displacement		6/10820 cm3
  Rated power @ rated speed		250kw @ 2100rpm
  Max. torque		1674Nm@ 1500rpm
  Rated current of alternator		150A
  Battery		24V
  TRANSMISSION
  Brand		ZF/5WG261 AUTO
  Type		Auto-shift/interlock
  Clutch type		Torque converter
  Gear no.		5F/3R
  TYRES
  Drive wheels		18.00-25 40PR
  Steering wheels		18.00-25 40PR
  Type		Pneumatic
  Pressure		10 bar
  Quantity, front/rear		4/2
  TANKS CAPACITY
  Hydraulic oil tank	L	800
  Fuel tank	L	500
  DRIVE AXLE
  Brand		Kessler/Germany
  Model		D102PL341
  STEERING AXLE
  Brand		Kessler/Germany
  Model		L102
  Steering		Double action cylinder
  BRAKE SYSTEM
  Service brake		Hydraulic wet-disc
  Parking brake		Electric released disc brake, enabled when power off
  HYDRAULIC SYSTEM
  Twin piston pump
  Max. pressure: 310 bar
  Load sensing system
  Hydraulic cooler with electric motor
  Separate brake oil tank
  BOOM
  2x Dual action lift cylinders
  1x Dual action extension cylinder
  SPREADER
  Handling ISO 20'-40' containers
  2x damping cylinder	2x gearbox & brake system
  Brand	SP45
  Rotate degrees	-105°/+195°
  Sideshift	-800/+800mm
  TRUCK SAFETIES
  Error display system
  Counter system for containers
  Weighing system (low precision)
  Electric anti-overload system
  Full can-bus control system
  Direction gearshift interlock
  Parking brake enabled when power off
  Seat switch
  SPREADER SAFETIES
  Locking/unlocking only after correct landing
  Lifting/lowering only when the 4 twistlocks on same position
  Anticollision rotation limit switch

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is SLD.
• Q: Where is this product manufactured?
  A: This product is manufactured in China.
• Q: What certifications does this product have?
  A: This product is certified with CE, ISO, and FDA.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1 unit.
• Q: Is the price negotiable for this product?
  A: Yes, the price for this product is negotiable.

• Q: How is this product packaged?
  A: This product is packaged nude.
• Q: What is the delivery time for this product?
  A: The delivery time for this product is 30 working days.
• Q: What are the available payment terms for this product?
  A: The available payment terms for this product are L/C and T/T.
• Q: What is the supply ability for this product?
  A: The supply ability for this product is 10 units per month.
