Rubber mixing mill, Rubber mixer, Rubber mixing machine,Open Mill
This Lab Mixing Mill ensures the perfect and uniform blending of natural and synthetic rubber with other raw materials. The lab open mill mixes all the raw materials to the desired specifications.
1. Lab Mixing Mill can be equipped with infrared, in order to ensure the safety of the operator.
2. We can produce electric heating, steam heating and water cooler rubber mixing mill.
3. The workers can operation the machine in front and back. Lab Mixing Mill is equipped with emergency stop devices below the machine
which can stop at any time to meet an emergency situation, thus ensure the safety of personnel.
4. Can be equipped with manual and automatic hanging plastic device, ease of tapping and increase staff safety factor.
5. Protective cover can be equipped upward the roller, to ensure the safety of operating personnel.

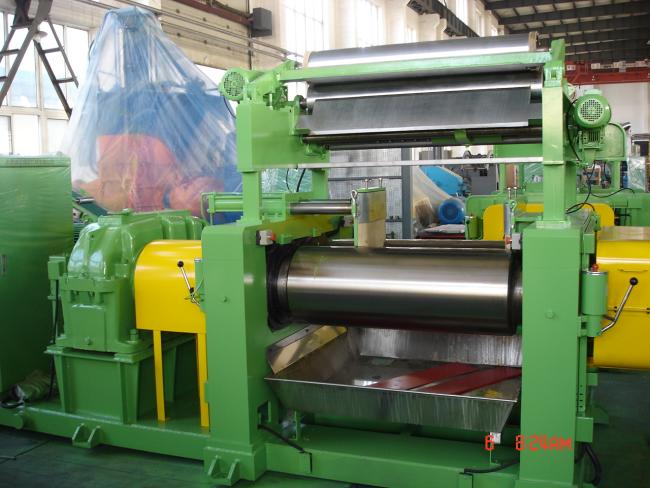

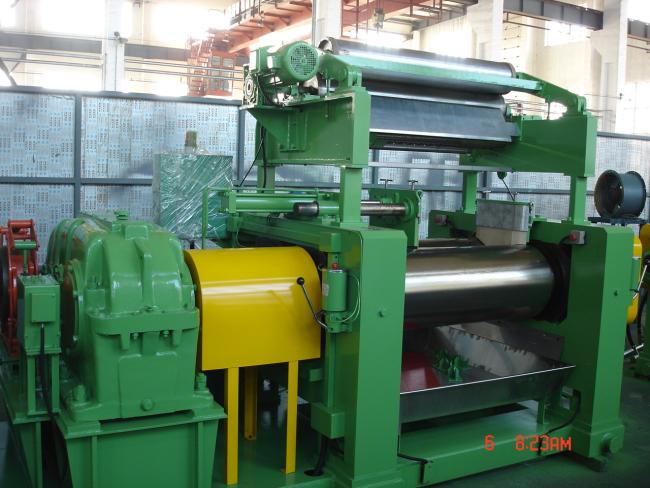

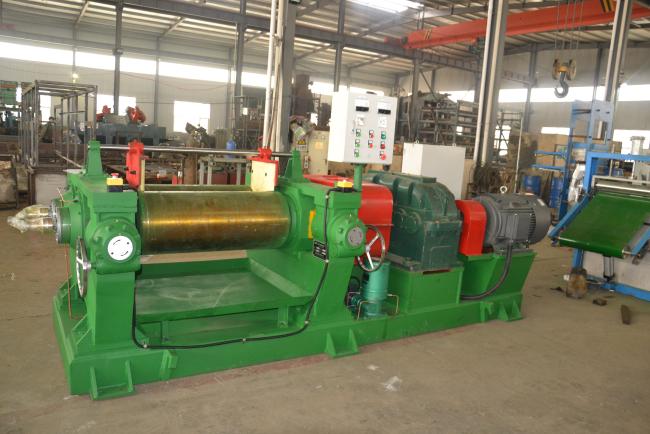

reference photo
product parameter
| Item | X(S)K-90 | X(S)K-100 | X(S)K-160 | |
| Roll Size | ∮90X215 | ∮100X230 | ∮160X320 | |
| Roll Hardness | HRC50-55＇ | HRC50-55＇ | HRC50-55＇ | |
| Roll Friction Ratio | 1︰1.22 | 1︰1.22 | 1︰1.35 | |
| Front Roll Speed | 19.6r/min | 19.6r/min | 17.85r/min | |
| Rollers Spacing | 0-3mm | 0-3mm | 0-4mm | |
| Capacity Per Patch | 0.5-1 Kg | 1-5 Kg | 1-15 Kg | |
| Motor Power | 3 | 1.5/3 | 5.5 | |
|
Overall Dimension (L x W x L) |
1200mm×750mm×1500mm | 1400mm×650mm×1500mm | 1500mm×750mm×1500mm | |
| Remark |
1.Electric heating can adjust temperature between room temperature to 220℃. 2. Bearing type drive. 3. Sealed by high temperature resistance seals, eliminating oil leakage. |
|||
