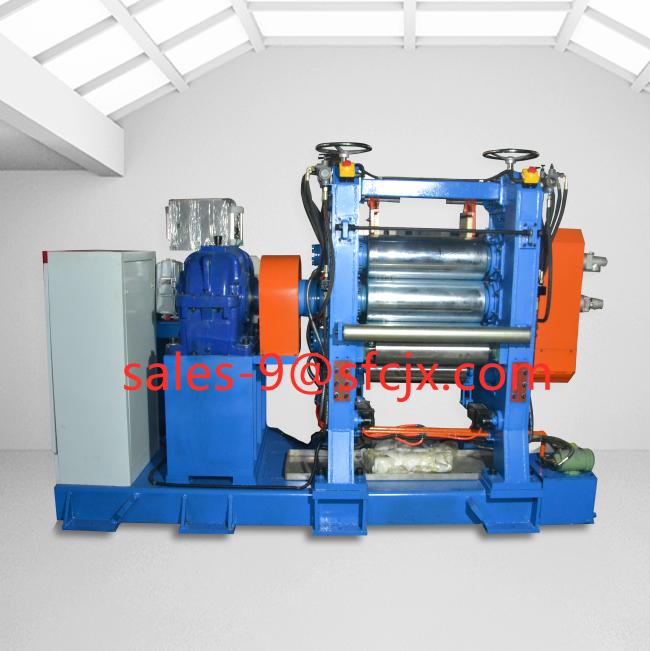

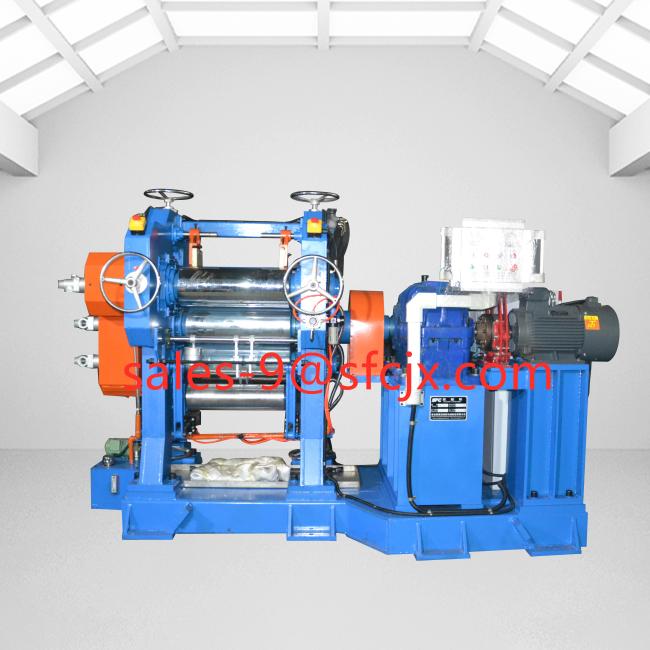

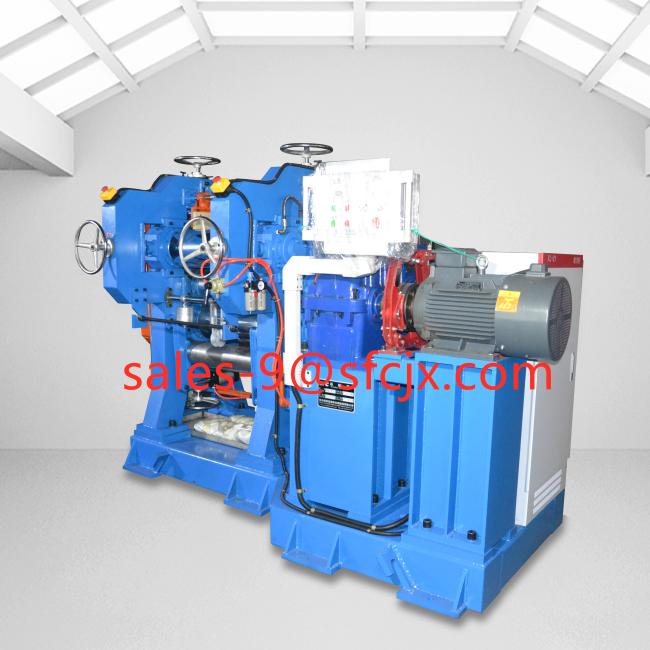

Five roll/roller rubber calender machine

Rubber Calender Machine Features:

1. The roller is made of chilled cast iron alloys, whose work surface has high hardness, wear-resistent and durable life.
Steam, cooling water, and heat-conducting oil can pass into the rollers cavity, so that the working temperature can be adjusted in order to meet the technical requirements.

2. Roll spacing can be adjusted both by manual or electric mode.

3. Roller bearings lubricating can adopt drier oil or dilute oil.

Application:
1. The Roller Calender - Rubber Machinery is mostly used in oppression of rubber products and textile(like cotton, rayon, nylon etc). The precision calender besides has the ordinary calender main spare part and the equipment, increased the guarantee rolling precision installment.
2. We have three-roll, four-roll and two-roll calender, should any of items be of interest to you, please contact me for further details.
3. Roller Calender - Rubber Machinery is according to certain form arrangement, under certain temperature, extends the rubber or the plastic suppression certain thickness and the superficial shape film.

Model: XY-5R-230
Roller diameter: 230(mm)
Roller working length: 630(mm)
Roller surface hardness: 68-75
Roller speed ratio: 1 : 1 : 1 : 1
Middle roll line speed: 0.8-10 r/min
Roll distance adjustable range: 0-6 (mm)
Roll distance adjustment method: Manual
Product minimum thickness: 0.2(mm)
Product maximum width: 500 (mm)
Main motor power 11 KW
