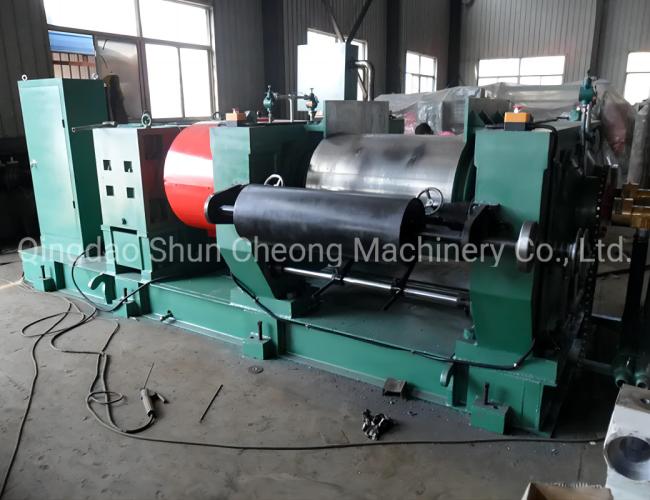

XKJ-480 Reclaimed Rubber Machine , Rubber Refining Mill 500 Kg Per Hour
XKJ-480 Reclaimed Rubber Machine , Rubber Refining Mill 500 Kg Per Hour
Frank Zhang
Business Manager
sales-8@sfcjx.com
Mainly used for crushing and grinding waste rubber and raw rubber
Features: The roller material is made of alloy chilled cast iron or cast steel and is integrally cast. The surface is hard and wear-resistant. The rear roller is a grooved roller and the front roller is a smooth roller. The inner cavity is processed and the temperature of the roller surface is uniform. The machine is equipped with an overload protection device to protect the main components from damage due to overload. The machine is equipped with safety reverse braking. When an emergency occurs, press the button switch and the machine will brake immediately, which is safe and reliable. The machine adopts an integral base, which is easy to install and maintain.
The technical parameters for some models Reclaimed Rubber Machine:
| Product Model | XKJ-400 | XKJ-450 | XKJ-480 |
| working Diameter of rollers (mm) |
Ф400 Front roller Ф480 Rear roller
|
Ф450 Front roller Ф510 Rear roller |
Ф480 Front roller Ф610 Rear roller |
| Roller casting process | Centrifugal complex casting | Centrifugal complex casting | Centrifugal complex casting |
| Roller cooling mode | Around the borehole cooling | Around the borehole cooling | Around the borehole cooling |
| Roller surface material | High nickel-chromium molybdenum alloy | High nickel-chromium molybdenum alloy | High nickel-chromium molybdenum alloy |
| Working length of rollers (mm) | 650 | 800/1000 | 800/1000/1200 |
| Rear roller linear speed (m/min) | 32.94(optional) | 49/55.2/63.4(optional) | 57.5-75.1(optional) |
| Front and rear roller speed ratio | 1.27~1.815(optional) | 1.38~1.82/2(optional) | 1.27~1.815(optional) |
| Production capacity (kg/h) | 300 | 360 | 500-800 |
| Motor power (kw) | 55 | 55 | 75/90 |
| Roll distance adjustable range (mm) | 0.1-15 | 0.1-15 | 0.1-15 |
| Reducer | Hardened ZSY | Hardened ZSY | Hardened ZSY |
| Bearing type | Double aligning roller bearing | Double aligning roller bearing | Double aligning roller bearing |
| Overrall size L*W*H (mm) | 4750*2300*1835 | 4060*2200*1470 | 5070*2800*1978 |
| Weight (kg) | About 10500 | About 12800 | About 20000 |
