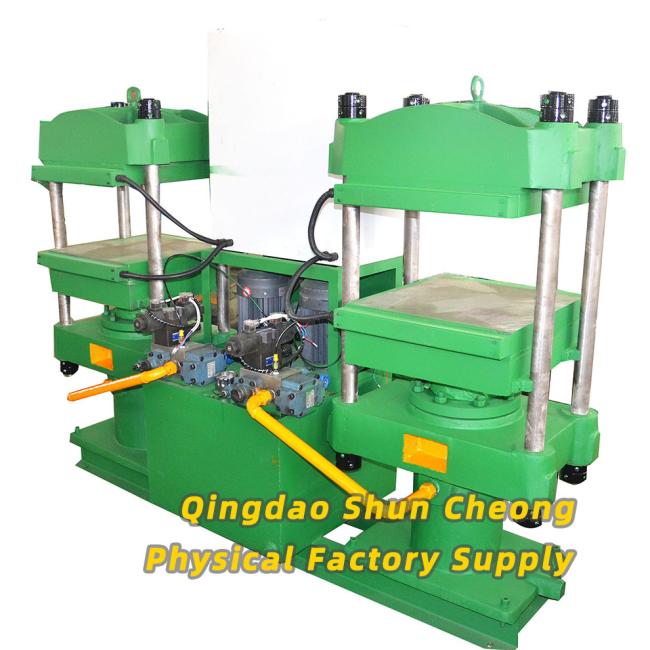

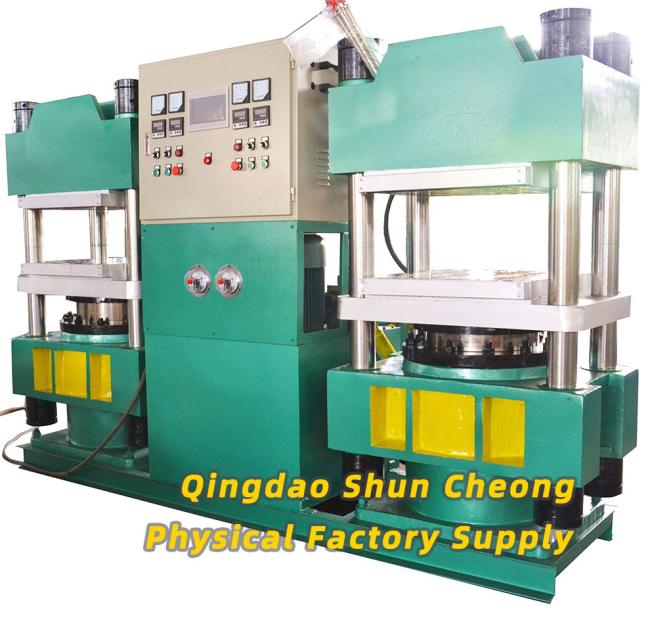

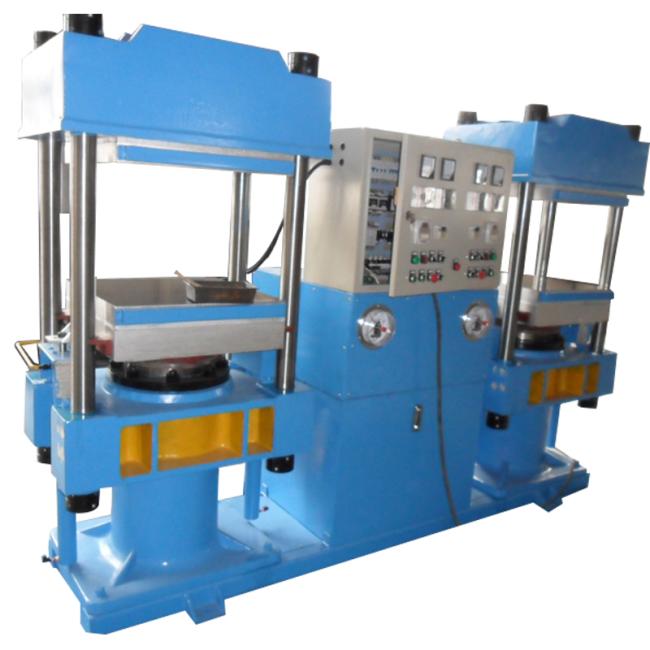

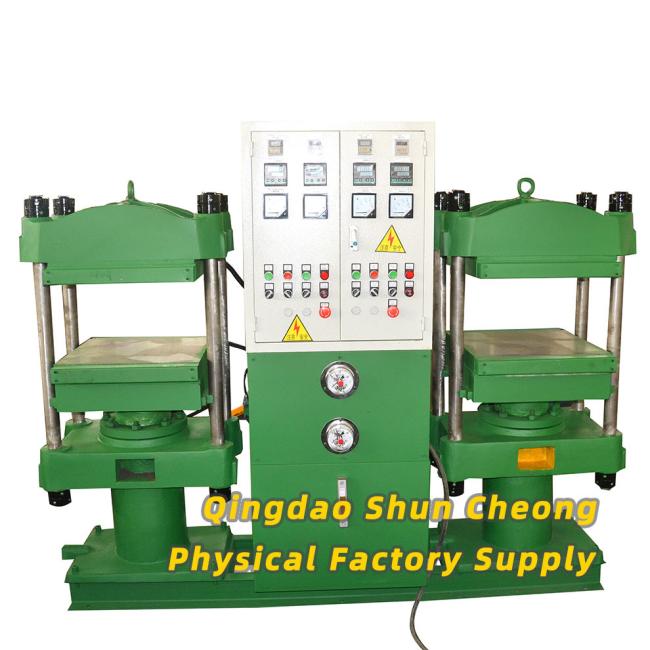

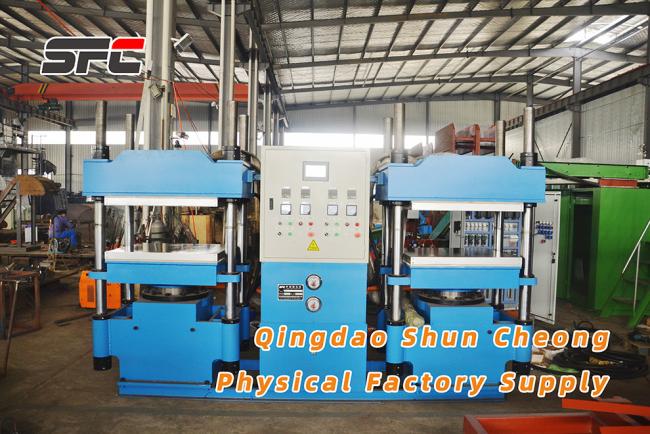

Duplex Plate Vulcanizing Press with 1 MN Total Pressure 125 mm Daylight and 2 Working Layers
The vulcanizer is an advanced hot pressing equipment designed for pressing various types of thermosetting rubber materials.
- Three heating methods available: electric heating, steam heating, and heat transfer oil heating
- Customizable according to customer parameter requirements
- Cylinder (piston) features optimal seal structure with rational design and reliable functionality
- High-quality YX type polyurethane seals (oil resistant, aging resistant) instead of rubber seals
- Fully automatic control system: automatic mold closing, automatic exhausting, automatic heating with stable temperature maintenance, automatic vulcanization timing, automatic alarming, and automatic mold opening
| Model | XLB-350×350×1/4 | XLB-400×400×1/4 | XLB-500×500×1/4 | XLB-600×600×1/4 | XLB-700×700×1/4 | XLB-750×850×1/4 | XLB-900×900×2 |
|---|---|---|---|---|---|---|---|
| Total Pressure (MN) | 0.25 | 0.5 | 0.63 | 1.00 | 1.20 | 1.60 | 2.00 |
| Plate Distance (mm) | 125 | 125 | 125 | 125 | 125 | 200 | 300 |
| Working Layer No. | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 | 2 |
| Unit Area Pressure of Hot Plate (Mpa) | 2.04 | 3.13 | 2.52 | 2.77 | 2.45 | 2.51 | 2.47 |
| Plunger Stroke (mm) | 250 | 250 | 250 | 250/400 | 250 | 400 | 400 |
| Heating Mode | Electricity | Electricity / Stream | Electricity / Stream | Electricity / Stream | Stream | Electricity / Stream | Stream |
| Motor Power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Size (L×W×H) (mm) | 1400×480×1380 | 1600×500×1480 | 1750×600×1540 | 1880×720×1680 | 2000×850×1750 | 2250×1200×2200 | 1400×900×2400 |
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. is a Chinese manufacturer established in 2007 with over 10 years of experience in producing various rubber machinery. The company holds ISO 9001:2008, SGS, and CE certifications.
Our factory specializes in:
- Rubber kneader/rubber mixing mill
- Various plate vulcanizing presses
- 2 roll/3 roll/4 roll rubber calenders
- Rubber batch off coolers
- Waste tire recycling lines
- Reclaimed rubber production lines
- Conveyor belt production lines
- Rubber seals extruding & vulcanizing lines
Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka, and many other countries and regions.
- Custom machine design with engineering drawings for customer confirmation
- Production progress tracking with regular photo updates
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical support: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
We implement comprehensive quality control throughout the entire production process. Every machine is fully assembled and carefully tested before shipment to ensure optimal performance.
We provide a one-year quality guarantee. Our machines incorporate world-famous brand components to maintain perfect working condition and long-term reliability.
Yes, we provide overseas installation service and technical support. Small machines typically require 2-3 days for installation, while large production lines may take approximately 30 days. Customers are responsible for installation costs.
We are committed to delivering high-quality machines exactly as discussed and confirmed in your order. Our company culture is built on innovation, quality, integrity, and efficiency. We have established successful partnerships with world-renowned rubber production manufacturers and can provide references upon request.
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao Jiaodong International Airport. We provide airport pickup services for visiting customers.
