DC Motor Driven Two Roll Rubber Calender with Chilled Cast Iron Rolls and Emergency Stop Device
Price:
US$32,000.00-167,000.00
MOQ:
1 set
Delivery Time:
25-35 days
Brand:
SFC
Product Description

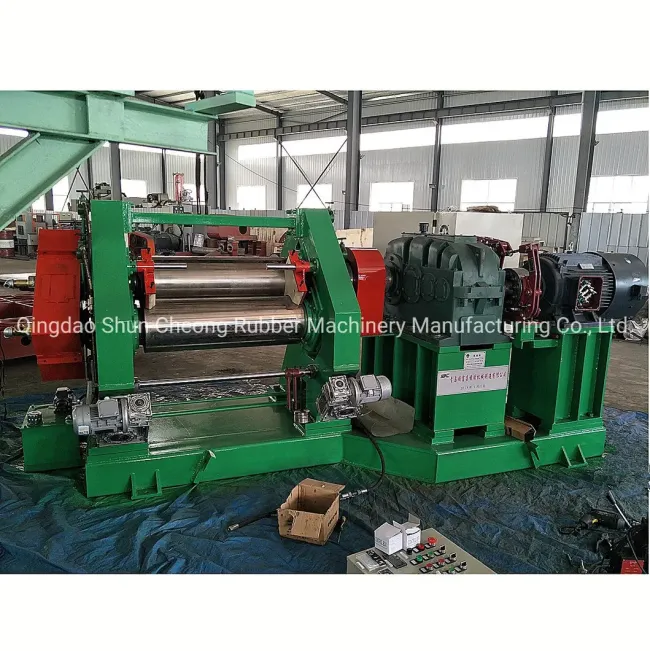

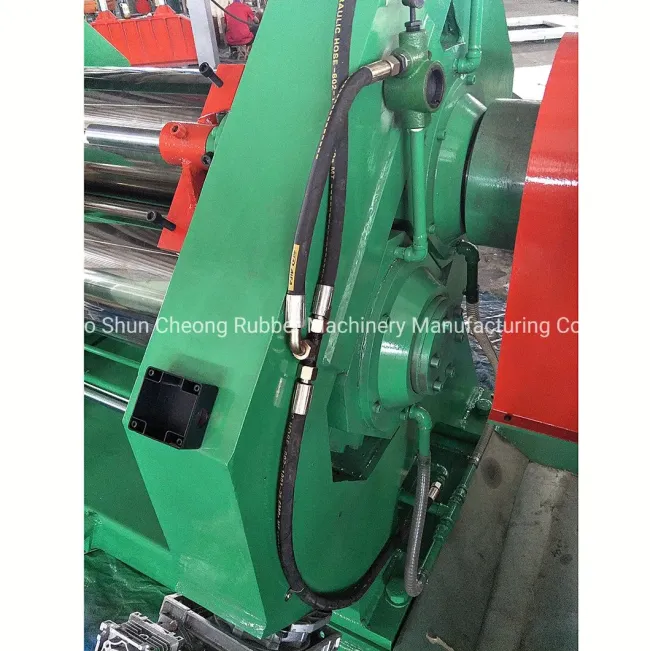

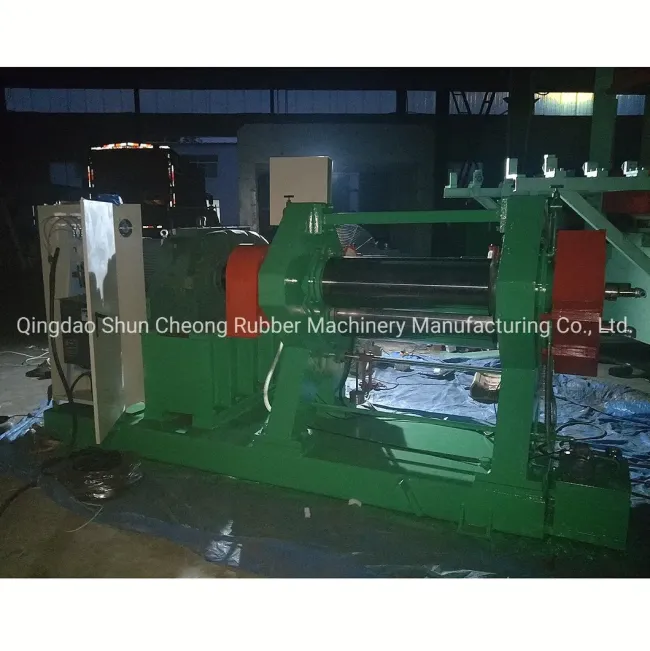

2 Roller Calender - Two Roll Rubber Calender
Professional rubber calender machine for precision material processing with advanced features and reliable performance.
Basic Specifications
Model: XY-2I 1120A
Certifications: CE, ISO
Condition: New
Structure: Horizontal
Roller Diameter: 360mm
Roller Working Length: 1120mm
Roller Ratio: 1:1
Power: 10-100kW
Roll Linear Speed: 3-20.2 m/min
Production Capacity: 20 Sets/Month
Origin: China
Certifications: CE, ISO
Condition: New
Structure: Horizontal
Roller Diameter: 360mm
Roller Working Length: 1120mm
Roller Ratio: 1:1
Power: 10-100kW
Roll Linear Speed: 3-20.2 m/min
Production Capacity: 20 Sets/Month
Origin: China
Key Features
- DC motor drive with wide speed adjustment range and stepless speed control
- Rolls made of chilled cast iron with vanadium and titanium alloys for superior hardness and wear resistance
- Circumferentially drilled or centrally bored rolls for uniform temperature distribution
- I and L form roll arrangements with upper roll cambers to eliminate bending impact
- Hard facing gear reducer for compact structure, high efficiency, low noise, and long service life
- Emergency safety device for immediate stop and roll space opening

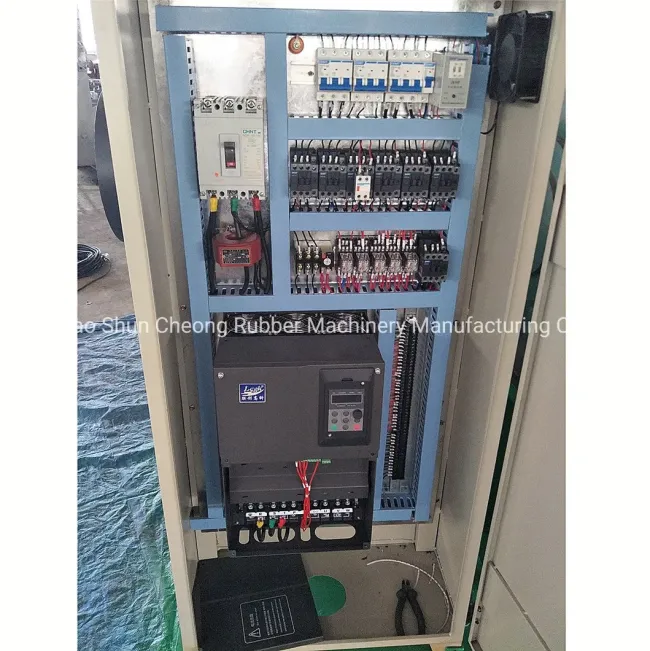

- Bearing lubrication failure alarm, nip display, and speed display systems
Technical Specifications
| Model Item | XY-2I 320 | XY-2I 620 | XY-2I 1120A | XY-2I 1500 | XY-2I 1830 | XY-2I 1730 | XY-2I 2430 |
|---|---|---|---|---|---|---|---|
| Roll dia (mm) | 160 | 250 | 360 | 450 | 550 | 610 | 810 |
| Roll working length (mm) | 320 | 620 | 1120 | 1500 | 1830 | 1730 | 2430 |
| Roll ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1.08 | 1:1 | 1:1 |
| Roll linear speed (r/min) | 7.79 | 14.8 | 3-20.2 | 2.5-24.8 | 2-18.7 | 4-36 | 2-20 |
| Adjusting nip range (mm) | 0-4.5 | 0-5.5 | 0-10 | 0-10 | 0-12 | 0-15 | 0.5-25 |
| Min. calendering product thickness (mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.5 |
| Calendering product width (kg) | 250 | 580 | 920 | 1250 | 1600 | 1500 | 2150 |
| Motor power (kW) | 5.5 | 15 | 37 | 45 | 75 | 90 | 160 |

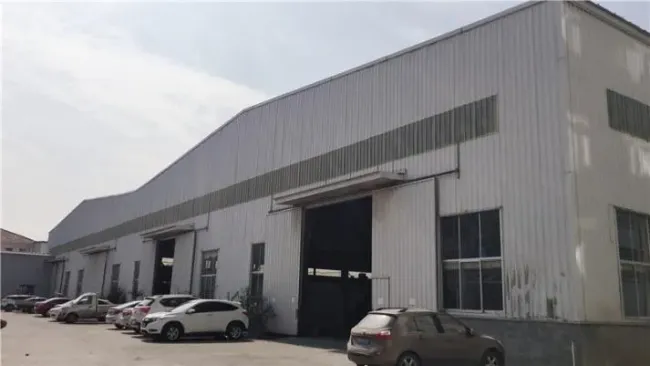

Manufacturer Profile

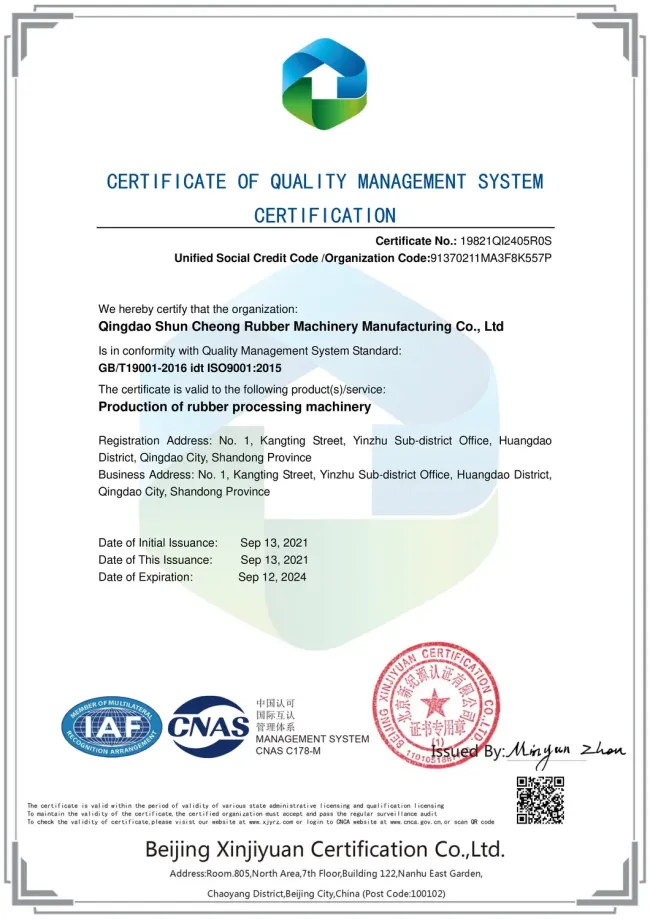

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a high-tech backbone enterprise specializing in rubber machinery production. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range
Tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbished manufacturing, and waste tire recycling equipment.
Main Equipment
Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.
Global Reach
Products exported to over 50 countries including UK, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, and more.
Quality Commitment
- All parts undergo strict quality inspection before storage
- Overload trial running before shipment with pressure testing and performance verification
- Comprehensive free technical support for all products
- 3-year warranty for main parts, 1-year warranty for wearing parts
- Immediate technical support with on-site engineer service when needed
Certifications
Customer Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress photos and updates throughout manufacturing
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical documentation: foundation drawings, installation guides, user manuals, and part drawings
- Overseas engineer service and operator training
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and carefully tested before shipment to ensure optimal performance.
What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to maintain perfect working condition and reliability.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas service and technical support. Small machines typically take 2-3 days, while large production lines require about 30 days for installation.
How can I trust you to deliver the right machine as I ordered?
We maintain a company culture based on innovation, quality, integrity, and efficiency. We have established successful partnerships with world-renowned rubber production manufacturers and welcome factory visits.

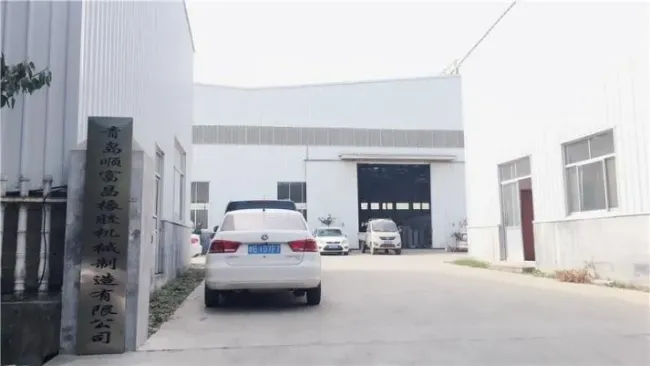

How can we visit your facility?

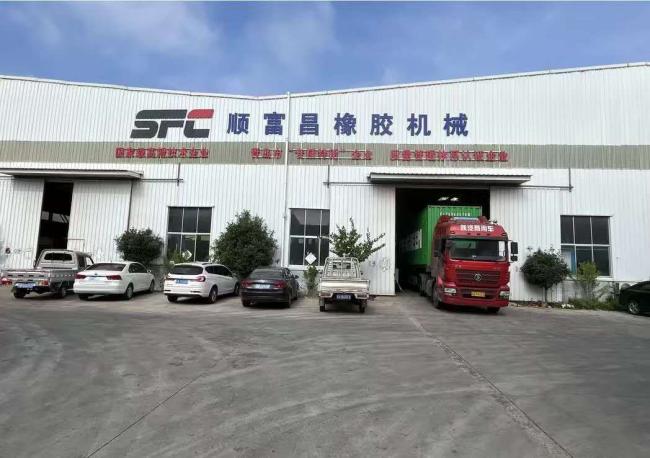

We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting clients.
