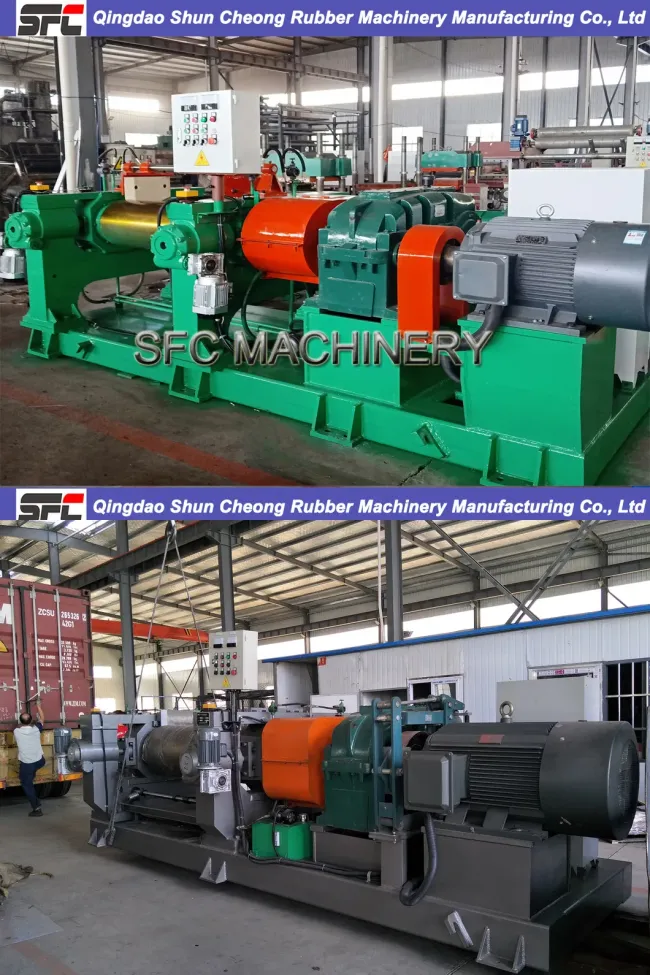

XK-560 Rubber Mixing Machine with 560mm Roll Diameter PLC Control Open Mixing Mill
Price:
US$10,000.00-17,000.00
MOQ:
1 set
Delivery Time:
25-35 days
Brand:
SFC
Product Description
XK-560 Rubber Mixing Machine with The King of Quality
Product Overview
Professional XK-560 rubber mixing machine designed for efficient compound processing with reliable performance and advanced features.
Key Features
- 20 years of manufacturing experience
- High working efficiency and productivity
- Reliable quality with standard and advanced configuration options
- Very low noise operation
- Rolls made of LTG-H alloy chilled cast iron for durability
- Hard tooth speed reducer with low noise and long lifespan
- Special refining seal structure prevents lubricating oil leakage
- Human-oriented design with ergonomic operation system
- Optional hydraulic or mechanical automatic mixing devices
- Manual or electrical roll nip adjustment
- Emergency stop button for operator safety
- 8-hour non-stop full load operation testing before shipment
Technical Specifications
Model Number:XK-560
Control Type:PLC
Automatic Grade:Automatic
Power Source:Electric
Type:Open Mixing Mill
Roll Diameter:560mm
Roll Working Length:1530mm
Front Roll Linear Speed:27.72 R/Min
Speed Ratio of Rolls:1:1.2
Compound Feeding Capacity:50-60kg
Max Roll Space:15mm
Motor Power:90kw
Certification:CE, ISO
Production Capacity:20 Sets/Year
Model Comparison Table
| Item | XK-160 | XK-250 | XK-360 | XK-400 | XK-450 | XK-550 | XK-560 | XK-660 | XK-710 |
|---|---|---|---|---|---|---|---|---|---|
| Roll diameter (mm) | 160 | 250 | 360 | 400 | 450 | 550 | 560-510 | 660 | 710 |
| Roll working length (mm) | 320 | 620 | 900 | 1000 | 1200 | 1500 | 1530 | 2130 | 2200 |
| Front roll linear speed (r/min) | 9 | 16.3 | 16.7 | 19.3 | 21.8 | 22.5 | 27.2 | 28 | 31.9 |
| Speed ratio of rolls | 1:1.4 | 1:1.1 | 1:1.3 | 1:1.3 | 1:1.3 | 1:1.2 | 1:1.2 | 1:1.2 | 1:1.5 |
| Max roll space (mm) | 4.5 | 8 | 10 | 10 | 12 | 16 | 15 | 0.5-15 | 0.5-15 |
| Compound feeding capacity (kg) | 1-2 | 10-15 | 20-25 | 18-35 | 50 | 50-65 | 50-65 | 165 | 190 |
| Motor power (kW) | 5.5 | 18.5 | 30 | 45 | 55 | 110 | 90 | 240 | 280 |
Product Images
We can design various kinds of non-standard rubber machinery according to your requirements.

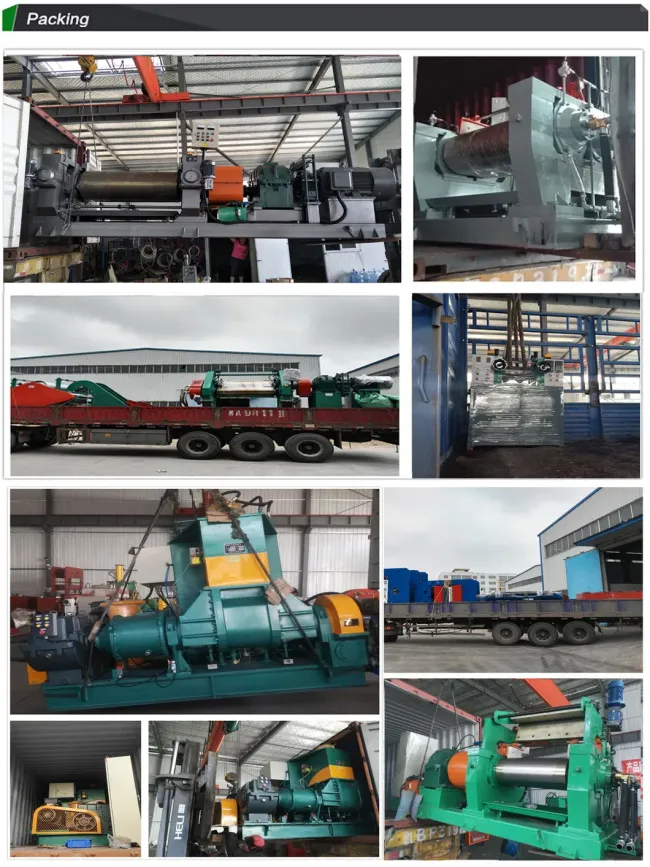

Delivery & Packaging
Standard export packaging ensures safe transportation. Delivery time for one XK-560 rubber mixing machine is 35 working days.
Frequently Asked Questions
What does your factory do regarding quality control?

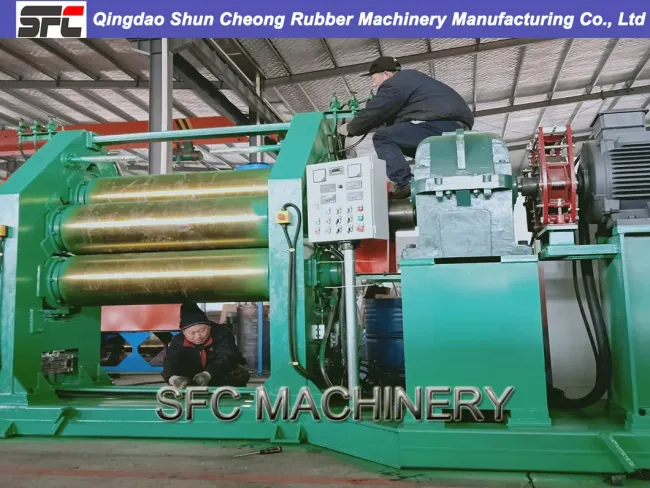

We implement comprehensive quality control throughout the entire production process. Every machine undergoes full assembly and rigorous testing before shipment to ensure optimal performance.
What's the machine quality guarantee?
We provide a one-year quality guarantee. Our machines use world-famous brand components to maintain perfect working condition and long-term reliability.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we provide overseas installation and technical support services. Customers cover installation costs. Small machines typically take 2-3 days, while large production lines require approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We are committed to delivering exactly what we confirm in your order. Our company culture is built on innovation, quality, integrity, and efficiency. We have established successful partnerships with numerous world-renowned rubber production manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China, near Qingdao Liuting Airport. We provide airport pickup services for visiting clients.
