DC Motor Driven Two Roll Calender Mill with Chilled Cast Iron Rolls and Emergency Stop Device for Rubber Processing
Price:
US$8,000.00-35,000.00
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
SFC
Product Description

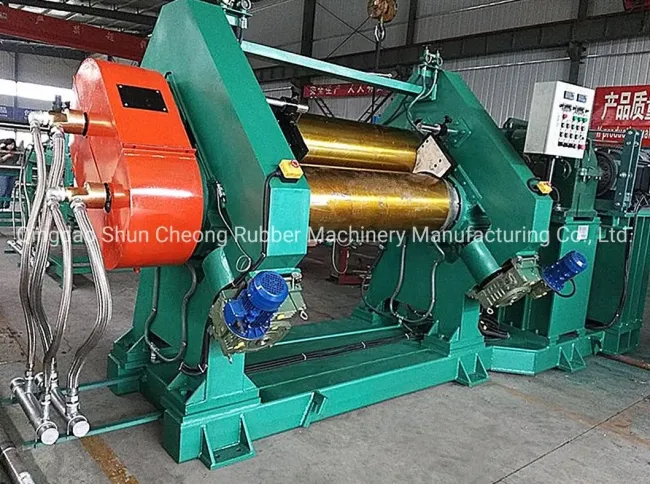

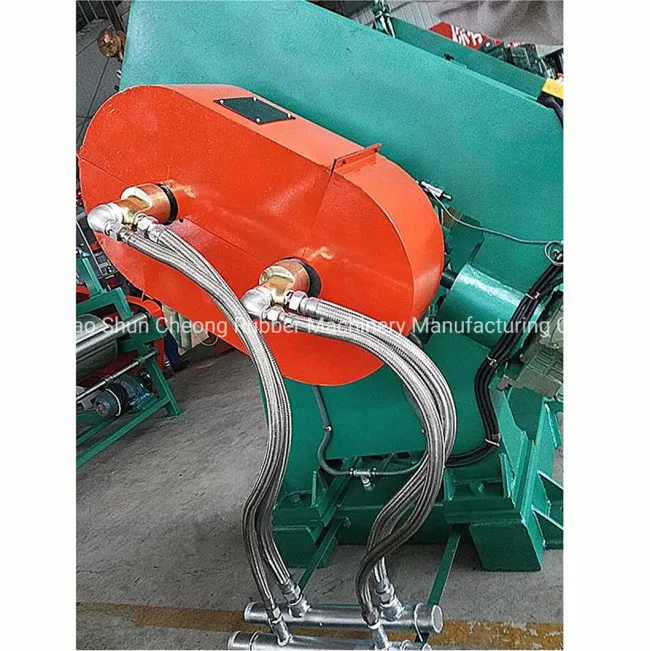

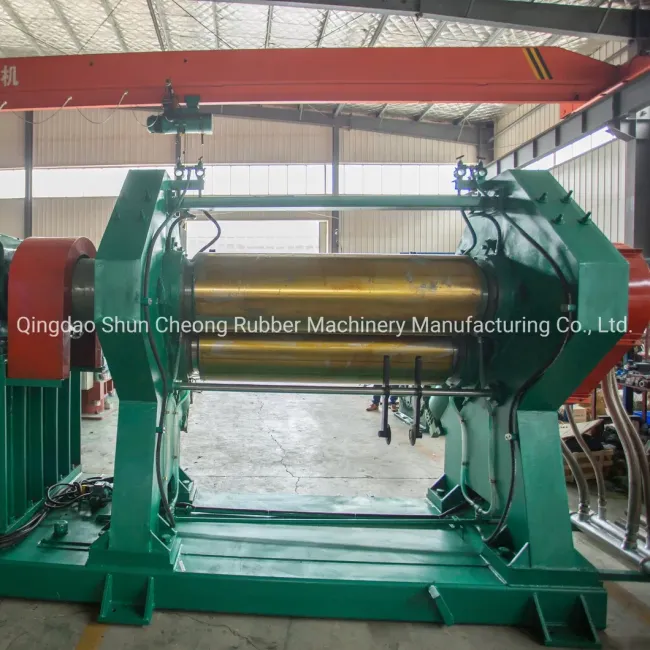

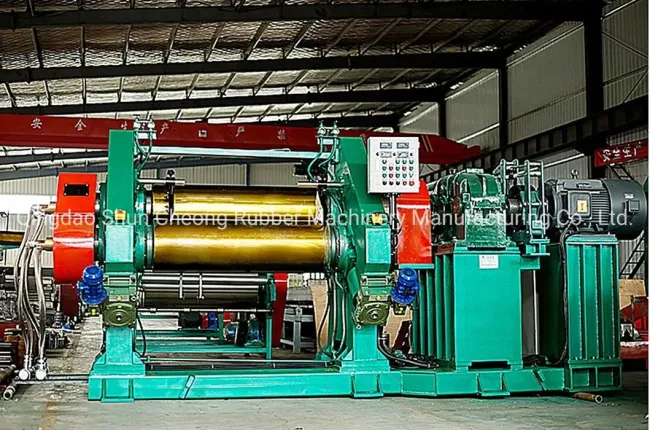

Two Roll Calender Mill for Rubber
Product Overview
Model: XY-2I 1500
Certifications: CE, ISO, SGS
Condition: New
Customization: Available
Automation Grade: Automatic
Structure: Horizontal
Roller Diameter: 450 mm
Roller Working Length: 1500 mm
Roller Ratio: 1:1
Power: 10-100 kW
Roll Linear Speed: 2.5-24.8 m/min
Production Capacity: 20 Sets/Month
Origin: China
Two Roller Calendering Production Line
Key Features
- DC motor drive with wide speed adjustment range and stepless speed variation
- Bearing lubrication failure alarm system with nip and speed display
- Rolls made of chilled cast iron with vanadium and titanium alloys for hardness and wear resistance
- Circumferentially drilled or centrally bored rolls for uniform temperature distribution
- Available in I and L form configurations with upper roll cambers to eliminate bending impact
- Hard facing gear reducer for compact structure, high efficiency, low noise, and long service life
- Emergency stop device for immediate roll space opening to protect operators and equipment
Technical Specifications
| Model Item | XY-2I 320 | XY-2I 620 | XY-2I 1120A | XY-2I 1500 | XY-2I 1830 | XY-2I 1730 | XY-2I 2430 |
|---|---|---|---|---|---|---|---|
| Roll diameter (mm) | 160 | 250 | 360 | 450 | 550 | 610 | 810 |
| Roll working length (mm) | 320 | 620 | 1120 | 1500 | 1830 | 1730 | 2430 |
| Roll ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1.08 | 1:1 | 1:1 |
| Roll linear speed (r/min) | 7.79 | 14.8 | 3-20.2 | 2.5-24.8 | 2-18.7 | 4-36 | 2-20 |
| Adjusting nip range (mm) | 0-4.5 | 0-5.5 | 0-10 | 0-10 | 0-12 | 0-15 | 0.5-25 |
| Min. calendering thickness (mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.5 |
| Calendering product width (kg) | 250 | 580 | 920 | 1250 | 1600 | 1500 | 2150 |
| Motor power (kW) | 5.5 | 15 | 37 | 45 | 75 | 90 | 160 |
| Overall dimensions L (mm) | 2200 | 3100 | 5400 | 7113 | 7420 | 5987 | 8690 |
| Overall dimensions W (mm) | 530 | 770 | 1542 | 1595 | 1760 | 1860 | 3139 |
| Overall dimensions H (mm) | 1470 | 1590 | 1681 | 2446 | 2760 | 2988 | 4270 |
| Weight (t) | 1.2 | 3 | 14.5 | 22 | 24 | 30 | 62 |
Manufacturer Profile

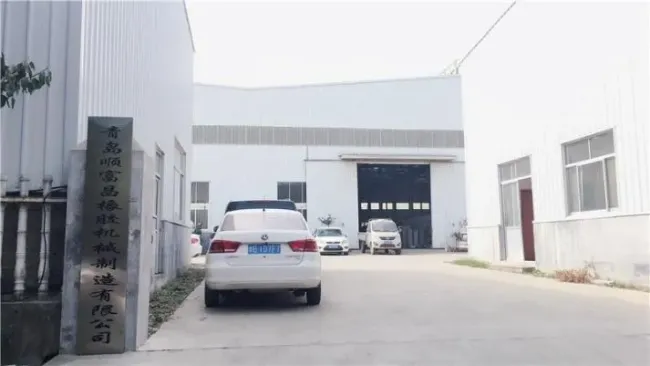

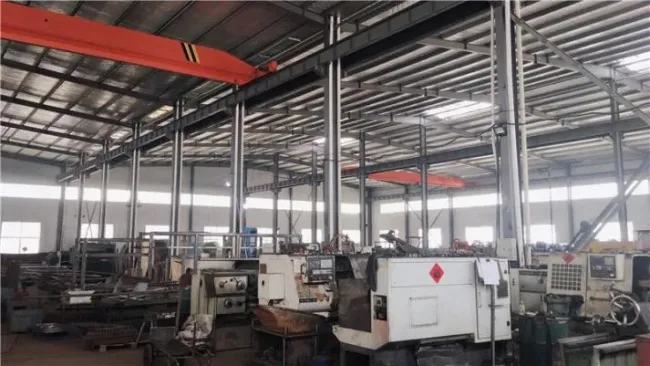

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a high-tech backbone enterprise specializing in rubber machinery production, located at Kangting Road No. 1, Huangdao New District, Qingdao City. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Industry Coverage
- Tire manufacturing
- Rubber conveyor belt production
- Various rubber products
- Tire refurbished manufacturing
- Waste tire recycling
Main Equipment Portfolio
- Rubber Kneader
- Rubber Mixing Machine
- Rubber Vulcanizing Press
- Batch Off Cooler
- Rubber Calender
- Waste Tire Crusher
- Rubber Extruder
- Rubber Strainer
Products are exported to over 50 countries including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning consistent customer praise and long-term cooperation.
Quality Commitment
- All components undergo strict quality inspection before storage
- Complete overload trial running before shipment (24-hour pressure testing at 1.25x rated pressure for Plate Vulcanizing Press, 20-minute rubber mixing at 1.1x rated capacity for Rubber Mixing Mill)
- Comprehensive free technical support for all products
- 3-year warranty for main parts, 1-year warranty for wearing parts
- Immediate remote support followed by on-site technician dispatch if needed
- Factory visits available for conveyor belt, waste tire recycling, and rubber product production lines

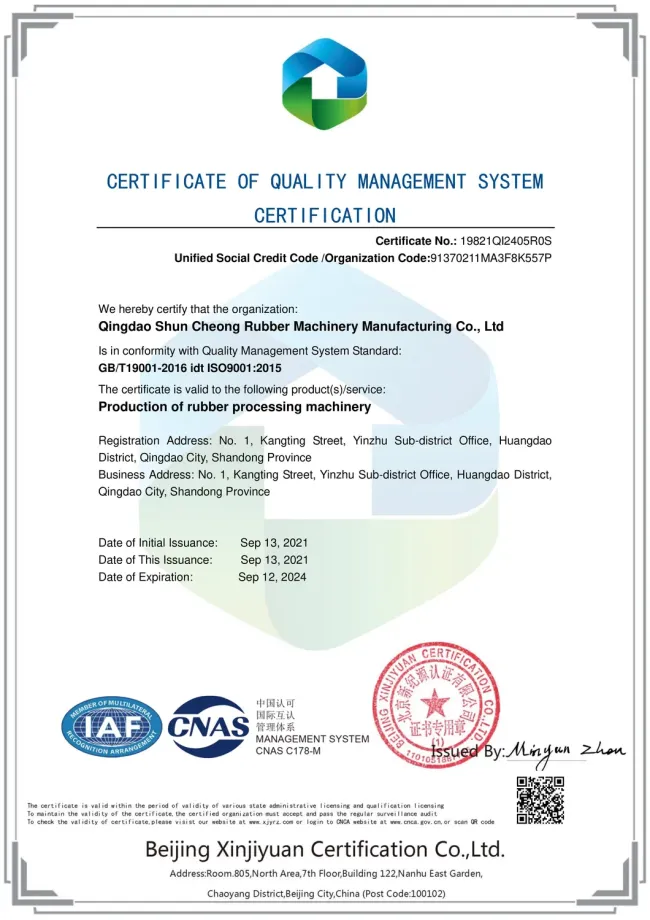

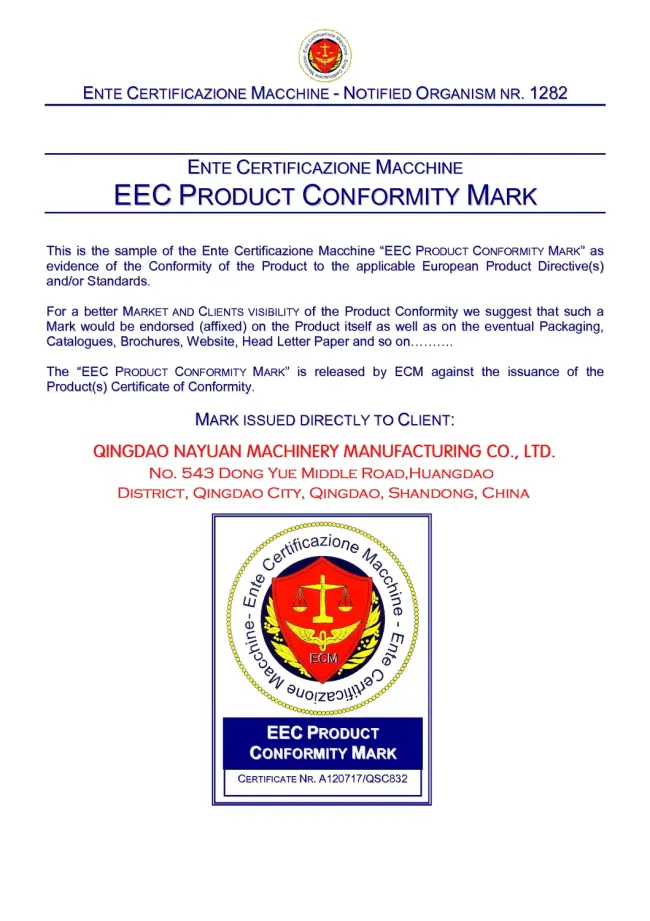

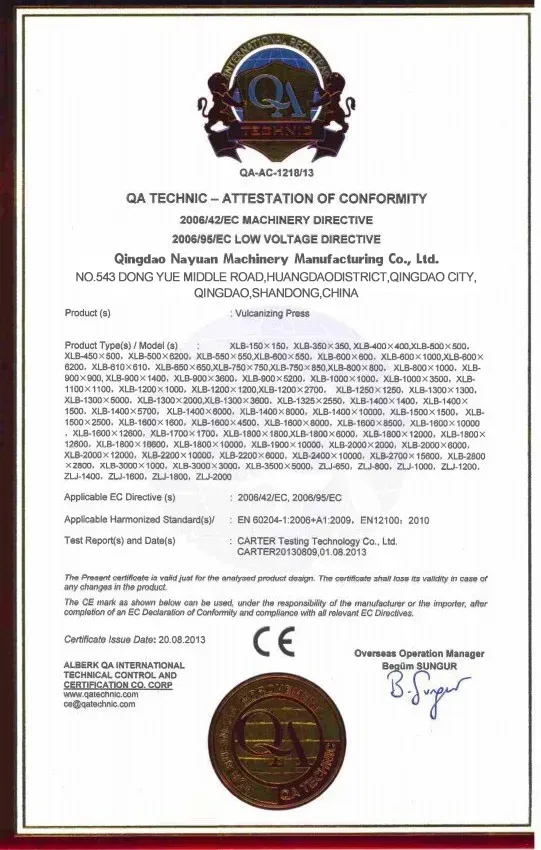

Certifications
Customer Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress photos provided during manufacturing
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical documentation: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
- Overseas engineer services and operator training
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
Quality guarantee period is one year. We use world-famous brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas service and technical support (installation costs apply). Small machines typically take 2-3 days, while large production lines require about 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of high-quality machines as confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency, with established partnerships with world-renowned rubber manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting customers.
