75L Working Volume Rubber Kneader with PLC Control and 30/24.5 R/Min Rotor Speed for Efficient Dispersion Mixing

Price Negotiable

Price: US$7,000.00-9,000.00

MOQ: 1 set

Delivery Time: 25-35 days

Brand: SFC

Product Description

20L Rubber Kneader, Dispersion Kneader

Product Overview

Model X(S)N-75X30 is a high-performance hydraulic internal mixer designed for plasticizing and mixing natural rubber, synthetic rubber, reclaimed rubber, plastics, and foaming plastics. This industrial-grade kneader features advanced sealing technology, efficient cooling/heating systems, and PLC-controlled automation.

Technical Specifications

Model: X(S)N-75X30
Total Mixing Chamber Volume: 170 L
Working Chamber Volume: 75 L
Driving Motor Power: 110 Kw
Tilting Motor Power: 4 Kw
Rotor Speed: 30/24.5 R/Min
Cooling Water Pressure: 0.3~0.4 MPa
Heating Steam Pressure: 0.5~0.8 MPa
Dimensions: 3325×2615×3150 mm
Control System: PLC
Warranty: 1 year
Certifications: CE, ISO

Key Applications

Plasticizing and mixing natural rubber, synthetic rubber, and reclaimed rubber
Processing various plastics and foaming plastics
Mixing materials of different viscosities and compositions
Industrial applications in agricultural chemicals, construction, and machinery

Product Images

X(S)N-75X30 Rubber Kneader Machine - Front View

X(S)N-75X30 Rubber Kneader Machine - Side View

X(S)N-75X30 Rubber Kneader Machine - Control Panel

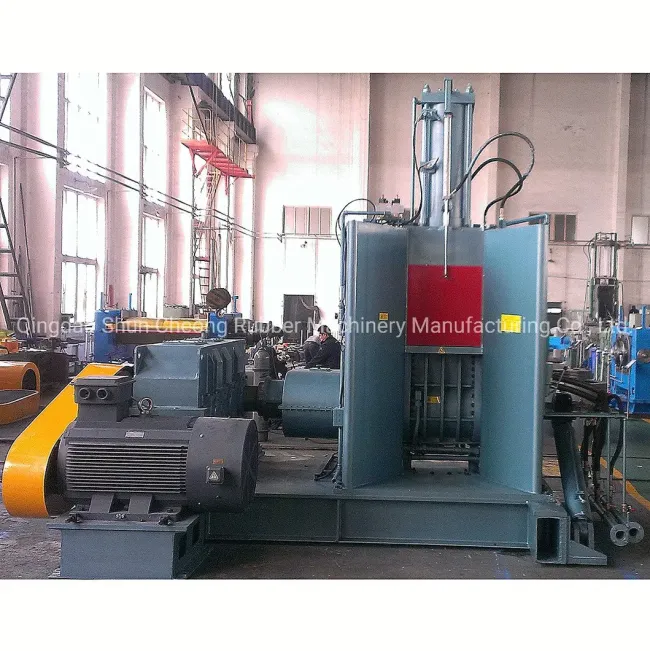

X(S)N-75X30 Rubber Kneader Machine - Internal Mechanism

Advanced Design Features

Mixing Chamber: W-shaped body with chrome-plated internal walls and cooling/heating jackets
Rotor System: Hollow banbury-type blades with hard alloy welding and chrome plating
Sealing Technology: Advanced dust stop devices with regular oil injection for zero leakage
Cooling/Heating System: Multi-passage design for rotors, chamber jackets, and top ram
Tilting Mechanism: 140° chamber rotation with cycloidal gear reducer
Control Systems: PLC-controlled pneumatic and electrical systems with overload protection

Complete Model Specifications

Item	Unit	X(S)N-5x32	X(S)N-10x32	X(S)N-20x32	X(S)N-25x32	X(S)N-35x30	X(S)N-55x30	X(S)N-75x30	X(S)N-110x30	X(S)N-150x30	X(S)N-200x30
Total Volume of Mixing Chamber	(L)	15	25	45	55	75	125	170	250	325	440
Working Volume of Mixing Chamber	(L)	5	10	20	25	35	55	75	110	150	200
Driving Motor Power	(KW)	11	22	37	37	55	75	110	185	220	280
Tilting Motor Power	(KW)	1.1	1.1	1.5	1.5	2.2	2.2	4	5.5	11	11
Rotational Speed of The Rotor	(r/min)	32/23.5	32/25	32/27	32/27	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Cooling Water	(MPa)	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of Heating Steam	(MPa)	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Dimensions (L×W×H)	(mm)	1850×1200×2580	2640×1650×2350	2675×1650×2560	2675×1650×2560	3200×1900×2950	3230×1927×2958	3325×2615×3150	4075×2712×3580	4250×2750×4106	4250×3400×4215

Manufacturer Profile

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd specializes in high-technology rubber machinery production. Certified with ISO9001:2015, CE, and SGS, the company serves global markets including tire manufacturing, rubber conveyor belts, rubber products, and waste tire recycling.
