PLC Controlled Tread Vulcanizing Press with 4.20MN Total Pressure and 5 Working Layers
Price:
US$10,000.00-100,000.00
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
SFC
Product Description

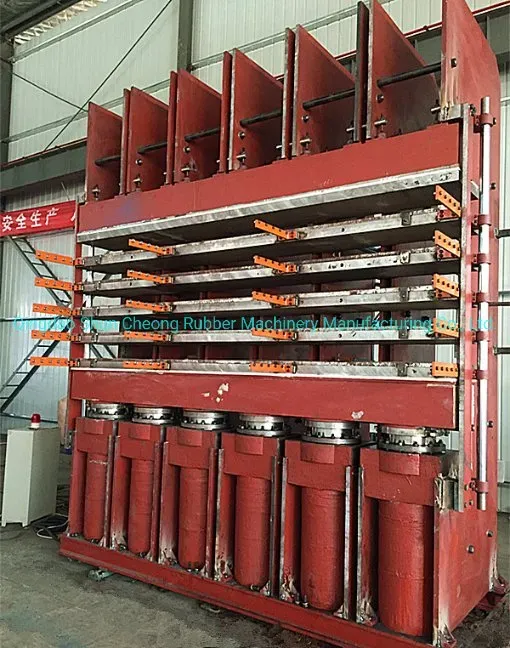

Tread Vulcanizing Press
Advanced tire tread vulcanizing press designed for efficient rubber processing with automated controls and reliable performance.
Product Specifications
| Model | XLB-3400*300X5 |
|---|---|
| Total Pressure | 4.20MN |
| Heating Plate Size | 3400*300X60(mm) |
| Unit Area Pressure | 4.1Mpa |
| Daylight | 200mm |
| Working Layer No. | 4 |
| Piston Diameter | 285mm |
| Piston Material | Alloy Chilled Cast Iron |
| Cylinder No. | 4 |
| Cylinder Material | Ductile Casting-QT500 |
| Piston Stroke | 800mm |
| Working Hydraulic Pressure | 16.47Mpa |
| Plate Heating Mode | Steam/Oil/Electricity |
| Max. Heating Temperature | 220ºC |
| Press Structure | Single C Type |
| Control System | PLC Automatic (Mitsubishi) |
| Motor Power | 15KW |
| Gross Weight | About 18000KG |
Key Features
- 4 dual-action cylinders with movable beam for efficient operation and reduced electricity consumption
- Pneumatic rotating mechanism for multi-step deflation
- Automatic mold forward/backward operation with clamping robot compatibility
- PLC controlled system for precise operation
- Unit area pressure ≥45kg/cm² ensuring tire surface density
- Multiple layer number and table options available
- High-quality hydraulic components and electrical equipment
Quality Assurance
Machine warranty: 12 months from normal operation in buyer's factory. Each press undergoes rigorous testing, maintaining pressure at 4.85MN for 24 hours before shipment.
Product Images
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a high-tech rubber machinery enterprise located in Qingdao City, China. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range
Our products serve tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbishing, and waste tire recycling industries.
Main Equipment
Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.
Global Reach
Our products are exported to over 50 countries including USA, Germany, Brazil, UK, Switzerland, Singapore, Malaysia, India, Russia, and throughout Central Asia.
Quality Commitment
- All parts undergo strict quality inspection before storage
- Comprehensive overload testing before shipment
- Free technical support for all products
- 3-year warranty on main parts, 1-year on wearing parts
- Rapid response service for quality issues
Company Images
Certifications
Our Services
- Custom machine design with engineering drawings
- Production progress photos and updates
- Complete shipping documentation
- Free technical documentation including installation drawings and user manuals
- Overseas engineer services and operator training
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
Quality guarantee is one year. We use world-famous brand components to ensure optimal performance and reliability.
Are you able to give installation and commissioning overseas?
Yes, we provide overseas service and technical support. Small machines typically take 2-3 days, while production lines require about 30 days for installation.
How can I trust you to deliver the right machine as I ordered?
We maintain a company culture based on innovation, quality, integrity, and efficiency. We have established partnerships with world-renowned rubber manufacturers and welcome factory visits.
How can we go to your side?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting clients.
