Automatic Grade 100 Ton Rubber Compression Molding Machine with 600X600 Plate Size for Car Gasket Production
Price:
US$3,200.00-9,000.00
MOQ:
1 set
Delivery Time:
25-35 days
Brand:
SFC
Product Description

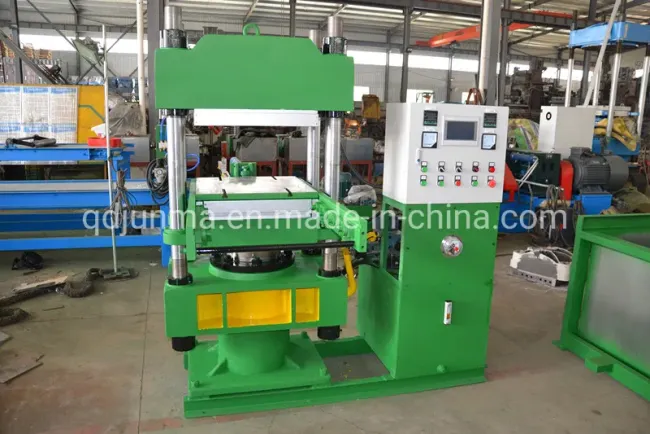

Car Gasket and Wiper Making Machine / Rubber Compression Molding Machine
Basic Information
Model: XLB (Customized)
Automatic Grade: Automatic
Structure: Vertical
Type: Rubber Product Making Machine
Plate Size: 600*600
Total Press: 100 Ton
Plate Distance: 125 mm
Transport Package: Plywood Case Packing
Trademark: SFC
Origin: Qingdao, China
Company Information
- 20 years of experience in vulcanizing press manufacturing and exporting
- Delivery within 35 days
- Safety wood or plywood crates packing
- Full transportation insurance
- Global distribution to 126 countries across 6 continents
- One-stop rubber machinery solutions provider
- CE1282 vulcanizing press quality certified

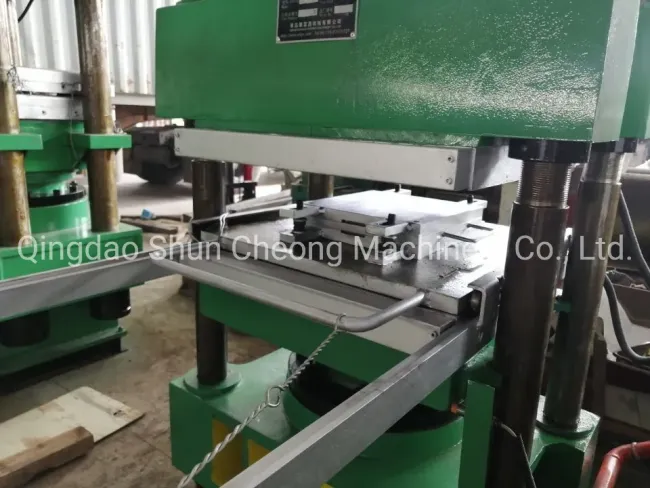

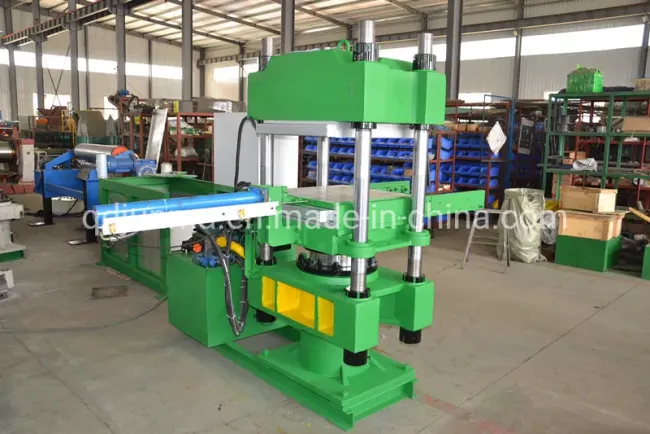

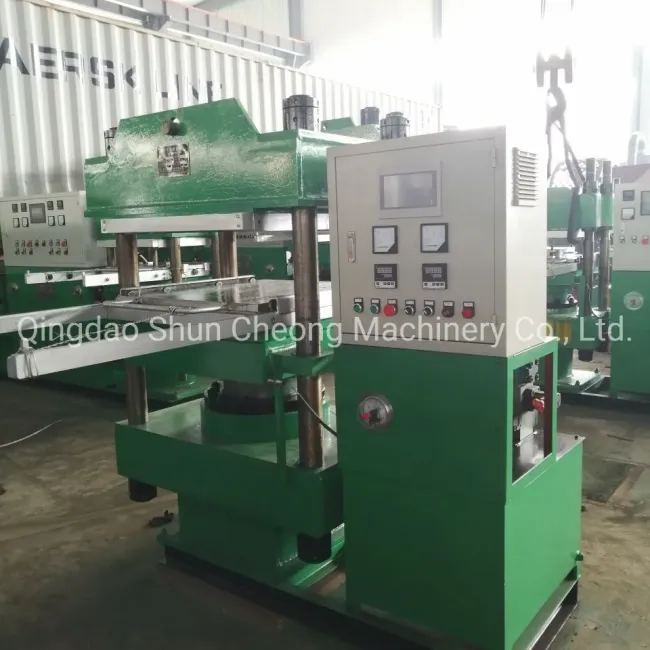

This press features push-pull mold frame, automatic mold opening, easy operation, and improved efficiency with reduced worker time.
Technical Details
- Composed of press plate, upper and lower platforms, piston stroke, hydro-cylinder, hydraulic station, and pillar column
- Hot plates manufactured from 35# steel plates with normalizing treatment and double scale rolling
- Upper and lower platforms use Q235 steel plates with precision automatic cutting, mechanical slicing, and CO₂ gas shielded welding
- Cylinder material: QT500-7 with HT200 piston (alternative: ZG270-500 cylinder with cold hard chilled alloy cast iron piston)
- Sealing structure uses combined double sealing ring and dustproof ring for extended service life
- Assembled oil pump provides power source with manual control for piston movement

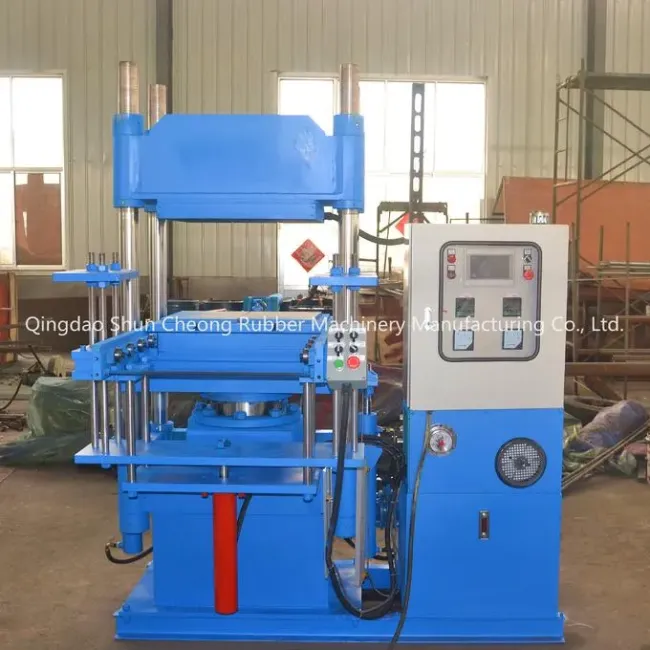

- Electrical control system offers automatic and semi-automatic operation modes with manual override capability
Technical Specifications
We design and manufacture all types of non-standard plate vulcanizing presses according to customer requirements.
| Parameter/Type | XLB240*240*2 | XLB350*350*2 | XLB400*400*2 | XLB500*500*2 | XLB600*600*2/4 | XLB700*700*2 | XLB750*850*2/4 | XLB900*900*2Q |
|---|---|---|---|---|---|---|---|---|
| Total Pressure (MN) | 0.15 | 0.25 | 0.5 | 0.63 | 1.00 | 1.20 | 1.60 | 2.00 |
| Plate Distance (mm) | 125 | 125 | 125 | 125 | 125 | 125 | 200 | 300 |
| Working Layer NO. | 2 | 2 | 2 | 2 | 2-4 | 2 | 2-4 | 2 |
| Unit Pressure (Mpa) | 2.60 | 2.04 | 3.13 | 2.52 | 2.77 | 2.45 | 2.51 | 2.47 |
| Plunger Stroke (mm) | 250 | 250 | 250 | 250 | 250/400 | 250 | 400 | 400 |
| Heating Mode | Electricity | Electricity | Electricity/Stream | Electricity/Stream | Electricity/Stream | Stream | Electricity/Stream | Stream |
| Motor Power (kw) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Size: (L*W*H)(mm) | 1200*350*1300 | 1400*480*1380 | 1600*500*1480 | 1750*600*1540 | 1880*720*1680 | 2000*850*1750 | 2250*1200*2200 | 1400*900*2400 |
Packaging & Quality Assurance

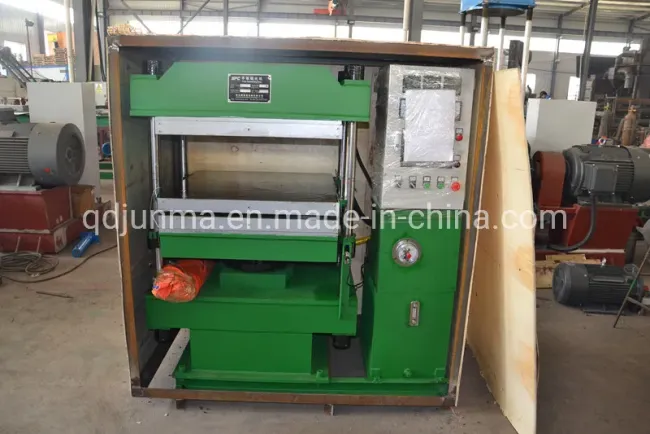

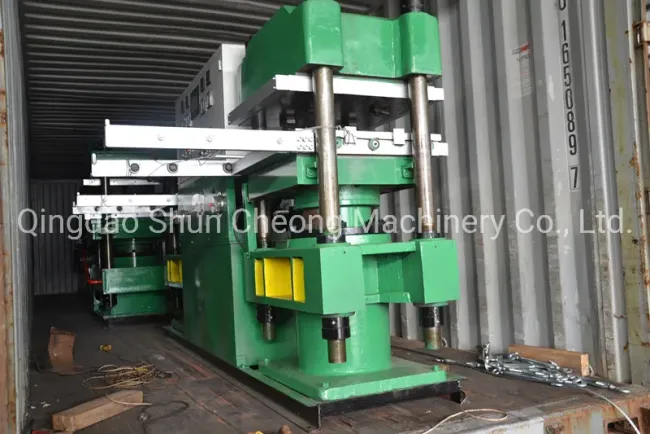

Equipment is painted before delivery, wrapped with stretch film to protect surface finish, and packed in customizable wooden cases. Key components like electronic control boxes receive shockproof packaging. Each machine undergoes 24-hour pressure testing to verify hydro-cylinder bearing capacity, piston stroke, and ensure no oil leakage.
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and thoroughly tested before shipment.
We implement comprehensive quality control throughout production. Every machine is fully assembled and thoroughly tested before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-renowned brand components to ensure optimal machine performance.
One-year quality guarantee. We use world-renowned brand components to ensure optimal machine performance.
Are you able to provide overseas installation and commissioning?
Yes, we offer overseas service and technical support. Small machines typically require 2-3 days installation; large production lines about 30 days (customer covers installation costs).
Yes, we offer overseas service and technical support. Small machines typically require 2-3 days installation; large production lines about 30 days (customer covers installation costs).
How can I trust you to deliver the right machine?
We deliver exactly as discussed and confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency, with proven collaborations with world-renowned rubber manufacturers.
We deliver exactly as discussed and confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency, with proven collaborations with world-renowned rubber manufacturers.
How can we visit your facility?
We're located in Qingdao City, Shandong province, China (Qingdao Jiaodong Airport). We provide airport pickup services.
We're located in Qingdao City, Shandong province, China (Qingdao Jiaodong Airport). We provide airport pickup services.
Our Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress photos provided during manufacturing
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical support: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
- Overseas engineer services and operator training
