PLC Control Hot Plate Vulcanizing Press with 1200x1200mm Platen Size and Pull-Push Device
Price:
US$20,000.00
MOQ:
1 set
Delivery Time:
25-35 days
Brand:
SFC
Product Description

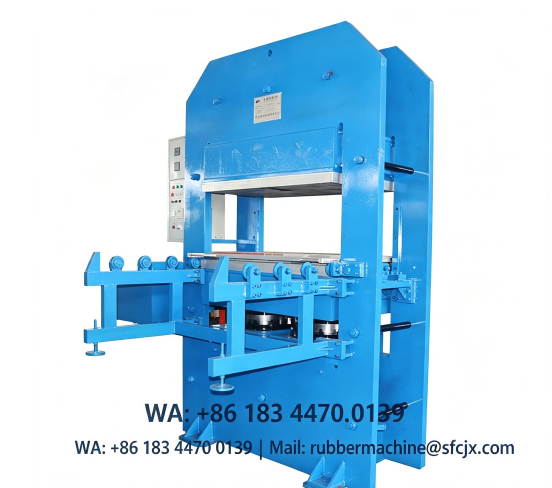

Hot Plate Vulcanizing Press with Pull-Push Device
Automatic rubber vulcanizing press featuring advanced PLC control system and customizable design options for optimal manufacturing performance.
Product Specifications
Model: XLB-DQ1200x1200x1
Platen Size: 1200*1200 mm
Structure: Horizontal
Control Method: Automatic PLC
Piston Stroke: 250 mm (Adjustable)
Production Capacity: 50 Sets/Month
Key Features
- Two electrical platens with one working layer
- Advanced PLC automatic control system
- Customizable height and daylight specifications
- Independent control panel for easy operation
- HT200 hot plates with surface grinding processing
- Plate face parallelism accuracy ±0.05mm, finish 1.0μm
- Pre-wired for immediate operation upon installation
- Available with steam heating or electrical heating options
Technical Parameters
| Type | Total Pressure (MN) | Platen Size (mm) | Daylight (mm) | No of Daylights | Piston Stroke (mm) | Plate Unit Area Pressure (kg/cm²) | Main Motor Power (kw) |
|---|---|---|---|---|---|---|---|
| XLB-DQ1200*1200*2 | 315t | 1200*1200 | 200 | 2 | 400 | 22 | 3 |
| XLB-DQ1300*2000*1 | 560t | 1300*2000 | 400 | 1 | 400 | 21.5 | 8 |
| XLB-Q1200*2500*1 | 750t | 1200*2500 | 400 | 1 | 400 | 25 | 9.5 |
| XLB-Q1500*2000*1 | 1000t | 1500*2500 | 400 | 1 | 400 | 33.5 | 11 |
| XLB-Q2000*3000*1 | 1800t | 2000*3000 | 400 | 1 | 400 | 30 | 26 |
| XLB-Q1400*5700*1 | 2800t | 1400*5700 | 400 | 1 | 400 | 35 | 43.5 |
Quality Assurance & Testing
Every machine undergoes comprehensive 3-7 hour load testing before leaving the factory, ensuring optimal performance and saving customer commissioning time and expenses.
Additional 24-hour pressure testing verifies hydro-cylinder bearing capacity, piston stroke accuracy, and ensures no oil leakage or seepage issues.
After-Sales Service
- One-year comprehensive warranty with free replacement for damaged components
- Professional technical support with English translation via email, Skype, and other communication platforms
- Regular customer follow-up and maintenance tracking through dedicated "customer file" system
- Overseas installation and commissioning services available
- Comprehensive documentation including installation drawings, user guides, and maintenance manuals
- Worker training programs for optimal machine operation
Packaging & Delivery
Equipment is carefully painted, wrapped with protective stretch film, and packaged in standard wooden cases. Critical components like electronic control boxes receive additional shockproof packaging to ensure safe transportation.
