Automatic Rubber Tile Vulcanizing Machine with 4 Working Layers 400X400X45 mm Plate Size and 0.5 MN Total Pressure
Price:
US$4,800.00-20,000.00
MOQ:
1 set
Delivery Time:
25-35 days
Brand:
SFC
Product Description

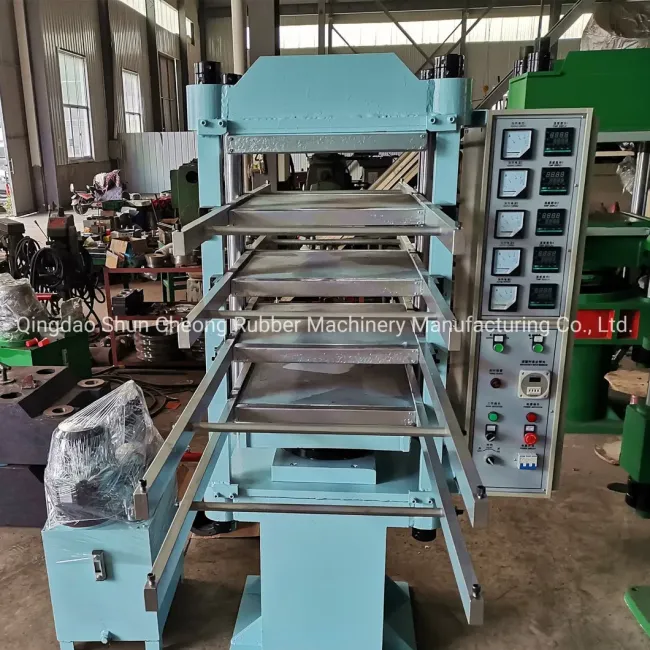

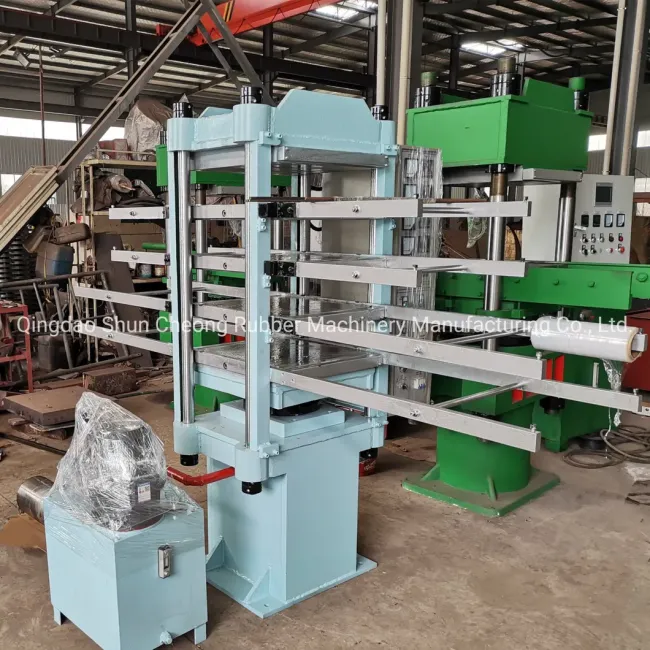

Sports Floor Tile Production Line
Automatic rubber tile vulcanizing press for manufacturing high-quality sports floor tiles and rubber bricks with customizable specifications.
Product Specifications
Model: XLB-400x400x4
Certifications: CE, ISO, SGS
Condition: New
Automatic Grade: Automatic
Structure: Horizontal
Total Pressure: 0.5 MN
Plate Size: 400*400*45 mm
Plate Clearance: 125 mm
Daylight Number: 4
Overall Size: 1400*550*1500 mm
Production Capacity: 50 Sets/Year
Export Markets: Global

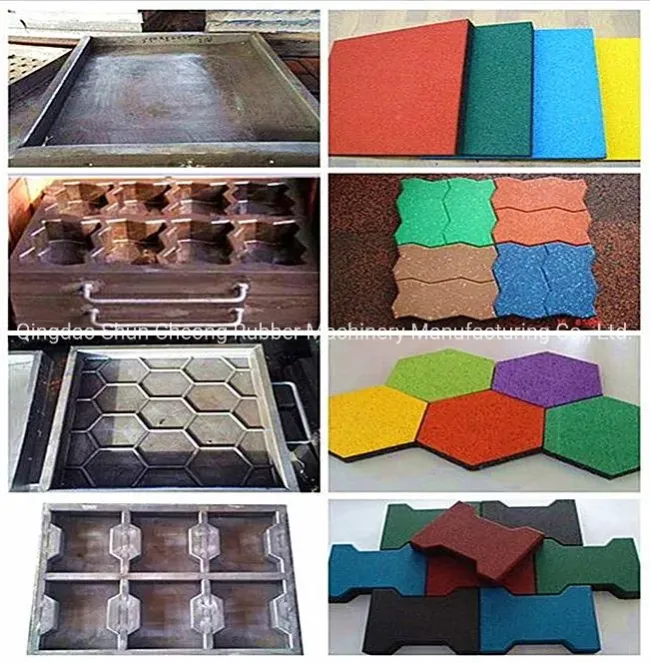

Product Images
Key Features & Benefits
- ISO 9001:2015, CE, and SGS certified for quality assurance
- Oil-free operation prevents contamination and maintenance issues
- Heat-resistant rubber production capability
- Customizable tonnage and size according to customer requirements
- One-year comprehensive warranty included
- 4 working layers producing 8 rubber floor pieces per hour
- Manual push-out device for easy product removal
- Compatible with molds from 20mm to 75mm thickness

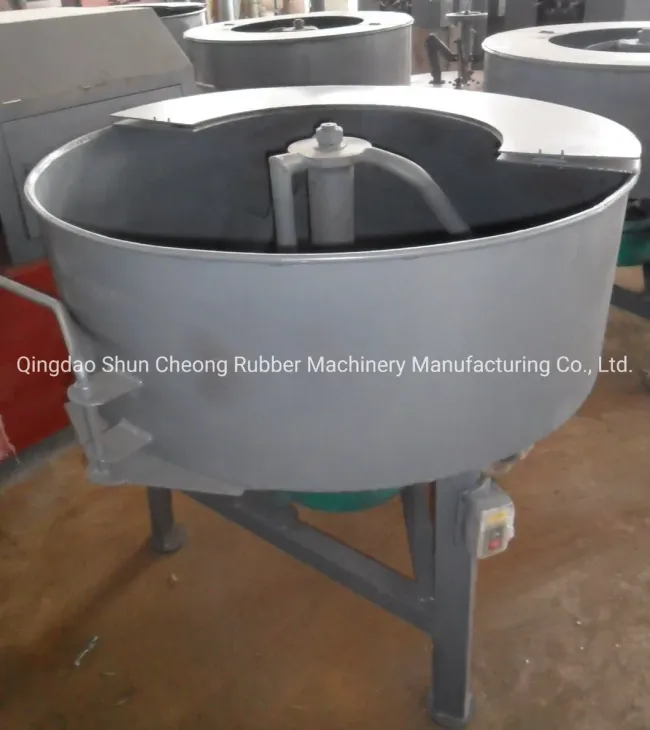

- Optional rubber mixer available
- Compact footprint (8m³) for cost-effective shipping
- Non-standard designs available upon request
Technical Specifications Table
| Model | XLB-350X350X1(2) | XLB-400X400X2(4) | XLB-550X550X2(4) | XLB-650X650X2(4) | XLB-750X850X2(4) |
|---|---|---|---|---|---|
| Nominal Pressure (MN) | 0.25 | 0.50 | 0.60/0.80 | 1.00 | 1.60 |
| Plate Size (mm) | 350*350 | 400*400 | 550*550 | 650*650 | 750*850 |
| Plate Clearance (mm) | 125 | 125 | 125 | 125 | 125 |
| Working Layer Number | 1(2) | 2(4) | 2(4) | 2(4) | 2(4) |
| Plate Unit Pressure (Mpa) | 1.56 | 3.1 | 3.2 | 2.8 | 2.5 |
| Dimensions L*W*H (mm) | 1200*400*1300 | 1400*550*1500 | 1650*600*1600 | 1410*680*1750 | 1900*950*2000 |
| Weight (kg) | 800 | 1300 | 1500 | 3500 | 6500(7500) |
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a high-tech backbone enterprise specializing in rubber machinery production. Located in Huangdao New District, Qingdao City, the company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range
Our products serve multiple industries including tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbishing, and waste tire recycling. Main equipment includes Rubber Kneaders, Rubber Mixing Machines, Rubber Vulcanizing Presses, Batch Off Coolers, Rubber Calenders, Waste Tire Crushers, Rubber Extruders, and Rubber Strainers.
Global Reach
Our products are exported to over 50 countries including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning consistent praise and long-term cooperation from domestic and international customers.
Quality Commitment
- All components undergo strict quality inspection before storage
- Comprehensive pre-shipment testing including 24-hour pressure testing at 1.25* rated working pressure
- Free technical support for all products
- 3-year warranty on main parts, 1-year on wearing parts
- Remote support followed by on-site repair if needed
- Factory visits available for consultation and demonstration

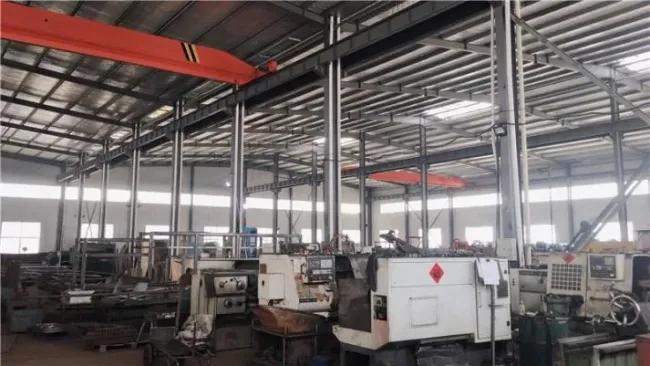

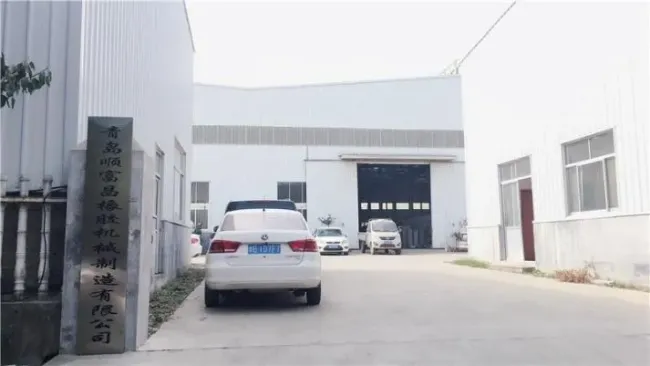

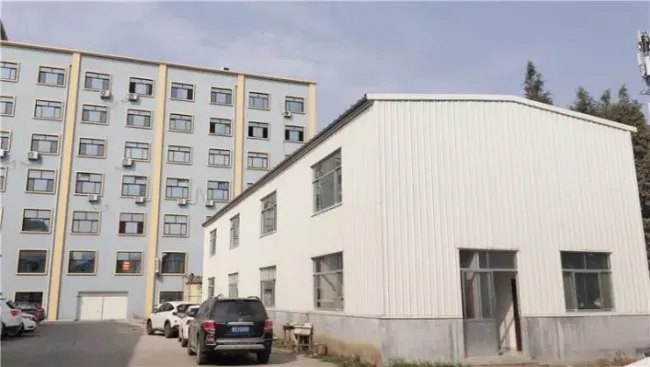

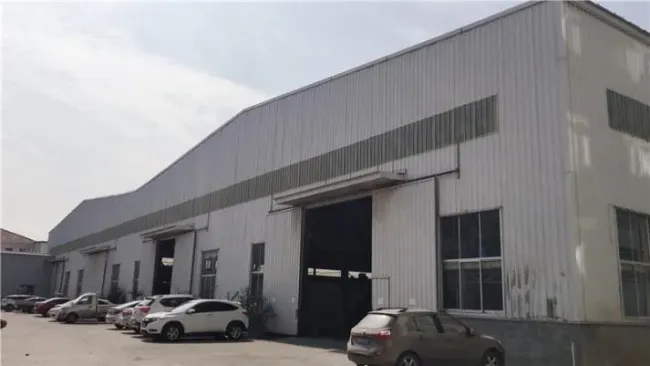

Factory & Certification Images

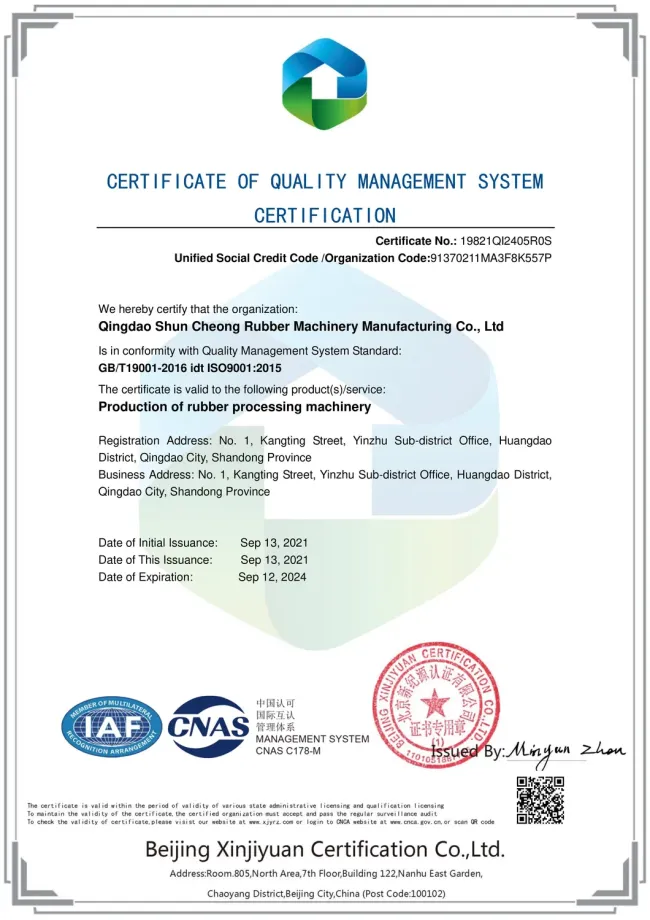

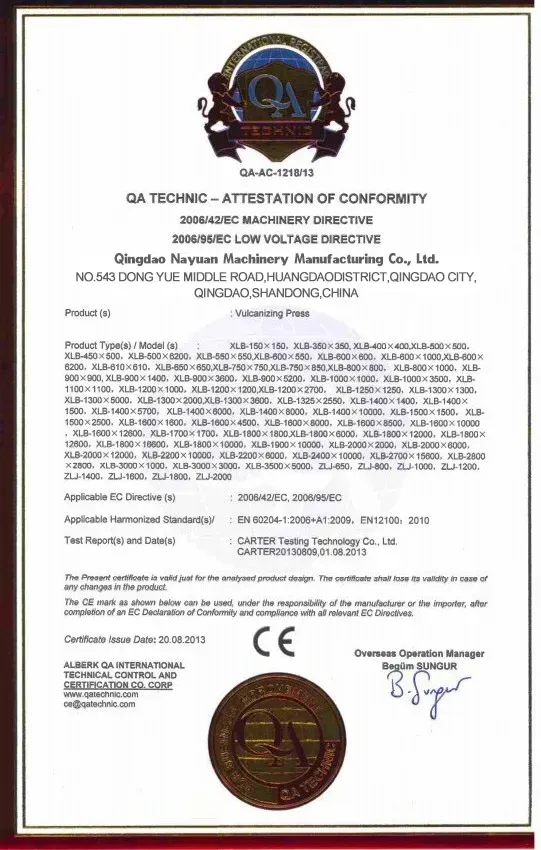

Certifications
Customer Service
- Custom machine design with engineering drawings for customer confirmation
- Production progress photos provided during manufacturing
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical drawings, installation guides, user manuals, and maintenance documentation
- Overseas engineer services and operator training available
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout the entire production process. Every machine is fully assembled and rigorously tested before shipment to ensure optimal performance.
What's the machine quality guarantee?
We provide a one-year quality guarantee. Our machines use world-famous brand components to maintain perfect working condition and long-term reliability.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas installation and technical support services. Small machines typically require 2-3 days for installation, while large production lines may take approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We are committed to delivering exactly what was discussed and confirmed in your order. Our company culture is built on innovation, quality, integrity, and efficiency, and we have established strong relationships with world-renowned rubber production manufacturers.
How can we visit your factory?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting customers.
