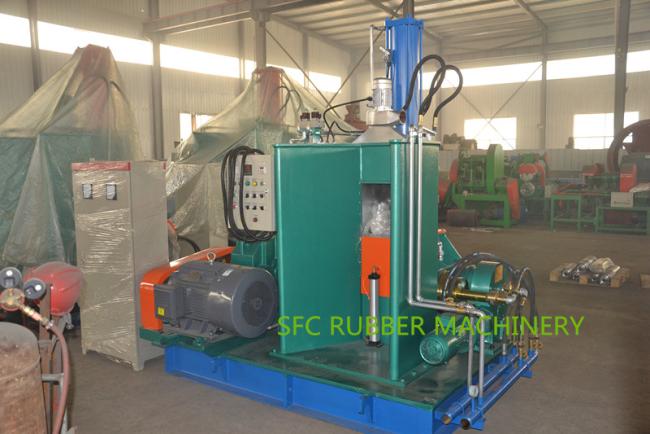

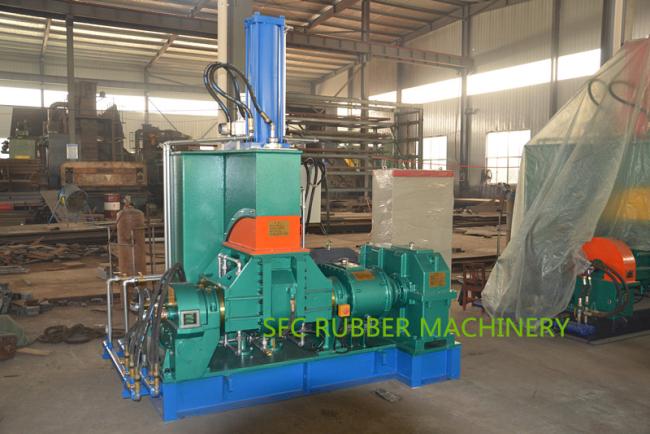

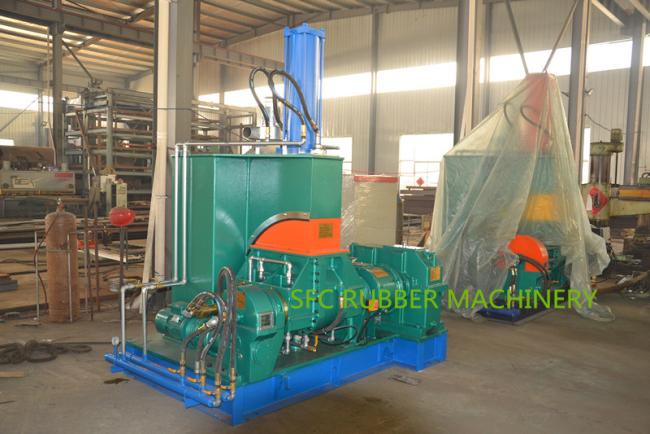

Eco Rubber Kneading Machine For Oil Seal Making Compound
Economically Rubber Kneader with back door feed for Oil Seal Making Compound
Usage:
The machine is applicable for plasticating and mixing rubber and plastics,and also applicable for mixing or kneading sticky materials.
Features:
1. Mixing chamber tilting type: Hydraulic or motor drive
2. Rotor: Two-wing/blade or four-wing/blade rotor
3. Rotor surface: Plated with hard chrome, and polished treatment without any stick for rubber material
4. Rotor shafts end sealing: With good quality sealing and reasonable design
5. Gearbox reducer: Use qualified and famous brand
6. PLC control: Omron brand or as requested by customer
7. Dust collector: Available by requirement
Advantages:
1. Reasonable design, tightly construction, occupying small area, installing convenience.
2. High efficiency of production,
3. Easy to operate.
4. Easy for cleaning the mixing chamber and replacing color material. The mixing chamber adopts close construction. Cooling & heating system is good.
Rubber Kneader Parameter:
| Model |
X(S)N- 3x32 |
X(S)N- 5x32 |
X(S)N- 10x32 |
X(S)N- 20x32 |
X(S)N- 25x32 |
X(S)N- 35x30 |
X(S)N- 55x30 |
X(S)N- 75x30 |
X(S)N- 110x30 |
X(S)N- 150x30 |
X(S)N- 200x30 |
|
Total Volume Of Mixing Chamber(L) |
8 | 15 | 25 | 45 | 55 | 75 | 125 | 170 | 250 | 325 | 440 |
|
Working Volume Of Mixing Chamer(L) |
3 | 5 | 10 | 20 | 25 | 35 | 55 | 75 | 110 | 150 | 200 |
|
Driving Motor Power(KW) |
5.5 | 11 | 22 | 37 | 37 | 55 | 75 | 110 | 185 | 220 | 280 |
| Tilting Motor Power(KW) | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 11 | 11 |
| Tilting Angle(°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 135 | 135 |
|
Rotating Speed of Rotor(Front/Rear) (r/min) |
32/24.5 | 32/23.5 | 32/25 | 32/27 | 32/24.5 | 30/24.5 | 32/24.5 | 32/24.5 | 32/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Cooling Water(MPA) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Overall Dimension (LxWxH)(mm) |
2000x 1000x 2220 |
1850x 1200x 2280 |
2450x 1650x 2350 |
2675x 1650x 2560 |
2675x 1650x 2560 |
3200x 1900x 2950 |
3230x 1927x 2958 |
3325x 2615x 3105 |
4075x 2712x 3580 |
4250x 2750x 4106 |
4250x 3400x 4215 |
| Gross Weight(T) | ~2 | ~2.1 | ~2.1 | ~4 | ~4.5 | ~6.3 | ~7.1 | ~9.5 | ~14.9 | ~19.5 | ~22.5 |
Our Services:
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
