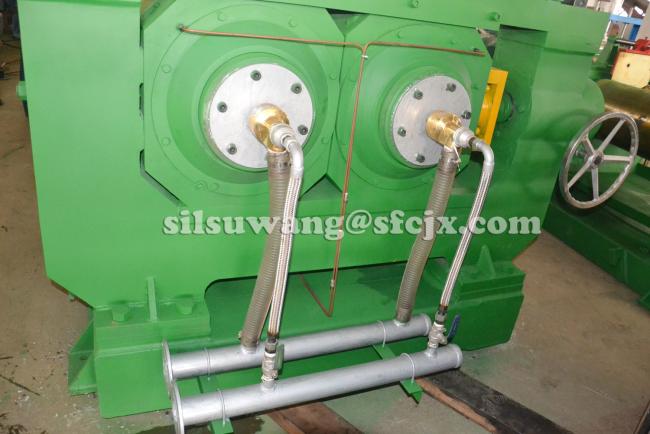

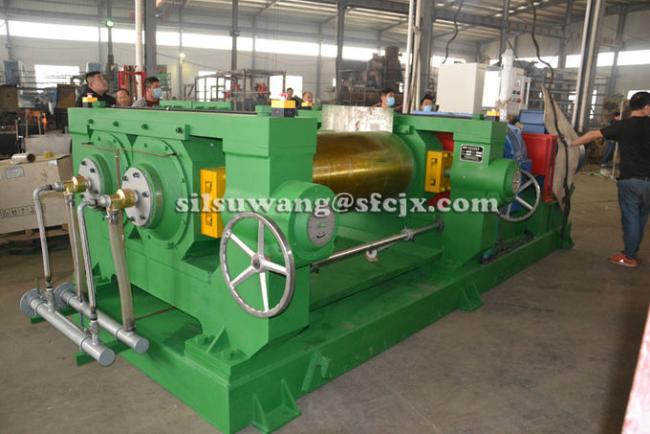

22" Peripherally Roller Bearing Lubrication Rubber Mixing Machine 2 Roll
22" Peripherally Roller Bearing Lubrication Two Roll Rubber Mixing Machine
Technical Parameters:
| Item | XK-160 | XK-230 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-550B | XK-660 | |
| Working Diameter of rolls (mm) | 160 | 230 | 250 | 300 | 360 | 400 | 450 | 560/510 | 550 | 660 | |
| Working Length of Rolls (mm) | 320 | 600 | 620 | 750 | 900 | 1000 | 1200 | 1530 | 1500 | 2130 | |
| Front Roll Surface Speed (m/min) | 8.95 | 10.21 | 14.1 | 15.1 | 16.25 | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 | |
| Friction Ratio | 1:1.35 | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.25 |
1:1.27 |
1:1.2 | 1:1.22 | 1:1.24 | 1:1.09 | |
| Max. nip (mm) | 4.5 | 7 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | |
| Capacity per Batch(kg) | 1-2 | 6-10 | 8~15 | 15~20 | 20~25 | 18-35 | 25-50 | 35~50 | 50~60 | 165 | |
| Motor Power (kw) | 5.5 | 15 | 18.5 | 22 | 30 | 37 | 55 | 90 | 110 | 245 | |
| Dimensions (mm) | L | 1380 | 2800 | 3400 | 3400 | 3780 | 4350 | 5200 | 5845 | 5870 | 7465 |
| W | 860 | 1200 | 1500 | 1500 | 1850 | 1850 | 2380 | 2284 | 2475 | 3662 | |
| H | 1320 | 1120 | 1500 | 1550 | 1750 | 1785 | 1840 | 1978 | 2045 | 2080 | |
USE:
This rubber mixing machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating), Raw Rubber and Compound mixing, rubber warm-up mixing and pressing sheet.
Our Services
Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
In the process of production, we will take photos and send to customers for their track the progress.
Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
We supply overseas engineer service and help to train your workers to operate the machine.
Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
