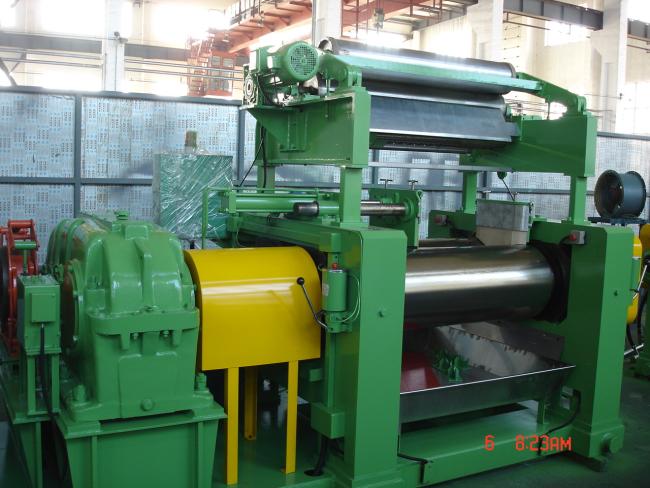

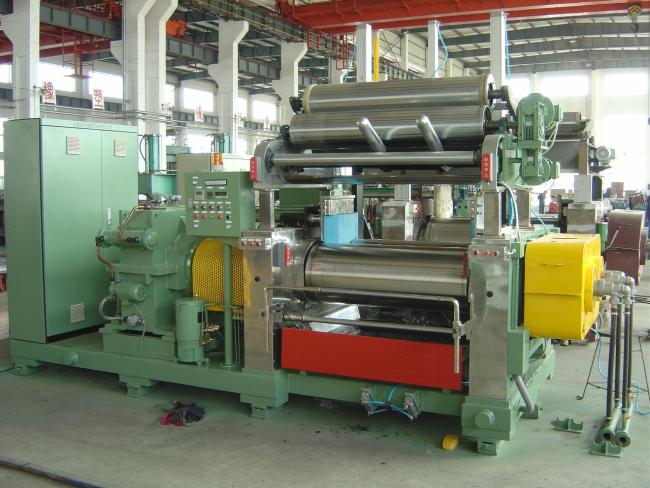

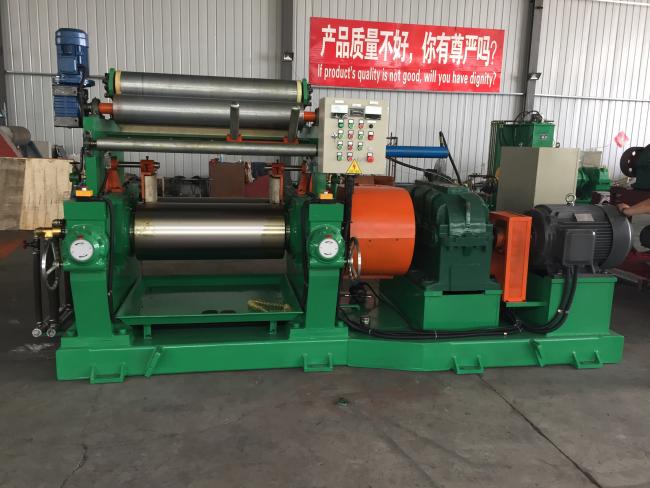

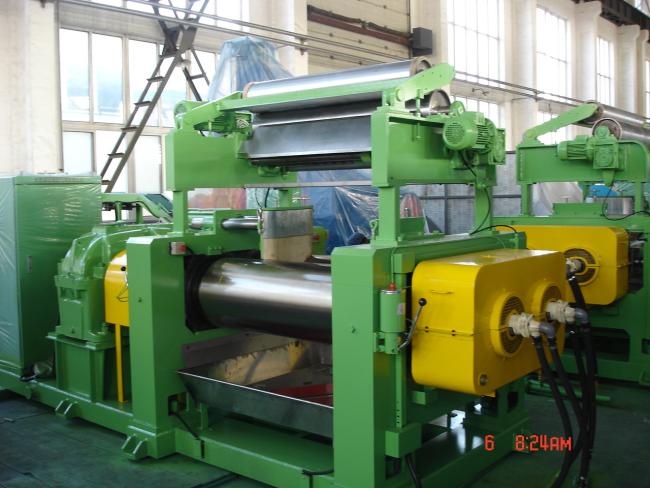

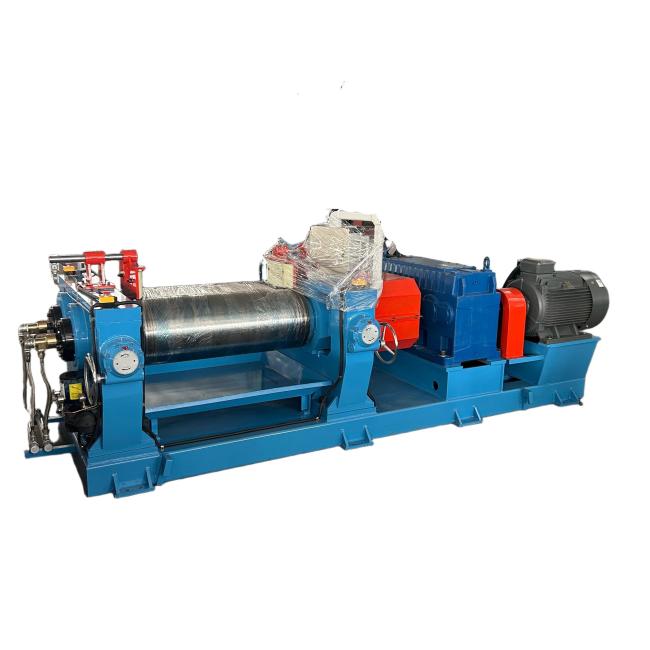

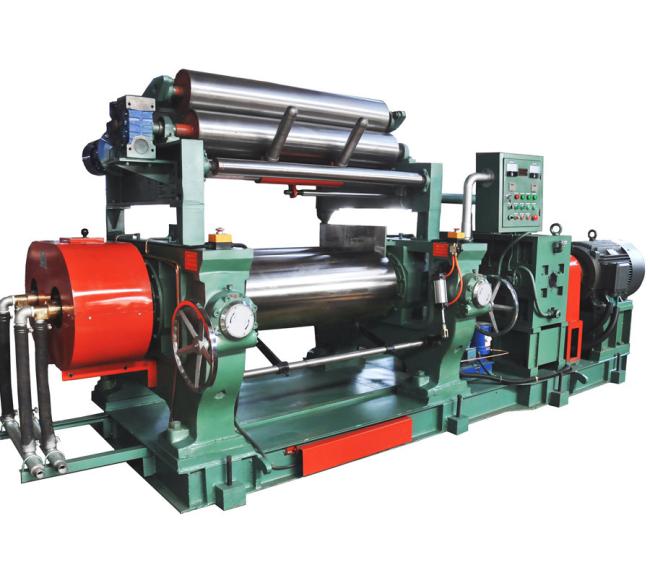

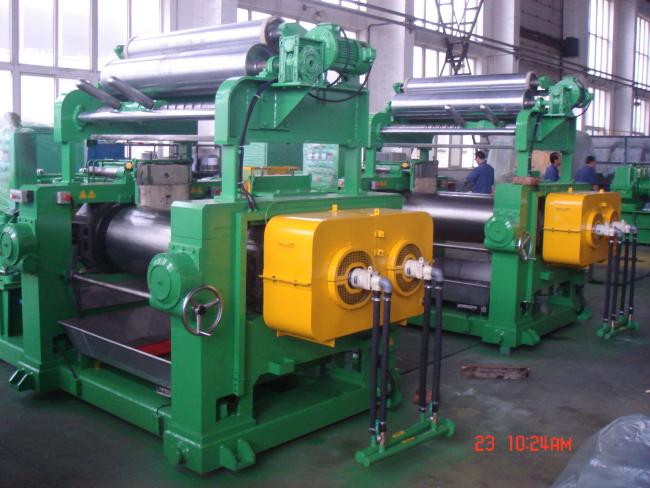

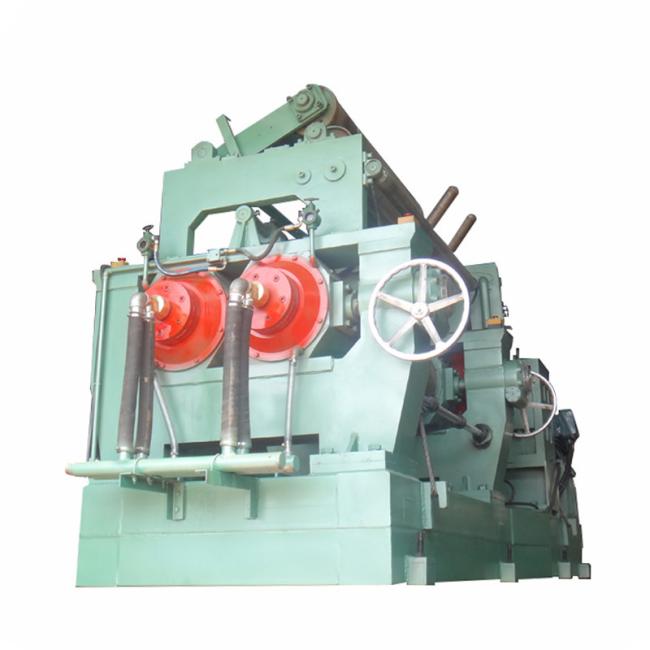

XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
- Roller Material: Chilled Alloy Cast Iron
- Gear Material Hardness: 65-70 HRC
- Cooling System: Water Cooling
- Control Mode: Manual or automatic optional
- Compact Structure, Low noise
- Roll gap adjustment adopts manual or electric mode, with high precision and sensitivity
- Optional configuration: oil heating and cooling system, AC double frequency conversion speed regulation system, independent stepless speed change of each drum, automatic adjustment of drum clearance, man-machine interface
- The equipment can be customized according to customer requirements to meet customer parameter requirements
- Superior Mixing Performance
- Low Operating Cost with High Productivity
- Compact Construction, maximum Floor Utilization
- Latest Technology Update, Meets Current World Standards
- Maintenance Free
- Reliable and Experienced Service Back Up
- Easy to Install & Ready to Run
- No continuous Lubrication hence heavy saving on lubrication cost, wear & tear and maintenance
- Auto reversing electric Panel
- Simple & easy maintenance
| Model | XK-230 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-550B | XK-660 |
|---|---|---|---|---|---|---|---|---|---|
| Working Diameter of rolls (mm) | 230 | 250 | 300 | 360 | 400 | 450 | 560/510 | 550 | 660 |
| Working Length of Rolls (mm) | 600 | 620 | 750 | 900 | 1000 | 1200 | 1530 | 1500 | 2130 |
| Front Roll Surface Speed (m/min) | 10.21 | 14.1 | 15.1 | 16.25 | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
| Friction Ratio | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.25 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 | 1:1.09 |
| Max. nip (mm) | 7 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
| Capacity per Batch(kg) | 6-10 | 8-15 | 15-20 | 20-25 | 18-35 | 25-50 | 35-50 | 50-60 | 165 |
| Motor Power (kw) | 15 | 18.5 | 22 | 30 | 37 | 55 | 90 | 110 | 245 |
| Dimensions L (mm) | 2800 | 3400 | 3400 | 3780 | 4350 | 5200 | 5845 | 5870 | 7465 |
| Dimensions W (mm) | 1200 | 1500 | 1500 | 1850 | 1850 | 2380 | 2284 | 2475 | 3662 |
| Dimensions H (mm) | 1120 | 1500 | 1550 | 1750 | 1785 | 1840 | 1978 | 2045 | 2080 |
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a Chinese manufacturer established in 2007, with over 10 years of experience in making various rubber machines. We have passed ISO 9001:2008, SGS, and CE certifications.
Our factory specializes in rubber kneader/rubber mixing mill; various plate vulcanizing presses; 2 roll/3 roll/4 roll rubber calenders; rubber batch off coolers; waste tire recycling lines; reclaimed rubber production lines; conveyor belt production lines; rubber seals extruding & vulcanizing lines, etc.
Market: Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka and many other countries and regions.
- Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
- In the process of production, we will take photos and send to customers for their track the progress.
- Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
- We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
