CE/ISO9001 Certified Rubber Plate Vulcanizing Machine with 1.00 MN Total Pressure and 125mm Daylight for Rubber Sole
This advanced rubber plate vulcanizing machine is designed for vulcanizing various rubber products, particularly rubber soles. It serves as an efficient hot pressing equipment for processing thermosetting rubber materials.
- Three heating methods available: electric heating, steam heating, and heat transfer oil heating
- Movable template features fast ascent, slow locking, and fast descending functions
- Adjustable mold closing and exhaust speeds for improved production efficiency
- Programmable settings for deflation time, deflation cycles, heating temperature, and vulcanization time
- Automatic pressure compensation function and oil pump delay stop feature

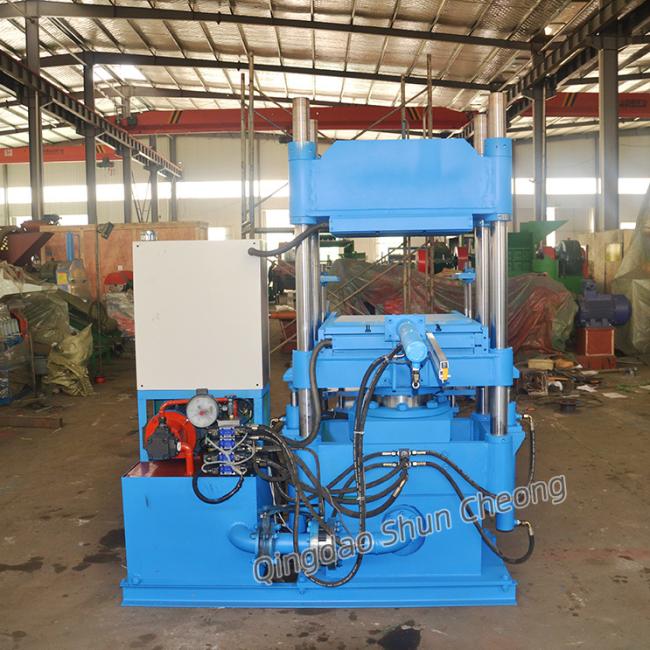

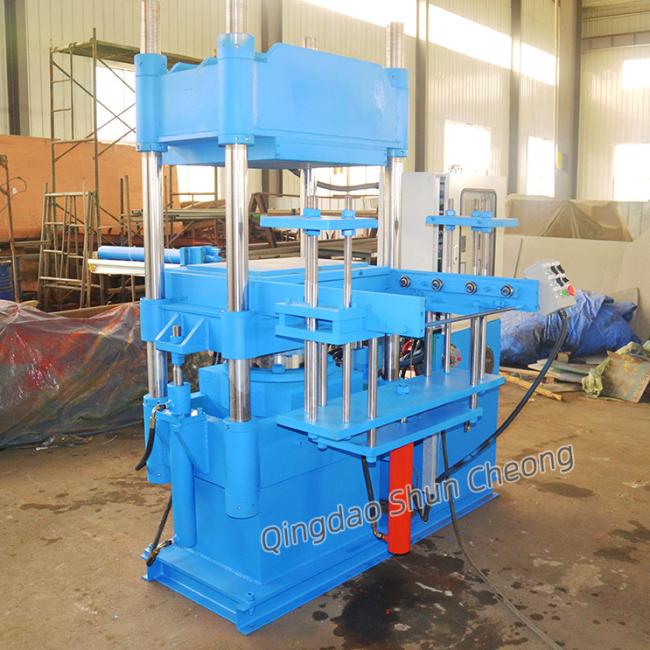

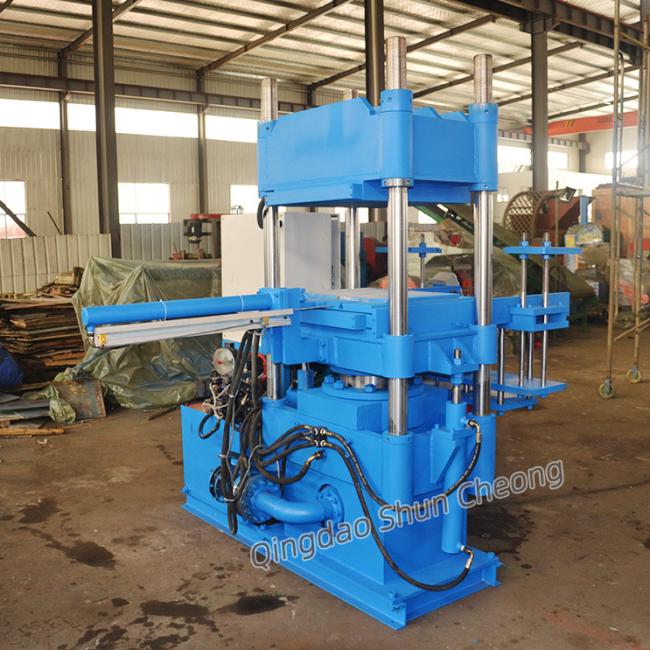

- Column structure design comprising main machine, hydraulic station, and electric control cabinet
- Includes automatic mold pushing-out and compulsory mold opening devices
| Model | XLB-350×350×1/4 | XLB-400×400×1/4 | XLB-500×500×1/4 | XLB-600×600×1/4 | XLB-700×700×1/4 | XLB-750×850×1/4 | XLB-900×900×2 |
|---|---|---|---|---|---|---|---|
| Total Pressure (MN) | 0.25 | 0.5 | 0.63 | 1.00 | 1.20 | 1.60 | 2.00 |
| Plate Distance (mm) | 125 | 125 | 125 | 125 | 125 | 200 | 300 |
| Working Layer No. | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 | 2 |
| Unit Area Pressure of Hot Plate (Mpa) | 2.04 | 3.13 | 2.52 | 2.77 | 2.45 | 2.51 | 2.47 |
| Plunger Stroke (mm) | 250 | 250 | 250 | 250/400 | 250 | 400 | 400 |
| Heating Mode | Electricity | Electricity / Stream | Electricity / Stream | Electricity / Stream | Stream | Electricity / Stream | Stream |
| Motor Power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Size (L×W×H) (mm) | 1400×480×1380 | 1600×500×1480 | 1750×600×1540 | 1880×720×1680 | 2000×850×1750 | 2250×1200×2200 | 1400×900×2400 |
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a high-tech backbone enterprise specializing in rubber machinery production. Located at Kangting Road No. 1, Huangdao New District, Qingdao City, the company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range: Our equipment serves tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbishing, and waste tire recycling industries.
Main Equipment: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, and Rubber Strainer.
Global Reach: Our products are exported to over 50 countries including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, and throughout Central Asia, earning consistent customer praise and long-term cooperation.
- All components undergo strict quality inspection before storage
- Comprehensive pre-shipment testing including 24-hour pressure testing at 1.25 times rated working pressure for Plate Vulcanizing Press
- Free technical support for all products
- 3-year warranty for main parts, 1-year warranty for wearing parts
- Custom machine design with engineering drawings for customer confirmation
- Production progress updates with photos during manufacturing
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical documentation: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
We implement comprehensive quality control throughout the entire production process. Every machine undergoes full assembly and rigorous testing before shipment.
We provide a one-year quality guarantee and use world-renowned brand components to ensure optimal machine performance and reliability.
Yes, we provide overseas installation services and technical support. Small machines typically require 2-3 days for installation, while large production lines may take approximately 30 days.
Our company culture is built on innovation, quality, integrity, and efficiency. We have established partnerships with world-renowned rubber production manufacturers and welcome factory visits to demonstrate our capabilities.
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong International Airport. We provide airport pickup services for visiting clients.
