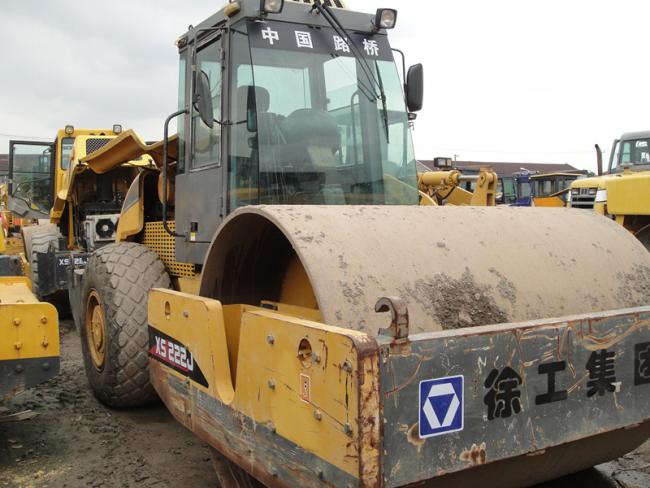

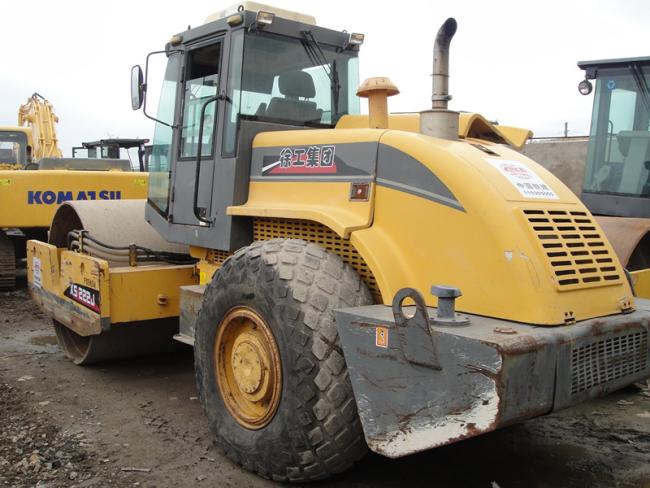

22000kg 30% Gradeability XCMG XS222J Second Hand Road Roller

Brand: XCMG
Model: XS222J

Operating weight (kg) 22000
Weight on front drum (kg) 10000
Static linear load N/cm 516
Speed range (km/h)
Speed I 2.63
Speed II 5.3
Speed III 8.6
Theoretical gradeability ( %) 30
Min. external turning radius (mm) 6500
Steering angle ° ±33
Oscillating angle ° ±10
Vibration frequency (high/low) Hz 33/28
Nominal amplitude (high/low) mm 1.86/0.93
Excitation force (high/low amplitude) kN 374/290
Drum diameter (mm) 1600
Drum width (mm) 2130
Engine model Shanghai Diesel Engine D6114ZG11B
Rated power @2000 r/min kW 136
Engine oil consumption g/kW.h 223
Hydraulic oil tank capacity L 170
Fuel tank capacity L 240

READY TO WORK
VIBRATION GOOD
3 YEARS WARRANTY

ALSO XCMG 20 TON YZ20JC 2011

XCMG 22TON XS222J 2012

DYNAPAC 12TON CA25, 14TON CA30 2002

MOMAG BW217D COMPACTOR

Our Service:
Book hotel before visiting, pick you up in airport, guide you travel around Shanghai when you are free.
More than 10 years experience to dealing with all types of used engineering machinery and shipment service all over the world.

3 Years warranty for engine and pump.
