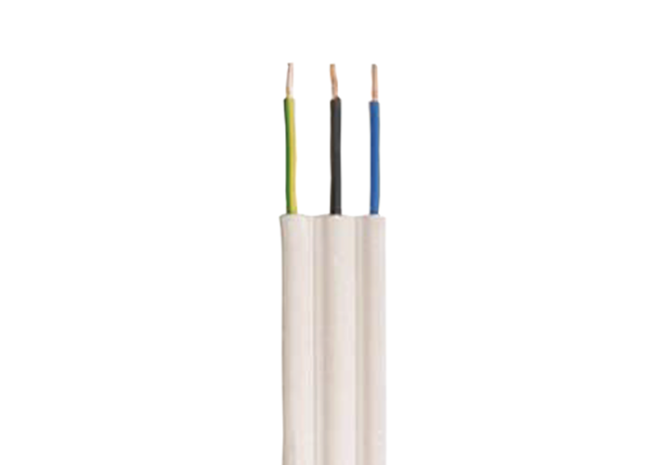

Low Voltage Copper Conductor PVC Insulated Cables For Plaster
Low Voltage Copper Conductor PVC Insulated Cables For Plaster
Application
For permanent installation in dry environment in and under plaster. The product corresponds to the directive 2006/95/EG (low voltage directive).
Construction
Copper conductor: plain, solid, acc. to VED 0295
Insulation: PVC
Core identification: acc. to VDE 0293
Stranding: cores laying parallel next to each other
Outer sheath:
NYIFY: PVC compound YM1
NYIF: rubber compound
IYYFI-J/O: PVC-sheath
Technical data
Nominal voltage
NYIFY/NYIF: U0/U 230/400V
IYYFT-J/O: U0/U 300/500V
Test voltage: 2000V
Temperature range
Flexing 5℃~70℃
Fixed installation -30℃~70℃
Minimum bending radius
Fixed installation 15x cable diameter
| Section mm2 | Copper content kg/km | Section mm2 | Copper content kg/km |
| NYIFY-J | NYYFL-J | ||
| 3*1.5 | 43.0 | 3*1.5 | 43.0 |
| 4*1.5 | 58.0 | ||
| 5*1.5 | 72.0 | ||
| NYIF-J | |||
| 2*1.5 | 29.0 | 3*2.5 | 72.0 |
| 3*.15 | 43.0 | 4*2.5 | 96.0 |
| 5*2.5 | 120.0 | ||
| NYIF-J | IYYFL-O | ||
| 3*1.5 | 43.0 | 2*1.5 | 29.0 |
| 4*1.5 | 58.0 | ||
| 5*1.5 | 72.0 | 2*2.5 | 48.0 |
| 3*2.5 | 72.0 | ||
| 5*2.5 | 120.0 |
