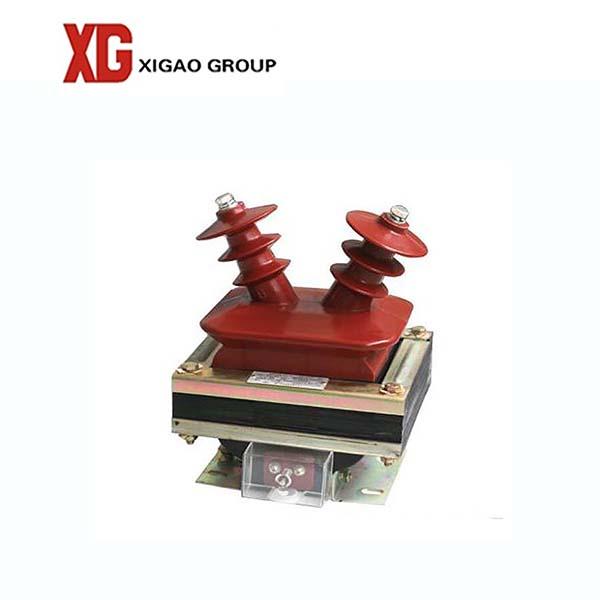

JDZ-10Q 3KV 6KV 10kV Cast Resin Single Phase Potential Transformer
1. JDZ-10Q Type 3KV 6KV 10kV Indoor Cast Resin CT Current Transformer voltage tranformer
Installation position: indoor type;
ambient temperature: -5~+40°c;
altitude: not over 1000m;
no caustic gas, smoke and no dust of transmitting electricity character and blast at installation place;
no smart mechanism vibration in the installation site;
relative humidity: average relative humidity in the installation of every month is no more than 90%; average relative humidity pf every day is no more than 95%.
| model |
Rated voltage ratio (KV) |
Accurate or accurate combination |
Rated secondary output (VA) |
Thermal limit output (VA) |
Rated insulation level (KV) |
Wiring diagram |
Surface creepage distance (mm) |
Weight (Kg) |
| JDZ-3 | 3/0.1,3/0.22 |
0.2 0.5 1 3 |
30 80 150 300 |
500 | 3.6/25/40 |
Figure 1-2 |
300 | 26 |
| JDZ-6 | 6/0.1,6/0.22 | 7.2/32/60 | ||||||
| JDZ-10 | 10/0.1,10/0.22 | 12/42/75 | ||||||
| JDZ-3 | 3/0.1/0.1(0.22) |
0.2/0.2 0.2/0.5 0.5/0.5 0.2/3 0.5/3 |
15/15 15/20 30/30 30/300 80/300 |
300 | 3.6/25/40 |
Figure 3-4 |
||
| JDZ-6 | 6/0.1/0.1(0.22) | 7.2/32/60 | ||||||
| JDZ-10 | 10/0.1/0.1(0.22) | 12/42/75 |
