550-2700 MHz Directional Coupler N Female PIM -150 / -155 / -161 / -165
550-2700MHz Directional Coupler N Female PIM -150 / -155 / -161/-165
Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.
| Part Number | VN-DC-05527-ON | |||||
| Operating Frequency ( MHz ) | 550-2700 | |||||
| Impedance ( Ohm ) | 50 | |||||
| VSWR | ≤1.25 | |||||
| Coupling (dB) | ± 0.9 | ± 0.9 | ± 0.9 | ± 1.1 | ± 1.5 | ± 1.5 |
| Insertion Loss (dB) | ≤2.2 | ≤1.7 | ≤1.3 | ≤0.8 | ≤0.4 | ≤0.2 |
| Isolation (dB) | ≥25 | ≥26 | ≥27 | ≥30 | ≥35 | ≥40 |
| IM3 (dBc @ 2×43dBm) | -150 / -155 / -161/-165 | |||||
| Application | Indoor & Outdoor | |||||
| Degree of Protection | IP65 | |||||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | |||||
| Interface | N Female | |||||
| Handling Power (Watt, max) | 300 | |||||
| Peak Power (Watt, max) | 1200 | |||||

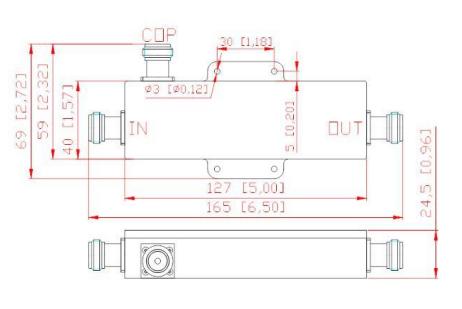

| Dimension (mm)(L×W×H, excl connector) | 127 × 40 × 24.5 | |||||
| Net Weight (g) | 350 ± 20 | |||||
| Packing Dimensions (mm,L×W×H) | 180 × 75 × 30 | |||||
| Packing Carton Size (mm,L×W×H) | 400 × 380 × 170 | |||||
| ROHS Compliance | Yes | |||||
| Revision | R1 | |||||
