Profiling 1.0mm Spiral End Mill For Mild Steel
50 degree Flat carbide end mill, 4flute milling cutter, tungsten carbide end mill cutting tools
There are 2 flute(for key slot milling), 3 flute(for aluminum or copper milling), 4 flute(general milling), 6 flute(special application most in customize) flat end mills. 4 flute flat end mill is the most general flat end mills.
For milling workpiece of which hardness is below HRC 50degree, carbide grade BT45 is applied as raw material(ground carbide rod), BT45 has below physical characters:
| Grade | Co% | Grain Size | Density (g/cm) | Hardness(HRA) | TRS N/mm2 | Application |
| BT45 | 10 | 0.8 | 14.4 | 91.7 | 4400 | For general drill bit, end mill and punching die |
Popular standard size:
| Cutting diameter | Shank dia. | Overall length | Flute |
| 1.0mm | 4mm | 50mm | 4 |
| 1.5mm | 4mm | 50mm | 4 |
| 2.0mm | 4mm | 50mm | 4 |
| 2.5mm | 4mm | 50mm | 4 |
| 3.0mm | 3mm | 50mm | 4 |
| 3.0mm | 4mm | 50mm | 4 |
| 3.5mm | 4mm | 50mm | 4 |
| 4.0mm | 4mm | 50mm | 4 |
| 5.0mm | 5mm | 50mm | 4 |
| 5.0mm | 6mm | 50mm | 4 |
| 6.0mm | 6mm | 50mm | 4 |
| 8.0mm | 8mm | 60mm | 4 |
| 10.0mm | 10mm | 75mm | 4 |
| 12.0mm | 12mm | 75mm | 4 |
| 14.0mm | 14mm | 100mm | 4 |
| 16.0mm | 16mm | 100mm | 4 |
| 18.0mm | 18mm | 100mm | 4 |
| 20.0mm | 20mm | 100mm | 4 |
Coating color: Bronze as below

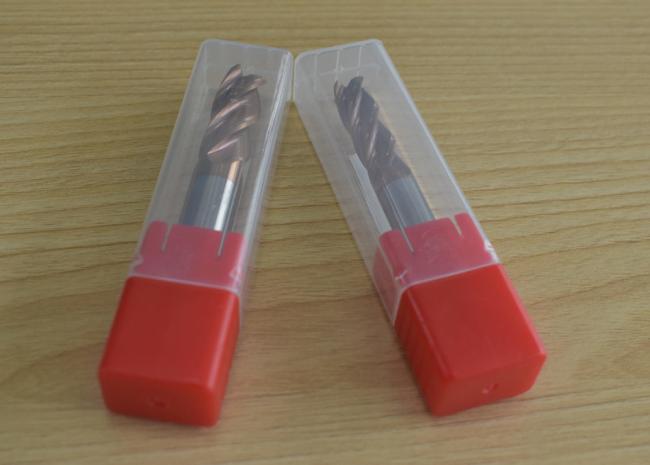

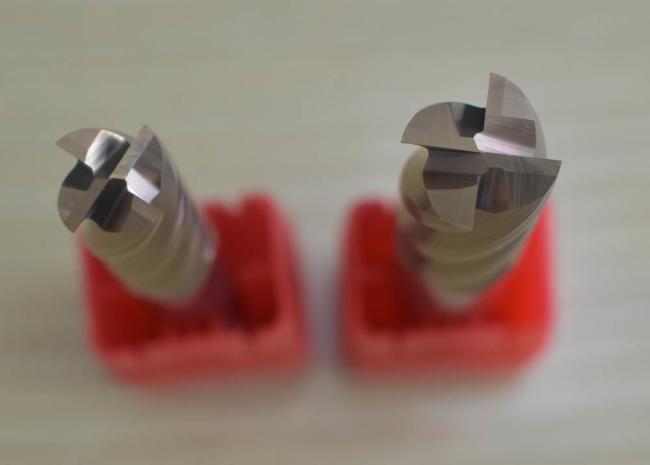

product pictures:
What is Carbide ?
Carbide is one of the hardest material to be found and has amazing wear resistance capabilities that make it ideal for the many tasks it performs .Not only is it very hard ,but it is able to withstand a great deal of abrasion,which enables the carbide cutting tools to outperform other material .All our end mills are produced from solid carbide material .
Please Contact Us for Further Details.
