100mm HRC58 Solid Carbide End Mill For Stainless Steel
Solid carbide end mill for stainless steel, 4flute end mill cutter, Flat end mill
Features:
Grade:BT55
Co%:12
Grain Size:0.4um
Density (g/cm):14.1
Hardness(HRA):92.6
TRS N/mm2:4600
Application:For cutting tools machining titanium alloy, heat resistant alloy, stainless steel, quenched steel(HRC55-58), gray cast iron.
Popular standard size(Can be available from stock, ready to ship):
| Cutting diameter | Shank dia. | Total length | Flute |
| 1.0mm | 4mm | 50mm | 4 |
| 1.5mm | 4mm | 50mm | 4 |
| 2.0mm | 4mm | 50mm | 4 |
| 2.5mm | 4mm | 50mm | 4 |
| 3.0mm | 3mm | 50mm | 4 |
| 3.0mm | 4mm | 50mm | 4 |
| 3.5mm | 4mm | 50mm | 4 |
| 4.0mm | 4mm | 50mm | 4 |
| 5.0mm | 5mm | 50mm | 4 |
| 5.0mm | 6mm | 50mm | 4 |
| 6.0mm | 6mm | 50mm | 4 |
| 8.0mm | 8mm | 60mm | 4 |
| 10.0mm | 10mm | 75mm | 4 |
| 12.0mm | 12mm | 75mm | 4 |
For milling workpiece of which hardness is below HRC 50 to 55 degree, carbide grade BT55 is applied as raw material(ground carbide rod), BT45 has below physical characters:
| Grade | Co% | Grain Size | Density (g/cm) | Hardness(HRA) | TRS N/mm2 | Application |
| BT55 | 12 | 0.4 | 14.1 | 92.6 | 4600 | For cutting tools machining titanium alloy, heat resistant alloy, stainless steel, quenched steel(HRC55-58), gray cast iron. |

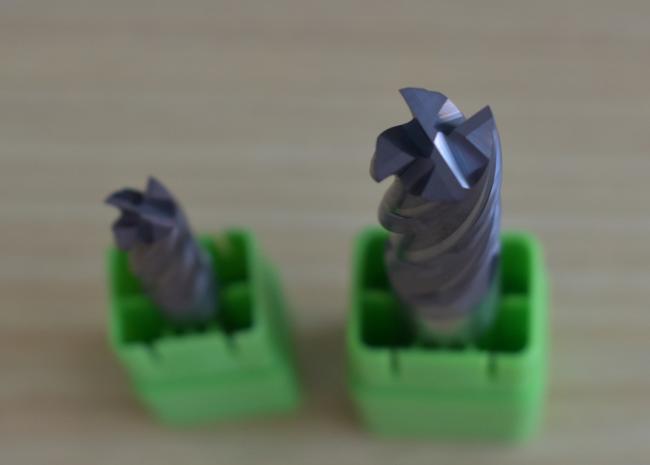

product pictures:
About us:
Xiamen Betalent Carbide Co., Ltd is a company focus on producing cemented carbide materials and carbide products. It is located in Xiamen, Dongguan, Ganzhou of China, head office and main plant is in Xiamen, plants covering an area over 10000M2, employee number is around 150, among them there is a 15 technician team continually research and develop new items and offer professional technology back up to sales staff, a 20-person quality control team. Betalent carbide factory has advanced facilities and inspection instruments, offer carbide products to the middle to high-end market.
