Male Centre Helical Flute M6×1 Tap Drill Bit Set Thread Tapping Tool Set

Price Negotiable

Price: USD 1to50/PC

MOQ: 10

Delivery Time: Negotiable

Brand: Betalent

Product Description

Forming taps with male centre

Specification:

Product Name:Forming taps with male centre

Types: Forming tap

Base material: Powder high speed steel (CPS)

Coating: Without coating, Tin coating, TICN coating, or ALSIN coating

Thread type: M, MF, UNC, UNF,UNEF,W

Precision: 6H/6G/5G

Machine Type:CNC, Automatic Lathe, Tapping Machine

Flute type: Helical or straight

Application: Pure Aluminium, Pure Zinc, Aluminium alloy, Zinc alloy, Low/Medium carbon steel up to 32 HRC, Stainless steel, Titanium, Titanium alloy

Forming Taps With Male Centre:

UN Forming Taps With Male Centre:

Thread Size	Tap Limit	Lc	L	f1	d
NO.0-80UNF	RH4-P	4P	37	6.5	3
NO.0-80UNF	RH4-B	2P	35	6.5	3
NO.1-64UNC	RH4-P	4P	37	9	3
NO.1-64UNC	RH4-B	2P	35	9	3
NO.2-56UNC	RH4-P	4P	45	12	3
NO.2-56UNC	RH4-B	2P	43	12	3
NO.3-48UNC	RH4-P	4P	45	15	3
NO.3-48UNC	RH4-B	2P	43	15	3
NO.4-40UNC	RH5-P	4P	45	15	3
NO.4-40UNC	RH5-B	2P	43	15	3
NO.5-40UNC	RH5-P	4P	50	15	4
NO.5-40UNC	RH5-B	2P	47	15	4
NO.6-32UNC	RH7-P	4P	50	16	4
NO.6-32UNC	RH7-B	2P	47	16	4
NO.8-32UNC	RH7-P	4P	57	18	5
NO.8-32UNC	RH7-B	2P	54	18	5
NO.10-24UNC	RH7-P	4P	66	20	5.5
NO.10-24UNC	RH7-B	2P	62.5	20	5.5
NO.10-32UNF	RH7-P	4P	66	20	5.5
NO.10-32UNF	RH7-B	2P	62.5	20	5.5
NO.12-24UNC	RH7-P	4P	66	20	5.5
NO.12-24UNC	RH7-B	2P	62.5	20	5.5
NO.12-28UNF	RH7-P	4P	66	20	5.5
NO.12-28UNF	RH7-B	2P	62.5	20	5.5

Metric Forming Taps With Male Centre:

Thread Size	Tap Limit	Lc	L	f1	d
M1.7*0.35	RH4-P	4P	37	8	3
M1.7*0.35	RH4-B	2P	35	8	3
M2*0.4	RH4-P	4P	45	10	3
M2*0.4	RH4-B	2P	43	10	3
M2.3*0.4	RH4-P	4P	45	10	3
M2.3*0.4	RH4-B	2P	43	10	3
M2.5*0.45	RH5-P	4P	45	13	3
M2.5*0.45	RH5-B	2P	43	13	3
M2.6*0.45	RH5-P	4P	45	13	3
M2.6*0.45	RH5-B	2P	43	13	3
M3*0.5	RH7-P	4P	50	16	4
M3*0.5	RH7-B	2P	47	16	4
M3.5*0.6	RH7-P	4P	50	16	4
M3.5*0.6	RH7-B	2P	47	16	4
M4*0.7	RH7-P	4P	57	18	5
M4*0.7	RH7-B	2P	54	18	5
M5*0.8	RH7-P	4P	66	20	5.5
M5*0.8	RH7-B	2P	62.5	20	5.5
M6*1.0	RH7-P	4P	69	24	6
M6*1.0	RH7-B	2P	65.5	24	6

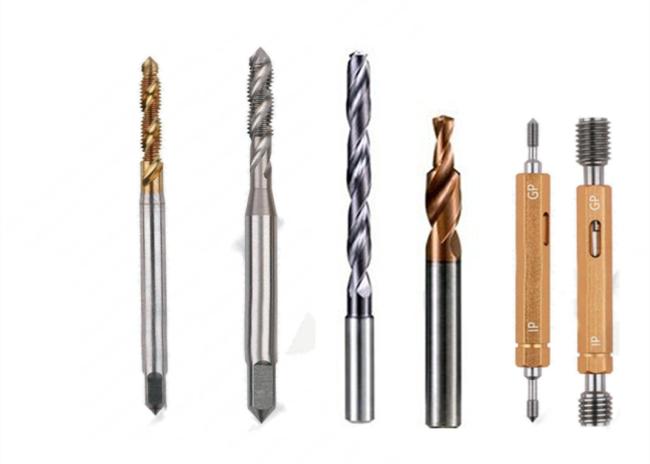

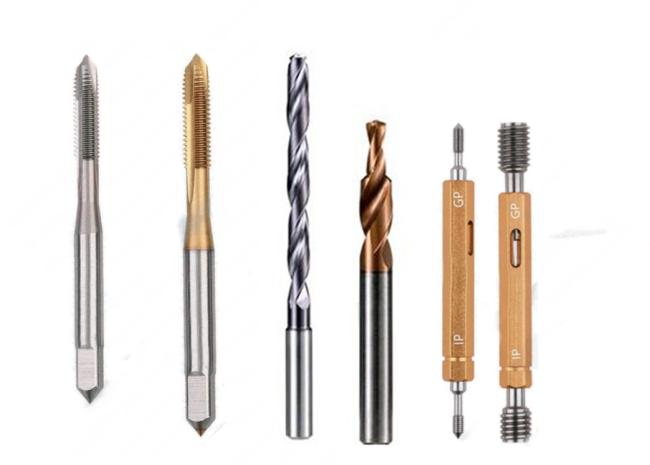

Product Pictures:

To convenient the drilling, tapping, and the measurement after the tapping to make sure the thread accuracy, Betalent specially make the set. Including HSS drill bit, CPS tap, thread plug gauge or thread ring gauge.

Please Contact Us for Further Details.
