Oil Water Separation SS302 10um Sintered Wire Mesh Filter
Oil Water Separation SS302 10um Sintered Wire Mesh Filter
Sintered filter Product Information:
Sintered mesh filter is made of sintered mesh after cutting, precision welded sintered filter. The most important point of Sintered felt filter element is that a large number of high-precision welding is used. To ensure roundness and flat, Sintered wire mesh filter cartridge is sintered after using rolling seam welding process and the method of correction weld, it can make the overall look more beautiful. Main filter medium of sintered filter elements is five-layer sintered wire cloth, filter rating is form 1 to 200 micron. Five-layer sintered wire cloth consists of five layers of stainless steel mesh, which are sintered together in vacuum.
Sintered filter element model:
| Model | L | D | Medium | Filter area(M2) | R | Filter media |
| (mm) | (毫米) | (um) | ||||
| CF-14 / 65-R | 65 | 14 | M10 * 1P | 0.002 | 2,5,10,15,20,30,40,75 | Stainless steel sintered wire cloth |
| CF-14 / 250-R | 250 | M14 * 1P | 0.01 | |||
| CF-14 / 500-R | 500 | M14 * 1.5P | 0.022 | |||
| CF-14 / 1000-R | 1000 | 1/4“ NPT | 0.044 |
sintered filter features:
1. Stainless steel precision filter core has high porosity, good air permeability, low resistance and low pressure difference;
2, stainless steel precision filter elements folded into a large filtering area, high pollution load;
3, stainless steel precision filter core high temperature, corrosion resistance, suitable for high viscous liquid filtration;
4, good regeneration performance, after chemical cleaning, high temperature and ultrasonic cleaning can be used repeatedly;
sintered filter Main technical parameters :
1. Maximum working temperature of stainless steel precision filter element :≤500℃
2. Filtration accuracy :1-200um
3. Operating temperature: 0.1-30mpa
4. Specification of filter element :5-40 inches (it can be made separately according to user requirements)
5. Interface form: threaded interface, 222, 226, 220, etc.
6.Temperature: -50℃-800℃
7..Diameter:14-800mm, Length:10-1200mm
8..Hanke Filter can be customized by your demands.
Sintered filter Application:
-Polyester
-Petrochemical, petroleum refining
-Pharmaceutical and food refining or cycling
-Drinking
-Catalytic recycling

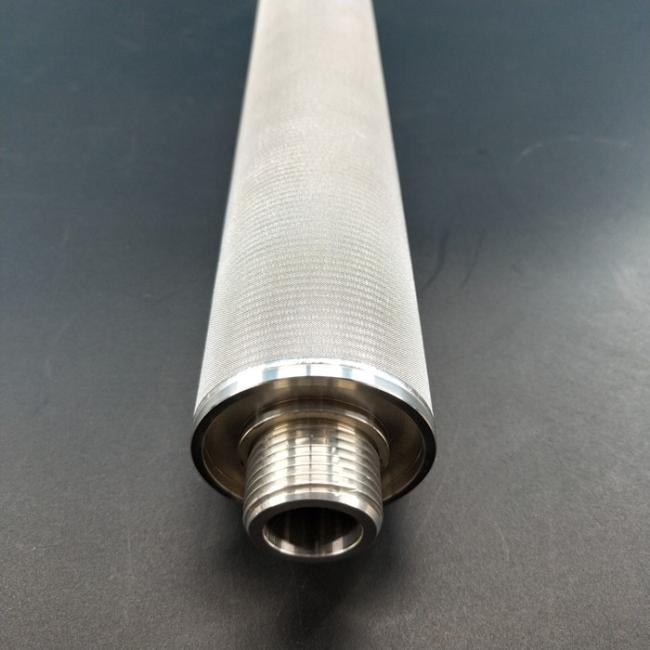

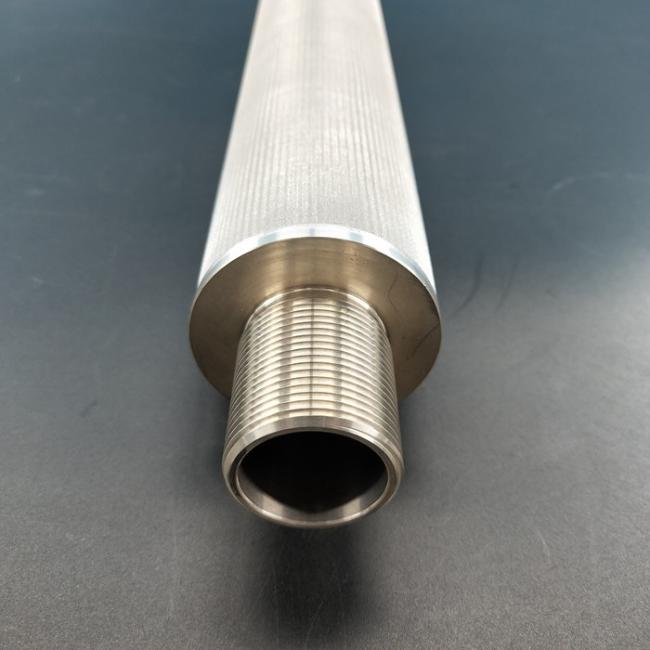

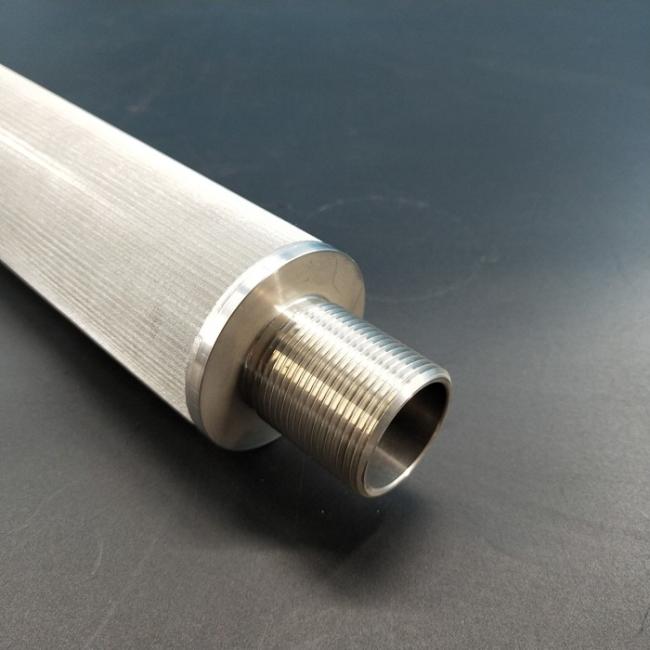

Sintered filter element picture:
We owned:
Preeminent research&Development team;
Advanced design ideas;
20 years’ experience;
Standardized production equipment;
Effective quality management
We offer
Customized products and service;
Reliable filtration solutions;
Technical support;
Fast delivery service;
Extra save cost;
