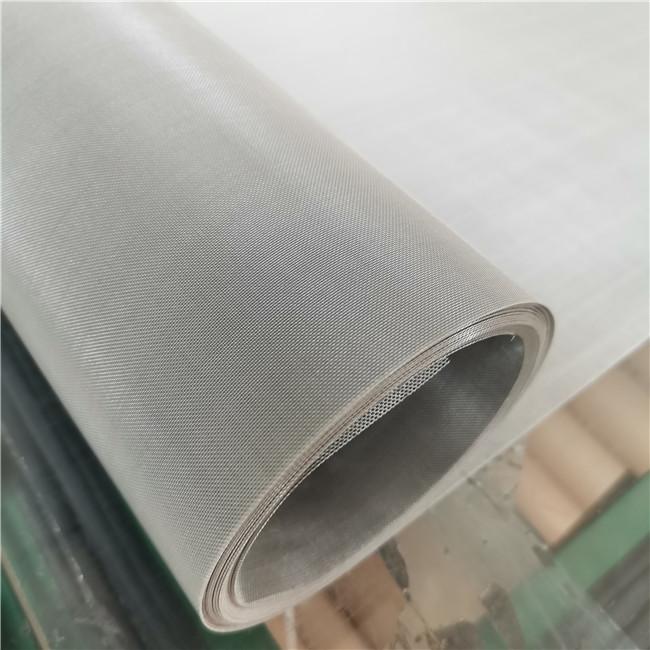

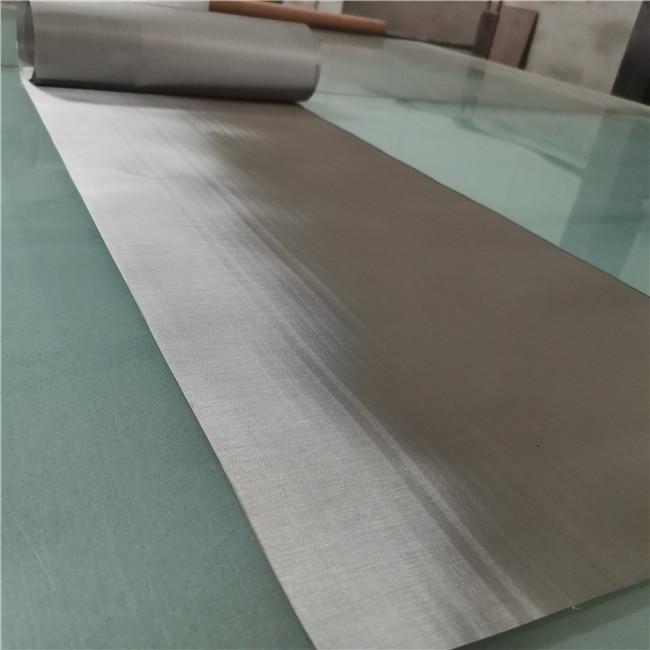

Ceramic Printing 250 Inch 40um 37% SS Wire Mesh
Plain Weave inch 250 / Printing Wire Screen , Ceramic printing , Stainless Steel Wire Mesh
Stainless steel wire mesh specification:
The specification of stainless steel mesh is mainly between 2-636 mesh.
Stainless steel specification suqare mesh form 2 to 650 per inch, width from 91.4 cm to 800 cm. The Dutch woven mesh ranges from 12 x 62 mesh to 400 x 2800 mesh perinch.
Stainless Steel Wire Mesh Parameter :
material: grade 304 stainless steel.
hole size: 6 mm (1 / 4 inch).
Line thickness: 0.7 mm
Weight per square meter: About 890 grams.
Tape height: the height of the tape is made to Royal standards (feet and inches).
Stainless Steel Wire Mesh Aperture Size:
| Mesh/inch | Wire Dia. | Aperture Size(um) | Open Area (%) | Thickness | Through ink(mm³/m) | Material |
| (um) | (um) | |||||
| 250*250 | 40 | 62 | 37 | 69-74 | 23.2 | 316L/304N |
| 250*250 | 30 | 72 | 50 | 58-62 | 29.8 | 316L/304N |
| 250*250 | 35 | 67 | 43 | 64-68 | 31.2 | 316L/304N |
| 270*270 | 35 | 59 | 40 | 71-75 | 30.1 | 316L/304N |
| 300*300 | 30 | 55 | 42 | 65-69 | 28.8 | 316L/304N |
| 325*325 | 30 | 48 | 38 | 62-66 | 28.2 | 316L/304N |
| 325*325 | 28 | 50 | 41 | 60-64 | 26.4 | 316L/304N |
| 325*325 | 23 | 55 | 50 | 49-53 | 25.4 | 316L/304N |
| 350*350 | 25 | 48 | 43 | 46-49 | 18.7 | 316L/304N |
| 360*360 | 16 | 55 | 60 | 31-35 | 21.5 | 316L/304N |
| 400*400 | 23 | 41 | 41 | 50-54 | 22 | 316L/304N |
| 400*400 | 18 | 46 | 51 | 36-40 | 19.5 | 316L/304N |
| 500*500 | 18 | 33 | 42 | 36-40 | 15.3 | 316L/304N |
| 500*500 | 15 | 35 | 47 | 33-37 | 12 | 316L/304N |
Stainless Steel Wire Mesh Chemical Composition:
Grade |
Chemical Composition (%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | - |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - |
Stainless steel wire mesh technology:
Stainless steel wire mesh is woven with stainless steel wire, forming a square or rectangular opening. Stainless steel woven mesh has the characteristics of rust resistance, corrosion resistance, acid and alkali resistance, high temperature resistance, chemical corrosion resistance, high strength and good durability. Stainless steel wire woven fabric is widely used in industry, construction, residence and other places.
Stainless Steel Wire Mesh Basis Informataion:
Metal mesh is a wide range of metal mesh projects, also known as metal mesh cloth. When we say stainless steel wire mesh, it may refer to welded wire mesh or woven wire mesh. Braided wire mesh is the most common for general sorting, screening and filtration applications. The welded mesh is considered to have a smoother surface and can have a larger opening area or a larger wire diameter. Crossed wires are welded together at each connection. The weld provides more strength and rigidity to maintain a uniform cloth.
We owned:
Preeminent research&Development team;
Advanced design ideas;
20 years’ experience;
Standardized production equipment;
Effective quality management
We offer:
Customized products and service;
Reliable filtration solutions;
Technical support;
Fast delivery service;
Extra save cost;
Products
Pleated filter,sintered filter element,filter disc and various filter elements and wire mesh.The material include stainless steel,duplex SS,Supper Duplex SS,monel,inconel,nickel,hastelloy etc.
Application
Petro-chemical,Polymer,Catalytic filtration,fuel filtration,oil pressure production line and cutting oil filtration and homogenization;Gas treatment;water treatment;pharmaceutical industries,food industries;industrial flame protection,etc.
