Solid Sieve Filtration 50FT 39μM 316 Stainless Steel Wire Mesh
SS316 plan woven 500 mesh , high temperature resistant , stainless steel wire , Solid sieve filtration ,stainless steel wire mesh
Stainless Steel Wire Mesh Specfifcation:
| Material | SS wire 201, 304, 304L, 316, 316L, 431, 321 etc. |
| Wire diameter | 0.02-2.03mm |
| Mesh | 1-635 mesh |
| Woven style | plain weave,twill weave,dutch weave |

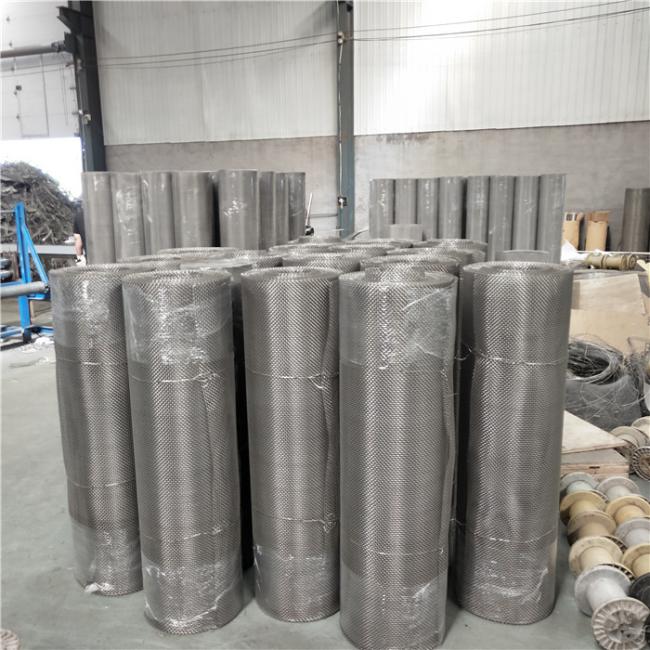

| Packing | 1.in roll,water proof paper in side and outside with woven bag, 2.wooden case 3.pallet 4.The package able to according to customer's requirment. |
| Charaacteristics |
Wear-resistant, high strength and long service life, unity-structure, not curly, easy to use, acid-resistant , alkali-resistant, corrosion-resistant, heat-resistant |
| Application |
Woven stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.
|
| Plain Dutch woven: | |||||
| Mesh/Inch (warp×weft) |
Wire Dia. warp×weft(mm) |
Normal size(μm) |
Effective area% | Weight kg/sq.m |
Cloth thickness (mm) |
| 80×700 | 0.125×0.04 | 40 | 38.1 | 0.6 | 0.205 |
| 60×270 | 0.14×0.10 | 39 | 11.2 | 1.03 | 0.34 |
| 77×560 | 0.14×0.05 | 38 | 27.5 | 0.74 | 0.24 |
| 70×390 | 0.112×0.071 | 37 | 16.3 | 0.74 | 0.254 |
| 65×750 | 0.10×0.036 | 36 | 37.1 | 0.43 | 0.172 |
| 70×340 | 0.125×0.08 | 35 | 13.2 | 0.86 | 0.285 |
| 80×430 | 0.125×0.063 | 32 | 16.6 | 0.77 | 0.251 |
| 118×750 | 0.063×0.036 | 23 | 21.5 | 0.38 | 0.135 |
Stainless steel wire mesh information
Stainless steel wire mesh is the company's main products, with more than 20 years of manufacturing history
Stainless steel wire mesh: 302, 304, 304L, 316, 316L, 310, 430, etc. According to knitting
There are two methods: plain and twill. We have the ability to produce stainless steel mesh, 635 mesh square mesh, 2800 mesh Dutch woven mesh.
Grid number:
Plain weave can be woven to 400 mesh.
Twill fabric can be woven from 400 mesh to 635 mesh.
Dutch fabric can weave up to 3200 mesh
characteristic:
Corrosion resistance.
Anti acid and alkali resistance
High temperature resistance.
Good filtration performance.
Long service life
Stainless Steel Wire Mesh Chemical composition:
(1) 304 stainless steel wire mesh:
High temperature resistance 800 ℃, with good processing performance, high toughness, a wide range of applications
Suitable for industry, furniture decoration, food, medical and other industries
(2) 316 stainless steel wire mesh:
Its corrosion resistance, atmospheric corrosion resistance and high temperature strength are particularly good,
It can be used in caustic salt conditions, excellent working hardenability (non-magnetic).
(3) 316L stainless steel mesh:
Better corrosion resistance than 304 and 316.
-The appearance of cold rolled products is bright and beautiful;
-Due to the addition of Mo, its corrosion resistance, especially pitting corrosion resistance, is excellent;
-Excellent high temperature strength
-Excellent processing hardenability (weak magnetism after processing)
-The solid solution state has no magnetism;
-Compared with 304 stainless steel, the price is higher.
