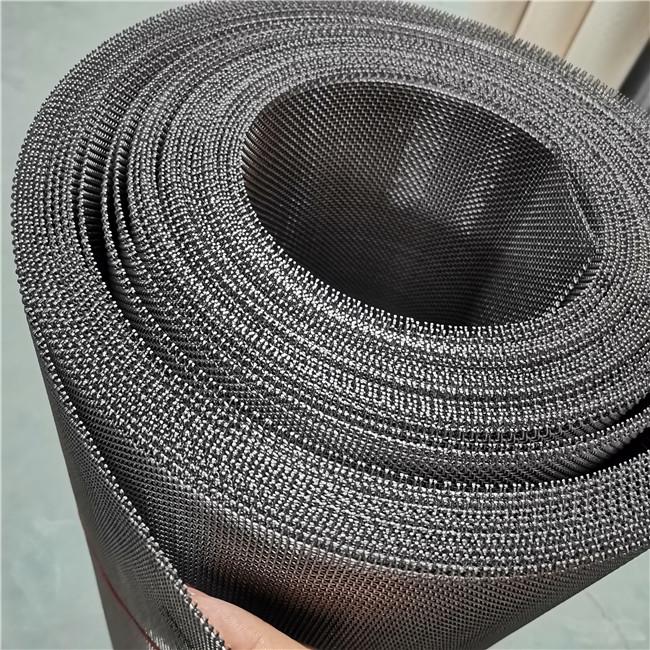

1.5m X 30m 150 Mesh Diameter 0.08mm SS Wire Mesh
150 mesh 0.08mm wire diameter 1.5m X 30m per roll stainless steel wire mesh
Description of stainless steel wire mesh
1. Material: SUS 304, Sus 304L, Sus 316, Sus 316L
2. Welding wire diameter: 0.08mm
3. Opening size: 0.13MM
4. Open area: 38.69%
5.Weight: 0.38 kg / m2
6. Tissue type: plain weave
7.Other rolls: 1.5m, 1.2m wide
8. Roll length: 30m (maximum 200m)

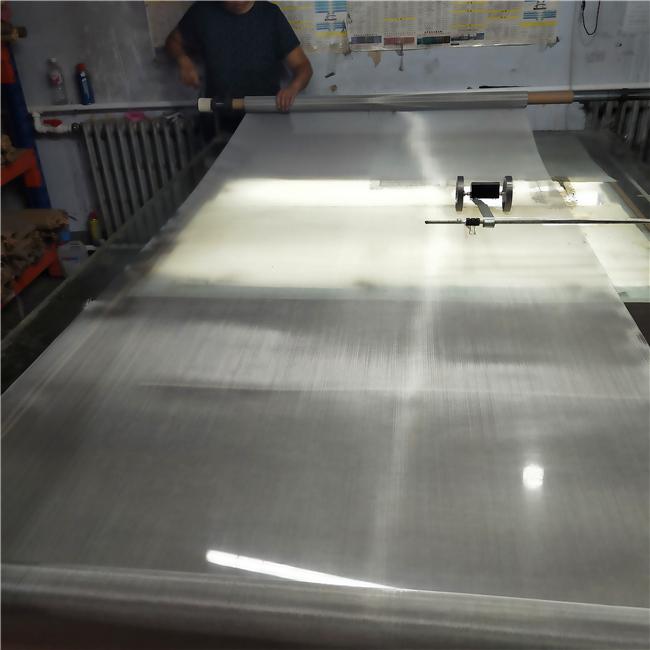

There are more than 6000 rolls of mesh in the factory.
Application: EMI / RFI / EMR shielding, filter, paper making, test screen, filter disc, etc.
| Plain Dutch woven: | |||||
| Mesh/Inch (warp×weft) |
Wire Dia. warp×weft(mm) |
Normal size(μm) |
Effective area% | Weight kg/sq.m |
Cloth thickness (mm) |
| 7×44 | 0.71×0.63 | 319 | 14.2 | 5.55 | 1.97 |
| 8×45 | 0.8×0.6 | 310 | 15.5 | 5.7 | 2 |
| 8×60 | 0.63×0.45 | 296 | 20.3 | 4.16 | 1.53 |
| 8×85 | 0.45×0.315 | 275 | 27.3 | 2.73 | 1.08 |
| 10×90 | 0.45×0.28 | 249 | 29.2 | 2.57 | 1.01 |
| 10×76 | 0.5×0.355 | 248 | 21.8 | 3.24 | 1.21 |
| 12×86 | 0.45×0.315 | 211 | 20.9 | 2.93 | 1.08 |
| 12×64 | 0.56×0.40 | 211 | 16 | 3.89 | 1.36 |
| 12×76 | 0.45×0.355 | 192 | 15.9 | 3.26 | 1.16 |
| 14×100 | 0.40×0.28 | 182 | 20.3 | 2.62 | 0.96 |
| 14×110 | 0.4×0.25 | 177 | 22.2 | 2.28 | 0.855 |
| 14×76 | 0.45×0.355 | 173 | 14.3 | 3.33 | 1.16 |
| 16×100 | 0.40×0.28 | 160 | 17.7 | 2.7 | 0.96 |
| 17×120 | 0.355×0.224 | 155 | 22.4 | 2.19 | 0.803 |
| 16×120 | 0.28×0.224 | 145 | 19.2 | 1.97 | 0.728 |
| 20×140 | 0.315×0.20 | 133 | 21.5 | 1.97 | 0.715 |
| 20×170 | 0.25×0.16 | 130 | 28.9 | 1.56 | 0.57 |
| 20×110 | 0.355×0.25 | 126 | 15.3 | 2.47 | 0.855 |
| Twill dutch woven | |||||
| Mesh/Inch (warp×weft) | Wire Dia. warp×weft (mm) | Normal size (μm) | Effective(area%) | Weight kg/sq.m | Cloth thickness (mm) |
| 20×270 | 0.25×0.2 | 119 | 17.6 | 3.14 | 0.65 |
| 20×200 | 0.355×0.28 | 118 | 12.1 | 4.58 | 0.915 |
| 24×300 | 0.28×0.18 | 110 | 19.6 | 3.01 | 0.64 |
| 20×150 | 0.45×0.355 | 101 | 7.5 | 6.02 | 1.16 |
| 30×340 | 0.28×0.16 | 89 | 17.9 | 2.84 | 0.6 |
| 30×270 | 0.28×0.20 | 77 | 11.2 | 3.41 | 0.68 |
| 40×540 | 0.18×0.10 | 70 | 23.5 | 1.73 | 0.38 |
| 40×430 | 0.18×0.125 | 63 | 15.4 | 2.09 | 0.43 |
| 50×600 | 0.125×0.09 | 51 | 17.2 | 1.47 | 0.305 |
| 50×500 | 0.14×0.11 | 47 | 12 | 1.83 | 0.364 |
| 65×600 | 0.14×0.09 | 36 | 1.59 | 0.32 | |
| 70×600 | 0.14×0.09 | 31 | 10.1 | 1.61 | |
| 78×760 | 0.112×0.071 | 13.5 | 1.25 | 0.254 | |
| 78×680 | 0.112×0.08 | 29 | 10.3 | 1.37 | 0.272 |
| 80×680 | 0.112×0.08 | 28 | 9.8 | 1.38 | |
| 90×850 | 0.10×0.063 | 26 | 12.7 | 1.12 | 0.226 |
| 90×760 | 0.10×0.071 | 24 | 9.6 | 1.23 | 0.242 |
Stainless steel wire mesh applications:
Oil industry mud network,
Screen of chemical fiber industry.
Pickling network of electroplating industry.
Stainless steel wire mesh material
Steel wire mesh stainless steel wire mesh & woven steel wire cloth
Stainless steel wire mesh is made of stainless steel wire by warp and weft. 302 SS, 304 SS, 304L SS, 310 SS, 316 SS, 316L SS, 317L SS, 321 SS, 330 SS, 347 SS, 410 SS, 430 SS are the material grades of our stainless steel wire mesh. The products are mainly used for filtration and screening of gas, liquid and solid, and separation of media.
