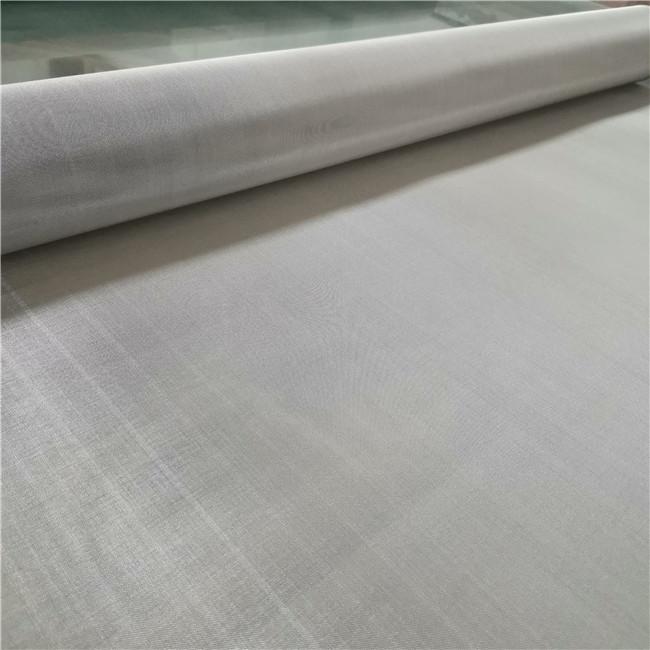

200 Mesh Electronic Printing SUS316 87um Stainless Steel Wire Net
200 Mesh Paper making printing , Electronic printing , SS316 Stainless Steel Woven Wire Mesh
Description of 316 stainless steel wire mesh
Stainless steel wire mesh also known as: stainless steel mesh, stainless steel mesh, stainless steel wire mesh.
Shape hole: square hole, rectangular hole, flat mesh, twill mesh;
Application of stainless steel in paper dewatering
It can be used for paper dehydration, gas-liquid filtration and particle screening in mining, metallurgy, chemical industry, rubber, cement and other industries.
It features stainless steel paper mesh
It has compact structure and various functions. The filtration effect is good by reacting with the surface. Self cleaning and filtration of coupling can be completed. Pipe is used to reduce the suspended solids content of raw water. 5. It is made of special raw materials with long service life
Parameters of stainless steel mesh
| NAME | NICK NAME | MATERIAL |
| Stainless Steel Woven Wire Mesh | Stainless Steel wire cloth, wire netting, woven mesh | 302,304, 304L,316, 316L etc. |
| Mesh/inch | Wire Dia. | Aperture Size(um) | Open Area (%) | Thickness | Through ink(mm³/m) | Material |
| 40*40 | 160 | 475 | 56 | 300-320 | 179.1 | 316L/304N |
| 50*50 | 140 | 368 | 52 | 265-280 | 146.9 | 316L/304N |
| 60*60 | 120 | 303 | 51 | 230-245 | 123.2 | 316L/304N |
| 70*70 | 70 | 293 | 65 | 135-143 | 91.2 | 316L/304N |
| 80*80 | 120 | 198 | 39 | 235-245 | 92.9 | 316L/304N |
| 80*80 | 90 | 228 | 52 | 175-180 | 93.1 | 316L/304N |
| 80*80 | 50 | 268 | 71 | 95-100 | 71 | 316L/304N |
| 100*100 | 100 | 154 | 37 | 195-205 | 77.2 | 316L/304N |
| 120*120 | 80 | 132 | 39 | 155-165 | 65.8 | 316L/304N |
| 150*150 | 60 | 109 | 42 | 115-124 | 50 | 316L/304N |
| 165*165 | 35 | 119 | 60 | 70-75 | 48 | 316L/304N |
| 165*165 | 45 | 109 | 50 | 88-93 | 45.1 | 316L/304N |
| 165*165 | 50 | 104 | 46 | 97-105 | 45.6 | 316L/304N |
| 180*180 | 45 | 96 | 48 | 88-93 | 41.5 | 316L/304N |
| 180*180 | 50 | 91 | 42 | 96-104 | 41.7 | 316L/304N |
| 200*200 | 40 | 87 | 47 | 78-82 | 37.5 | 316L/304N |
| 200*200 | 50 | 77 | 37 | 98-103 | 36.8 | 316L/304N |
| 230*230 | 35 | 75 | 46 | 58-61 | 28.8 | 316L/304N |
| 250*250 | 40 | 62 | 37 | 69-74 | 23.2 | 316L/304N |
| 250*250 | 30 | 72 | 50 | 58-62 | 29.8 | 316L/304N |
| 250*250 | 35 | 67 | 43 | 64-68 | 31.2 | 316L/304N |
| 270*270 | 35 | 59 | 40 | 71-75 | 30.1 | 316L/304N |
| 300*300 | 30 | 55 | 42 | 65-69 | 28.8 | 316L/304N |
| 325*325 | 30 | 48 | 38 | 62-66 | 28.2 | 316L/304N |
| 325*325 | 28 | 50 | 41 | 60-64 | 26.4 | 316L/304N |
| 325*325 | 23 | 55 | 50 | 49-53 | 25.4 | 316L/304N |
| 350*350 | 25 | 48 | 43 | 46-49 | 18.7 | 316L/304N |
| 360*360 | 16 | 55 | 60 | 31-35 | 21.5 | 316L/304N |
| 400*400 | 23 | 41 | 41 | 50-54 | 22 | 316L/304N |
| 400*400 | 18 | 46 | 51 | 36-40 | 19.5 | 316L/304N |
| 500*500 | 18 | 33 | 42 | 36-40 | 15.3 | 316L/304N |
| 500*500 | 15 | 35 | 47 | 33-37 | 12 | 316L/304N |
| Grade | Chemical Composition (%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.0/10.0 | ||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | - |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - |
Description of 316 stainless steel web
Stainless steel wire mesh also known as: stainless steel mesh, stainless steel mesh, stainless steel wire mesh.
Shape hole: square hole, rectangular hole, flat mesh, twill mesh;
Application of stainless steel in paper dewatering
It can be used for paper dehydration, gas-liquid filtration and particle screening in mining, metallurgy, chemical industry, rubber, cement and other industries.
It features stainless steel paper mesh
It has compact structure and various functions. The filtration effect is good by reacting with the surface. Self cleaning and filtration of coupling can be completed. Pipe is used to reduce the suspended solids content of raw water. 5. It is made of special raw materials with long service life
