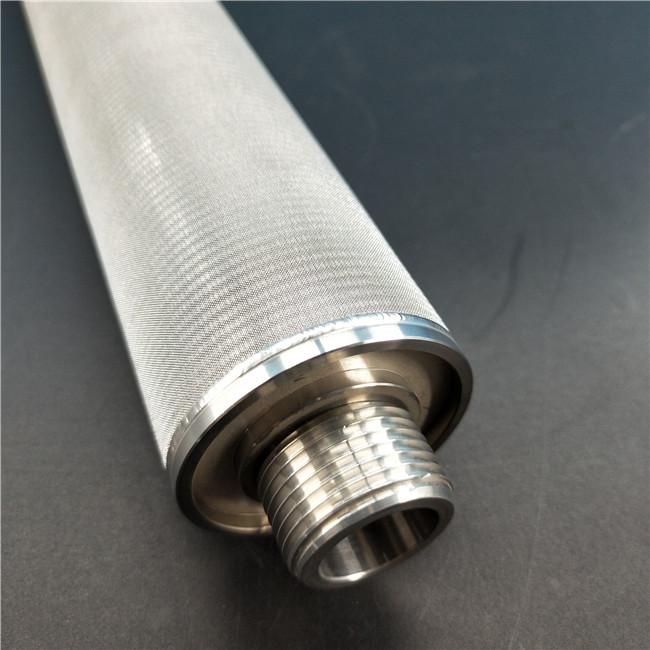

Oil Water Separation 200 Micron Sintered Wire Mesh Filter
Filter precision 1-200 micron, oil and water separation, durable sintered metal filter, high temperature resistance, stable shape
Sintered metal filter for polypropylene industry, high temperature resistant
Sintered metal filter for polyethylene production is made of 316L low carbon stainless steel powder sintered in inert environment. In addition to stainless steel, these filter elements can also be made of the following alloys: Inconel, nickel, 300 series stainless steel, Monel 400, Hastelloy C276, iron aluminide and other high nickel / chromium alloys. These elements provide the most advanced removal efficiency and economical use of traditional porous metal elements with at least twice the dirt carrying capacity.
| Model | L (mm) | D (mm) | M | Filter Area(M2) | R (µm) | Filter Media |
| CF-25/250-R | 250 | 25 | M20*1.5P | 0.019 | 2, 5, 10, 15, 20, 30, 40, 75 | Stainless Steel Sintered Wire Cloth |
| CF-25/500-R | 500 | 0.039 | ||||
| CF-25/1000-R | 1000 | 0.078 | ||||
| CF-30/500-R | 500 | 30 | M20*2P | 0.046 | ||
| CF-30/1000-R | 1000 | M20*2.5P | 0.093 | |||
| CF-30/1500-R | 1500 | M28*2P | 0.14 |
function
It is stable in shape and can support itself as a structural member even under high pressure
Features of stainless steel sintered filter element:
High temperature resistance
Compared with other filter elements, it has good fatigue resistance, impact stress and impact stress.
Define permeability and particle size retention
Good backwash flow and durability
Dimensions of stainless steel wire mesh
Size: nominal or custom
Od: 8 ~ 140mm
Length: 10 ~ 1500mm
We owned:
Preeminent research&Development team;
Advanced design ideas;
20 years’ experience;
Standardized production equipment;
Effective quality management
We offer
Customized products and service;
Reliable filtration solutions;
Technical support;
Fast delivery service;
Extra save cost;
