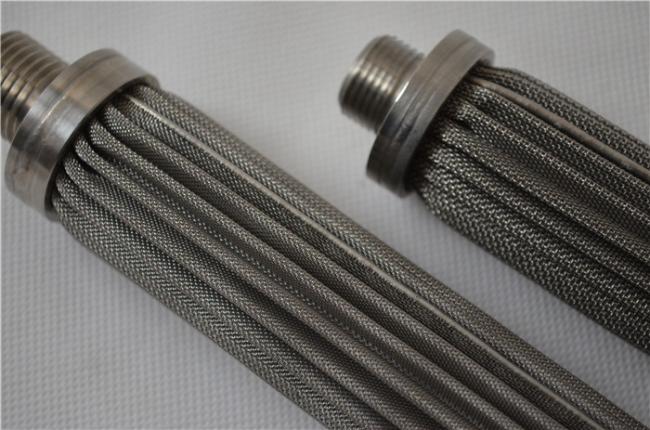

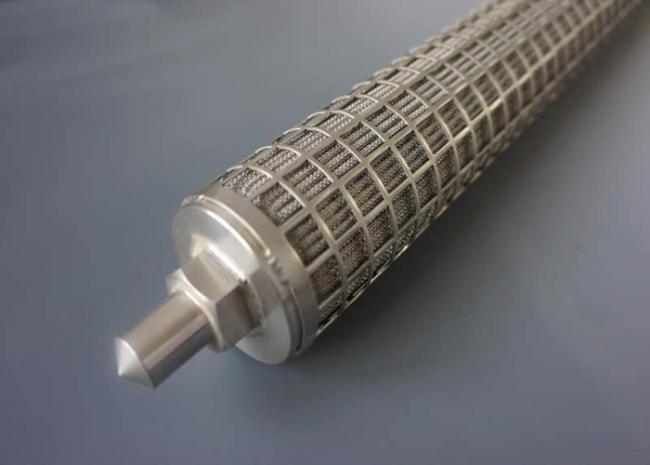

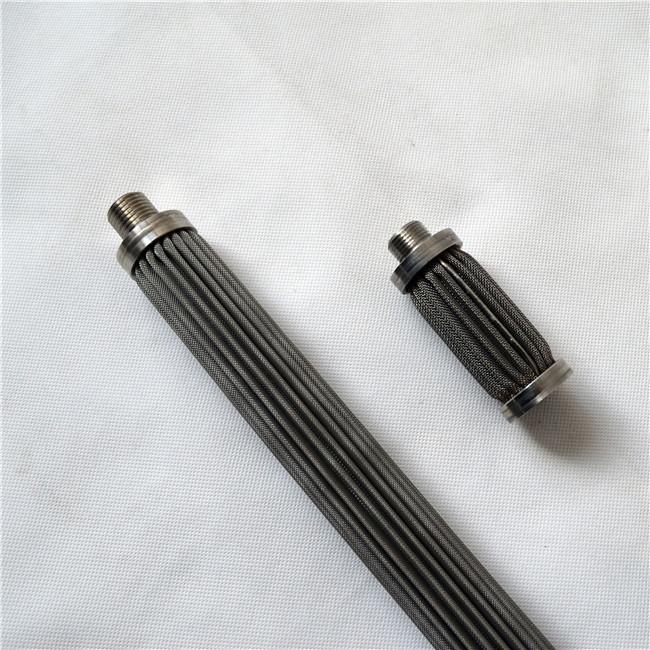

Fold Mesh 1 Micron SS304L Pleated Filter Elements

15-1800 - mm length filtration accuracy is 1-200um , fold mesh Stainless steel pleated filter elements

Basis information:

Stainless steel pleated filter element mainly uses stainless steel sintered fiber felt and stainless steel wire mesh.

Stainless steel sintered fiber felt pleated filter can be made into multi-layer structure with pore size from coarse to fine, with high porosity and high pollutant retention capacity.

Stainless steel mesh pleated filter is made of stainless steel wire with different diameters. It has the characteristics of good strength, not easy to fall off, easy to clean, high temperature resistance and economic use.

Features of stainless steel pleated filter element:

Pleated deep filtration increases filtration area time, stronger pollution retention capacity and longer replacement cycle.

It is suitable for filtration of high viscosity media with high porosity, strong permeability and low pressure difference.

Excellent chemical compatibility, suitable for filtration of strong acids, bases and organic solvents

High strength, high temperature resistance, corrosion resistance, and can withstand the pressure of 30MPa to 90Mpa.

A variety of filtering accuracy can be selected to meet various application requirements

It is welded by hot-melt process, firm and free of contaminants.

There is no medium falling off, which can meet the pharmaceutical industry standard

Chemical methods and on-line steam sterilization can be used.

It can be reused after chemical cleaning, high temperature calcination and ultrasonic cleaning.

Technical features:

1 The filter area after pleating is 3-5 times the normal cylindrical area.

2 can withstand the pressure of 30mpa-90mpa.

three. Working temperature: -60-500℃

4 Maximum pressure difference of filter element: 2MPa

5 Relative filtering accuracy, the rejection rate is greater than 90%

The main purpose:

Filtration of polymer melt in the production of polyester, filament and film;

Filtration of high temperature gas and steam;

Filtration of high temperature liquid and viscous liquid;
