Large Filtration Area 75µM PF-86/350-R Metal Mesh Filter
PF-86/350-R Operating temperature -80℃-1000℃,Large filtration area , high pressure resistant pleated metal filter

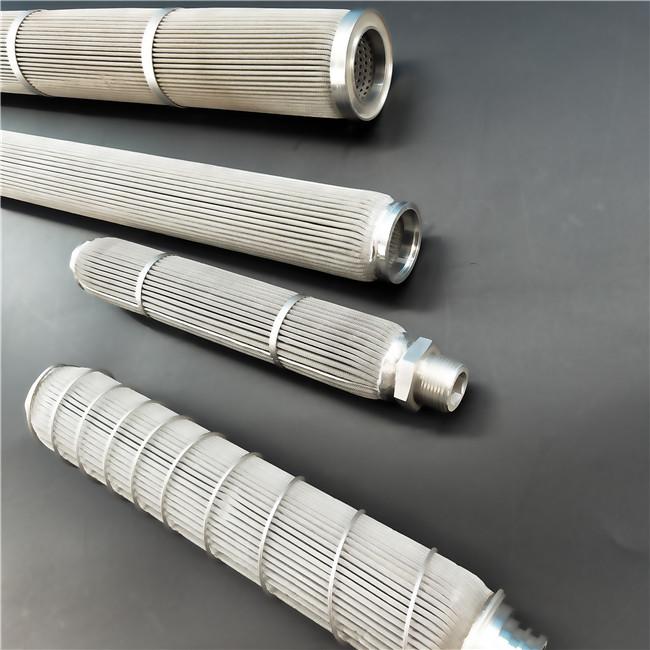

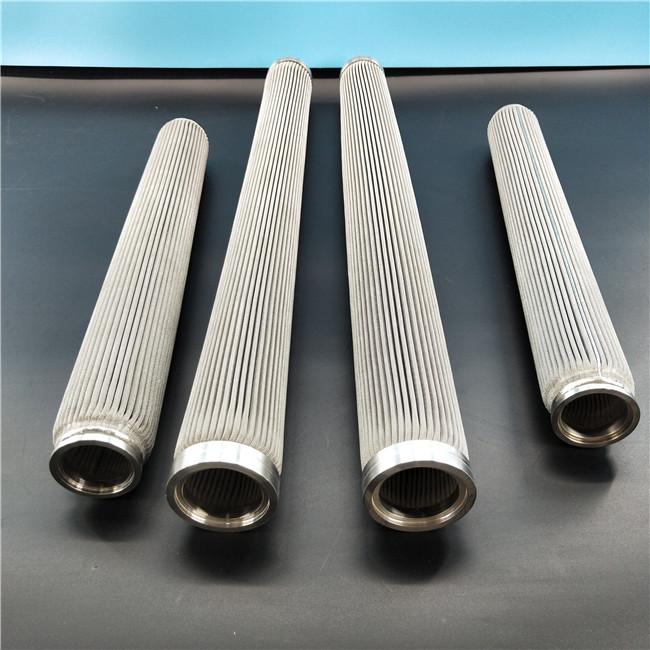

Detailed drawing of stainless steel pleated mesh filter for water filtration:
The pleated mesh filter is made of stainless steel wire mesh or metal fiber felt, sintered at each metal wire contact point to produce a strong surface screening porous filter cartridge. In addition, the filter element adopts a pleated design to further provide a large filtering area and good dirt retention ability. Can provide double opening or single opening according to user needs, the threaded end is usually equipped with gaskets such as o-rings to reduce the friction of the corrugated filter. Different from the unsintered mesh, the pleated sintered mesh filter can use finer metal wires to produce more pores per unit area, thereby improving the carrying capacity of pollutants. On the other hand, in applications such as corrosive liquid filtration, oxidative liquid filtration, liquid and gas filtration, the pleated sintered filter element is more suitable to replace the polypropylene filter element due to its backwashing and reusable advantages.
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-62/180-R | 180 | 62 | G1" | 0.09 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-86/254-R | 254 | 86 | G2" | 0.17 | ||
| PF-86/381-R | 381 | 0.20 | ||||
| PF-86/508-R | 508 | 0.27 | ||||
| PF-86/760-R | 760 | 0.58 | ||||
| PF-140/760-R | 760 | 140 | 0.65 |
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-60/1432-R | 1432 | 60 | 2" * 12UN - 2A | 1.015 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-60/1241-R | 1241 | 0.98 | ||||
| PF-60/1025-R | 1025 | 0.81 |
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-60/400-R | 400 | 60 | M33 * 1.5P M33*2P |
0.40 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-60/500-R | 500 | 0.50 | ||||
| PF-60/1000-R | 1000 | 1.00 |
| Product name | pleated metal filter |
| Filtration accuracy | 1-200um |
| Material | SS316 SS316L SS304 SS304L |
| Working temp | 500℃ |
| Working pressure | 0.2-50MPa |
| OEM | Yes |
| Loading Port | Tianjin |
| Payment | T/T, LC etc |
| Package | custom for you |
| Delivery Time | 20 days |
Main purpose
1. Melt filtration of polymer in polyester, filament, filament and film production.
2. High temperature gas, steam filtration.
3. High temperature liquid, viscous liquid filter.
application
Polymer and medicine, hydraulic oil, water treatment, high temperature gas and other media filtration.
We owned:
Preeminent research&Development team;
Advanced design ideas;
20 years’ experience;
Standardized production equipment;
Effective quality management
We offer
Customized products and service;
Reliable filtration solutions;
Technical support;
Fast delivery service;
Extra save cost;
Products
Pleated filter,sintered filter element,filter disc and various filter elements and wire mesh.The material include stainless steel,duplex SS,Supper Duplex SS,monel,inconel,nickel,hastelloy etc.
Application
Petro-chemical,Polymer,Catalytic filtration,fuel filtration,oil pressure production line and cutting oil filtration and homogenization;Gas treatment;water treatment;pharmaceutical industries,food industries;industrial flame protection,etc.
