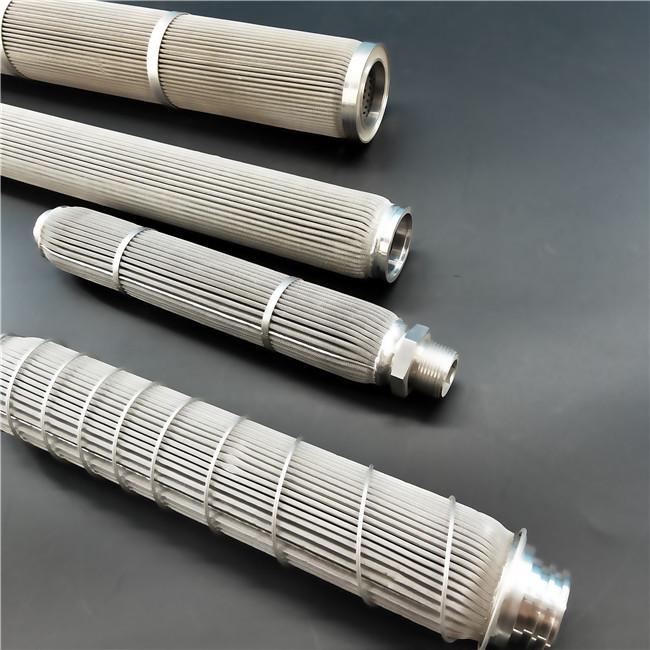

Corrugated Length 2200mm Diameter 180mm Wire Mesh Filter Element
15-2200 mm length , 14-180 - mm in diameter , Strong filtering capacity , Corrugated mesh filter element
Superior Characteristic:
-Large filtration area and particle holding capacity;
-High porosity rate, good air permeability and filtration ability;
-Suitable for viscous liquid filtration, recycled using after cleaning;
-Workable in High temperature or and high pressure.
technical specification:
-Filtration rate: 3-200μm
-Temperature: -50℃-800℃
-Diameter:14-180mm, Length:35-1500mm
-Hanke Filter can be customized by your demands.
Material:
sus304/304L/316/316L
Diameter: 35, 60 mm, etc.
Filter grade (micron): 3,5,7,10,15,20,25,30,40,60 u
Advantage:
Low resistance and low pressure difference;
Folded shape, large filtering area, large carrying capacity;
High temperature resistance, corrosion resistance, suitable for high viscosity liquid filtration;
It has good regeneration performance and can be reused.
| Highest working temperature | 500 ℃ or less |
| Filtration accuracy | 2-200 Um |
| Working temperature | 0.1-30 mpa |
| Filter specifications | 5 - 40 inches (according to customer's requirement) |
| The rated flow | 80-200 l/min |
| Work pressure | 1.5-1.5 pa |
| Filter area (m2) | 0.01 - 0.20 |
| The interface form | 222, 226, 215, M36, M28, m2-m24, M22, M20 thread interface, etc |
Product information:
Two filter media options are available for stainless steel pleated cartridges: stainless steel micron woven mesh or sintered SS fiber mesh. Stainless steel mesh pleated filter is mainly used for filtration of polymer in medicine, food, petroleum, chemical and electronic fields, hydraulic oil filtration and water treatment. The folding multi-layer screen mesh cloth filter layer can provide larger filtering area and higher dirt control ability. The thick woven wire mesh layer and the filter medium layer are pleated together to form wrinkles. And then welded together.
| Model | L (mm) | D (mm) | M | Filter Area (M2) | R (µm) | Filter Media |
| PF-86/200-R | 200 | 86 | M65x2P | 0.20 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-86/350-R | 350 | 0.35 | ||||
| PF-86/500-R | 500 | 0.50 | ||||
| PF-100/800-R | 800 | 100 | M80x2P | 1.00 |
| 模型 | 长 | D | 中号 | 过滤面积 | R | 过滤介质 |
| (mm) | (毫米) | (M 2) | (微米) | |||
| PF-86 / 200-R | 200 | 86 | M65x2P | 0.2 | 3,5,7,10,15,20,25,30,40,60,75 | SS烧结纤维周三, |
| PF-86 / 350-R | 350 | 0.35 | SS丝布 | |||
| PF-86 / 500-R | 500 | 0.5 | ||||
| PF-100 / 800-R | 800 | 100 | M80x2P | 1 | ||
| 模型 | 长 | D | 中号 | 过滤面积 | R | 过滤介质 |
| (mm) | (毫米) | (M2) | (微米) | |||
| PF-65 / 250-R | 250 | 65 | 226 | 0.135 | 3,5,7,10,15,20,25,30,40,60,75 | SS烧结纤维周三, |
| PF-65 / 500-R | 500 | 223 | 0.38 | SS丝布 | ||
| PF-70 / 750-R | 750 | 70 | 220 | 0.42 | ||
| PF-70 / 750-R | 750 | 215 | 0.6 |
Characteristics:
In general, the features of stainless steel pleated filter elements are as follows:
High dust capacity
High reliability standard specification
Stainless steel pleated filter element has low pressure drop due to its high porosity
Pleated filter element has accurate filtration grade
It can be easily cleaned by conventional chemical cleaning and has a long service life
The filter area of pleated stainless steel filter element is increased by pleating
Pleated filter element can be cleaned by ultrasonic and chymotrypsin, and can be reused; it can also be rebound cleaned without dismantling the production line, so as to save time
Stainless steel pleated filter element has strong corrosion resistance and acid-base resistance. Durable, reusable and cost saving.
Application :
Application of stainless steel filter screen in water filtration
Pre filtration of RO system, deionized water.
Solvents, selected acids and lyes, chemical industry.
Ultra pure water system in semiconductor and electronic industry
Catering, drinking water treatment.
Oil industry.
advantages :
1. Hydrophilic PES membrane
2. Low protein binding
3. Wide chemical compatibility and good heat resistance
4. Long service life and large flow
5. Integrity testable
Products:
Pleated filter,sintered filter element,filter disc and various filter elements and wire mesh.The material include stainless steel,duplex SS,Supper Duplex SS,monel,inconel,nickel,hastelloy etc.
