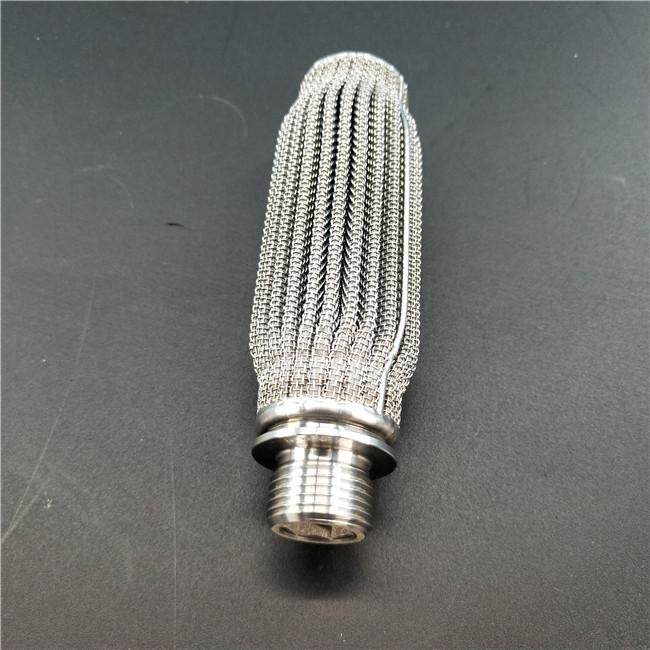

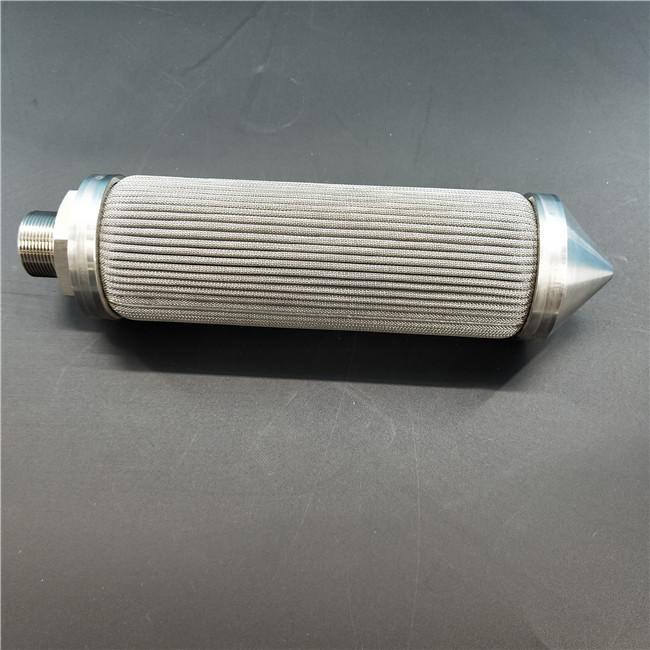

Viscous Liquid Filtration SS316 800C Pleated Wire Mesh Filter
SS316 Viscous liquid filtration , Operating temperature -50℃-800℃ ,stainless steel screen pleated filter cartridge
product description:
Filter media for Pleated Filter Elements are stainless steel sintered fiber felt and stainless steel woven wire cloth.
Filter Media: Stainless Steel woven mesh or sintered metal fiber
Stainless steel sintered fiber felt is a honey comb filter hole with high filtration rate. And it is a kind of durable and pleating-able, enough pleating can get bigger filtration area. Sintered into a graded pore structure, enjoys the advantages of high porosity rate, more filtration area, high dirt holding capacity and can be repeatedly used.
Stainless steel woven wire cloth is made by weaving of stainless steel wire in a variety of diameters. Filter elements with stainless steel woven wire cloth as filter medium, enjoy such advantages of good strength, fastness, easily cleanable, heat-resistance and economic cost.
Alloy: Stainless Steel, Duplex SS, Supper Duplex SS, Monel, Hastelloy, Inconel, FeCr Al, Fe3Al etc.
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-60/1432-R | 1432 | 60 | 2" * 12UN - 2A | 1.015 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-60/1241-R | 1241 | 0.98 | ||||
| PF-60/1025-R | 1025 | 0.81 |
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-60/400-R | 400 | 60 | M33 * 1.5P M33*2P |
0.40 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-60/500-R | 500 | 0.50 | ||||
| PF-60/1000-R | 1000 | 1.00 |
working principle:
Optimized pleated filter elements are designed for liquid filtration, including lubricant, drive, hydraulic and fuel applications.
The filter element has a multi-layer folded filter layer, which increases the filter area and improves the structural strength.
technology:
1. End cover: made of galvanized metal material.
2. Support tube: made of carbon steel with multiple filter holes
3. Support mesh: ultra fine wire mesh
4. Filter material: high quality glass fiber
5. Filtration grade: 3-200 μ m (1 μ m as required)
6. Structural strength: 1.0 MPa, 2.0 MPa, 16.0 MPa, 21.0 MPa
7. Temperature range: - 30 ℃ to + ℃ 100 FPM sealing material to - 10 ℃
0 ℃ to + 100 ℃ for absorbent filter material
Feature:
1. The traditional fan pleated filter element avoids unused volume
2. The pleated geometry of the filter element maximizes the usable area and ensures uniform flow through the filter element.
3. High-strength structure (optional)
Filter elements with the same service life
5. Consistent performance throughout the life of the filter element
