580t/H 100micron 3000micron Stainless Steel Basket Filter

Filtration (microns) 100-3000 stainless steel basket filter

• Details of stainless steel basket filter:

Stainless steel basket filter rinsing Pressure:

stainless steel basket Filter Main Specifications:

For the liquid: water and viscous liquids (<30000cps),

impurity <1000ppm
Filtration (microns):100-3000
Standard design pressure rating: 1.0Mpa, higher pressures can be customized
Cleaning pressure: 0.05Mpa

Drive: Cylinder

Advantages of stainless steel basket filter:

1,Easy maintenance and high operation reliability thanks to a simple and smart cleaning
2,system with a part, moving a little bit.
3,Stable and low pressure loss both in clean and dirty conditions.
4,Need for low washing pressure to 0.3bar.
5,Easy installation: filters can be carried by pipe installation, on which they are installed. Filter can be installed horizontally and vertically.
6,PVC or glass fibre reinforces polyester body material provides high corrosion resistance particularly in sea water applications. Stainless steel bodied filters can be used in fresh water applications

Applications of stainless steel basket Filter:

1,The domestic water supply, water supply and pre-filtering for industrial water supply;
2,Steel, petroleum, chemical, paper, automotive, food, metallurgy and other industries beginning circulating water filtration;
3,Fist stage of circulating cooling water filtration;
4,The water reuse, waste water treatment filter;
5,Central air conditioning, boiler return early filter;
6,Municipal, green spraying, irrigation, agricultural irrigation, drip irrigation water filter early.

Mechanical Installation of stainless steel basket Filter:

Cover:Cover and body can be installed in an opposite way of the shipment due to the requirement on transfer opening. Initially; it is recommended to install the body without cover. Before being installed , check if loose matters or connection lines are available in the filter.
Gaskets: Gaskets shall be carefully tightened for PVC and GRP flanges. GRP flanges generally require pre-tightening
Position:Filter can be installed in any way as seen on Figure 1-b. Nevertheless; filter body, connections and differential pressure switch shall be horizontal to prevent air accumulation and contamination in air tube. Filter shall be installed in a way it would possess positive pressure downwards to the pump, as shown on Figure 1-c.

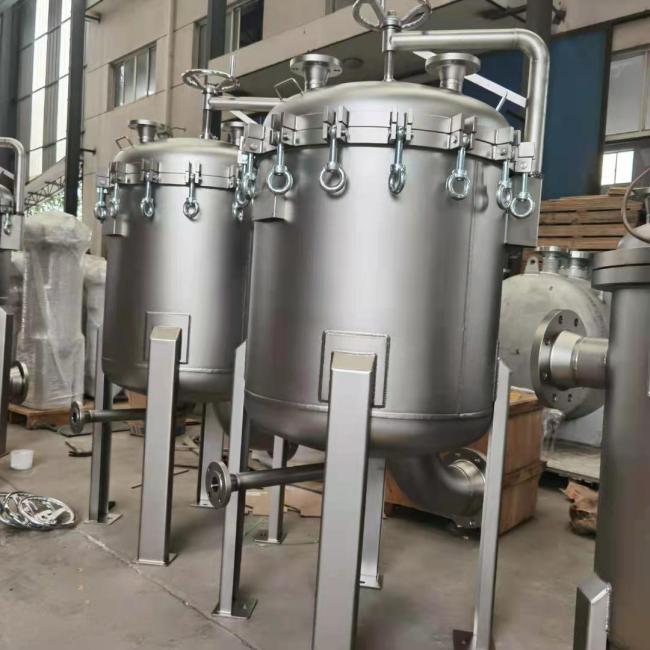

stainless steel basket Filter picture:
