Micron 10-3000 10m2 Stainless Basket Filter

micron10-3000 , material A3 , stainless steel basket filter

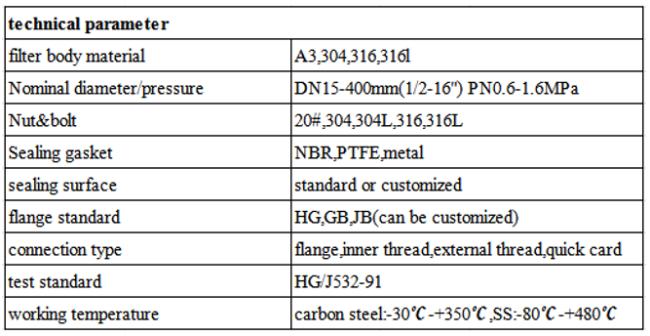

Technical parameter of Stainless Steel Basket filter:

filtration conversion of stainless steel basket filter:

characteristic:

high design pressure,
filter rate≥40microns
Large filtration area, which can meet the conditions of large flow

Component:

mainly composed of connecting pipe, filter body, filter basket, flange, flange cover and fastener.

Filter media for stainless steel basket filter:

Filter media for basket filters include stainless steel perforated sheet, stainless steel weaving wire mesh and stainless steel sintered wire cloth. As to external dimensions and filter rating, we may also provide products per customers requirements.

principle of stainless steel basket filter:

A basket filter is suitable for coarse filtration or with low contamination. The dirt collects in the basket-like screen insert and can be easily removed during cleaning. But the filter element can also be adapted for the finest metallic chips: If desired, magnets can be installed in the screen basket filter.

Application of stainless steel basket filter:

Filter elements such as the screen basket filter are essential for every BOLLFILTER and are individually adapted to our customers' various fields of application. screen basket insert, made of stainless-steel wire mesh and a perforated plate, can be used in both single and double filters. Here the screen basket filter is used for the filtration of liquid, viscous and gaseous media, i.e. liquids, oils or gases.

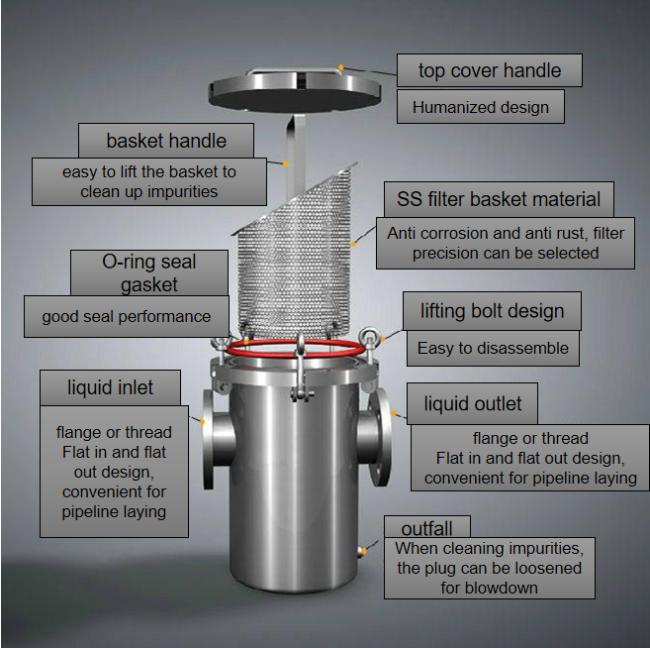

structure of stainless steel basket filter:

working principle of stainless steel basket filter:

When the liquid enters the filter basket through the cylinder, the solid impurity particles are blocked in the filter basket, while the clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning , loosen the plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and then install it again. It is very convenient to use and maintain.
