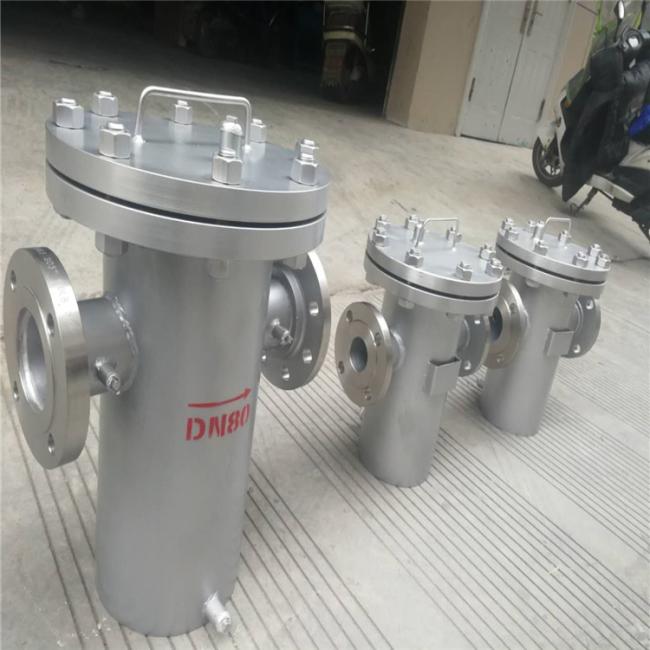

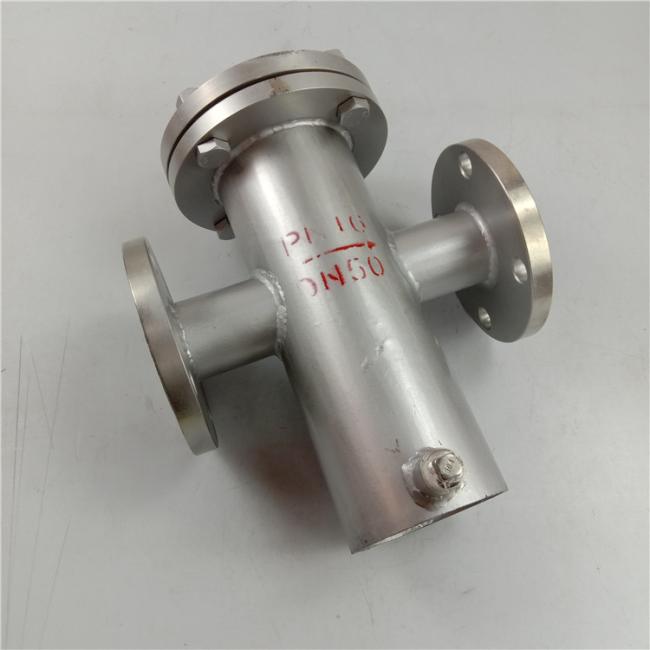

Nominal Dia Dn300 Dimensions 480 Inline Basket Strainer
Nominal Dia DN300 , dimensionsDN480 , SS basket filter
Product Introduce of stainless steel basket filter
Material: stainless steel plate

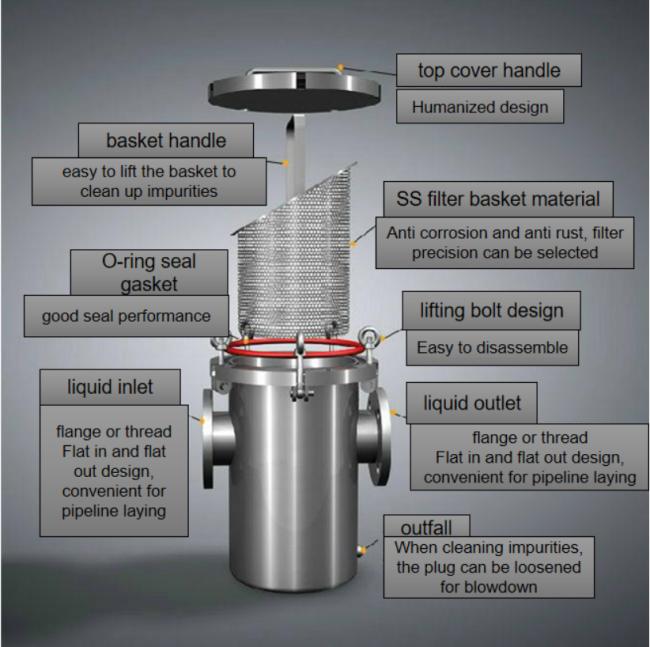

Structure: can have upper and lower port argon arc welding flange and other accessories, the middle barrel body can be the single layer or multi-layer filter argon arc welding of punch plate, wedge-shaped sieve plate, wire mesh, etc.
Style: straight tube, conical, spherical, shaped, etc. (can be customized)
Features: resistance, alkali resistance, high temperature resistance, tensile strength and abrasion resistance can be filtered in acid and alkali environment.
Applications : All sorts of liquids, particles and waste separations, water filtration, inlet protection of compressors and blowers.
Advantages:
1.can be cleaned
2.convenient draining
3.corrosion resistance and long service
| Nominal Dia DN |
Basket filter structure dimensions | filter basket diameter |
pipe stopper N |
|||||
| L | H | H1 | H2 | DN | Φ | |||
| 25 | 180 | 260 | 160 | 185 | Φ76 | 35 | G1/2" | |
| 32 | 180 | 260 | 160 | 185 | Φ76 | 35 | G1/2" | |
| 40 | 260 | 300 | 170 | 210 | Φ108 | 75 | G1/2" | |
| 50 | 260 | 300 | 170 | 210 | Φ108 | 75 | G1/2" | |
| 65 | 330 | 360 | 210 | 260 | Φ133 | 85 | G1/2" | |
| 80 | 340 | 400 | 250 | 315 | Φ159 | 120 | G1/2" | |
| 100 | 400 | 470 | 300 | 395 | Φ219 | 155 | G1/2" | |
| 125 | 480 | 550 | 360 | 490 | Φ273 | 190 | G1/2" | |
| 150 | 500 | 630 | 420 | 540 | Φ273 | 190 | G1/2" | |
| 200 | 560 | 780 | 530 | 675 | Φ325 | 270 | G3/4" | |
| 250 | 660 | 930 | 640 | 833 | Φ426 | 315 | G3/4" | |
| 300 | 750 | 1200 | 840 | 1050 | Φ480 | 385 | G3/4" | |
| 400 | 810 | 1200 | 850 | 1180 | Φ530 | 385 | G3/4" | |
| 500 | 930 | 1400 | 1000 | 1200 | Φ630 | 550 | G3/4" | |
| 600 | 1020 | 1400 | 1000 | 1200 | Φ720 | 550 | G3/4" | |
Application of basket filter:
1.Applicable industry:Fine chemical industry,water treatment system,papermaking,automotive industry,petrochemical,mechanical processing,coating and so on.
2.Applicable liquid:All kind of the liquid with the micro particles.
Main filtration function:Remove the big particle,clean the fluid and protect the key equipment.
3.Type of filtration:Big particles filtration.It use the reusable filter material.It should be cleaned regularly by manual.
Packaging & Delivery of Stainless Steel Basket Filter:
Packaging Details: wooden boxes or according to customer's reqirement.
Lead Time:
| Quantity(Pieces) | 1 - 10 | >10 |
| Est. Time(days) | 7 | To be negotiated |
