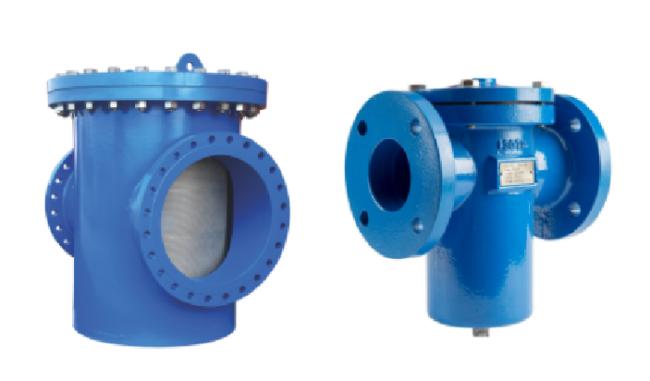

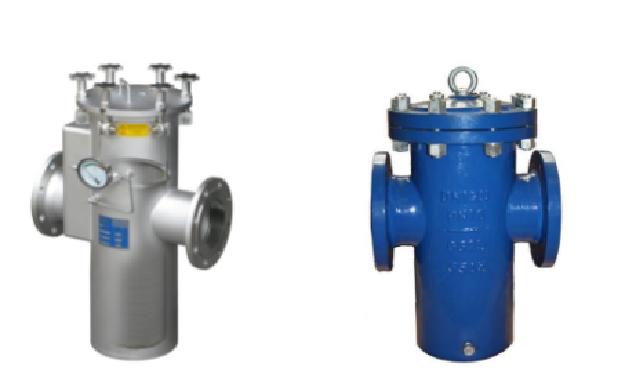

DN25 Ss304 Basket Filter Customized Industrial Products

304 stainless steel basket filter sintered basket filter screen
Sintered filter element can not only be used as the filter medium of basket filter, mesh filter and other filtering equipment, but also has many excellent properties, such as high filtration precision, high temperature resistance, corrosion resistance, high mechanical strength, easy processing and long service life, so it is more and more applied to the separation of products and process media in petroleum and petrochemical industry.
1) It is used as dispersive cooling material in high temperature environment;
2) For gas distribution, liquid bed orifice plate material;
3) High precision, high reliability and high temperature filter material;
4) Used for high pressure backwash oil filter.





Material of filter frame and screen	Working temperature (℃) - 30 ～ + 380-80 ～ + 450
Stainless steel	Nominal pressure (MPA) 0.6 ～ 6.4 (150Lb ～ 300lb)
Seal material	Filtration accuracy: (mesh / in) 10-300
Oil resistant asbestos, flexible graphite, PTFE, EPDM	Connection mode: flange, butt welding



Maintenance of T-Basket Filter:

• The key part of this kind of the filter is the filter core.The filter core consists of the filter frame and stainless steel wire mesh.The SS wire mesh belongs to the wear parts.It needs a special protection.
• After the filter has worked for some time,it will precipitates a certain amount of the impurities in the filter core.Then the pressure will be increased and the flow speed will be reduced.So we should clean the impurities in the filter core in time.
• When we clean the impurities,we should be careful to assure the SS wire mesh in the filter core will not be deformed or damaged.Otherwise,when you reuse the filter,the impurities of the filtered liquid will not reach to the designed requirement.And the compressors,pump or the instruments will be destroyed.
• Once the SS wire mesh has been found to be deformed or damaged,we should replace it immediately.









Material	Stainless steel
Size	DN25-DN300
Working temperature (℃)	- 30 ～ + 380-80 ～ +
Nominal pressure (MPA)	0.6 ～ 6.4 (150Lb ～ 300lb)
Filtration accuracy	(mesh / in) 10-300
Connection mode	Flange, butt welding
Sample	Free
Certification	ROHS
OEM	Accept
Height	Customized
Material	Stainless steel AISI304; AISI316L
Characteristic	High pressure resistance / high temperature resistance / corrosion resistance / acid and alkali resistance
