PN0.6 Industrial Tube Dn15 Stainless Steel Filter Housing
Price:
Determined by product details
MOQ:
1set
Delivery Time:
1-2weeks
Brand:
HanKe
Product Description

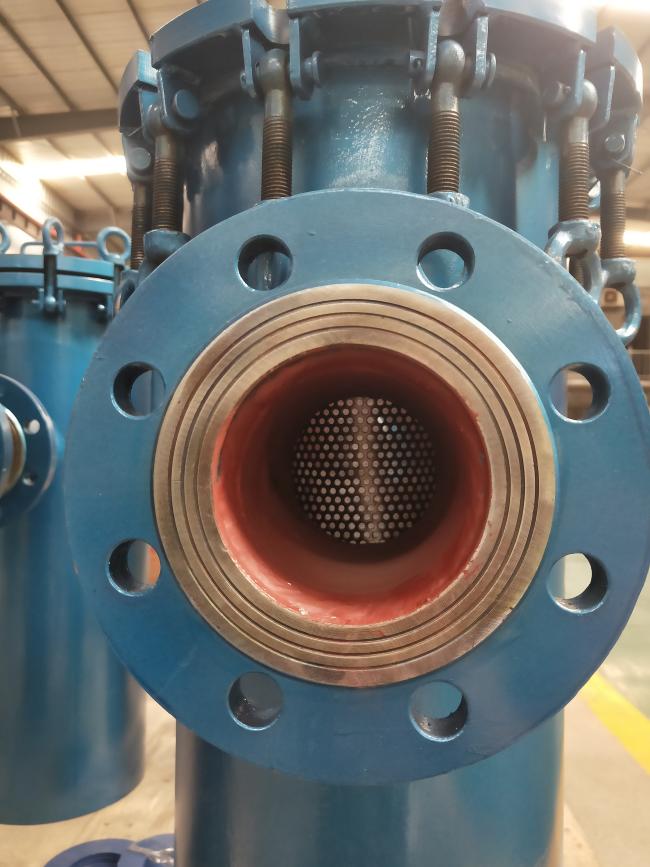

Industrial tube filter housing , stainless steel 304 basket filter
Characteristics of ss basket filter:
- Working temperature:≤95ºC;
- Nominal diameter:DN15-DN600;
- Nominal pressure:PN0.6-2.5Mpa;
- Filtration precision:50um-8000um
- Material of housing:Q235B,304,304,316,316L;
- Material of seal:PTFE/Rubber;
- Form of inlet/outlet:Flange/Inner wire/Outer wire/Quick installation
- Form of cover compression:Bolt/Quick bolt
- Suitable viscosity(cp):1-30000
- Form of basket:Punching mesh/Single-layer mesh/Composite mes
Technical Parameter of stainless steel basket filter:
| Model | DN | Flow | Weight | Dimensions | |||||
| L | H | H1 | H* | D | |||||
| inch | mm | m3/h | kg | mm | |||||
| AL100 | 4 | 100 | 80 | 50 | 400 | 577 | 300 | 1000 | 219 |
| AL150 | 6 | 150 | 150 | 88 | 500 | 729 | 420 | 1200 | 273 |
| AL200 | 8 | 200 | 300 | 125 | 560 | 891 | 530 | 1500 | 325 |
| AL250 | 10 | 250 | 400 | 175 | 660 | 1023 | 640 | 1770 | 377 |
| AL300 | 12 | 300 | 600 | 250 | 750 | 1295 | 840 | 2250 | 426 |
| AL350 | 14 | 350 | 900 | 315 | 800 | 1298 | 840 | 2300 | 480 |
| AL400 | 16 | 400 | 1100 | 395 | 850 | 1431 | 900 | 2500 | 530 |
| AL450 | 18 | 450 | 1500 | 560 | 950 | 1605 | 1000 | 2800 | 610 |
| AL500 | 20 | 500 | 2000 | 780 | 1100 | 1753 | 1100 | 3100 | 720 |
| AL600 | 24 | 600 | 2800 | 1115 | 1200 | 1855 | 1100 | 3250 | 820 |
Advantage of basket filter:
1. Shell material: Carbon steel or stainless steel 201/304/316
2. Filter material: stainless steel
3. Sealing material: NBR, VITON
4. DN: 25-300mm
5. Pressure: 1.0Mpa, 1.6Mpa
6. Filter accuracy: 10-300mesh
Packaging & Delivery of Stainless Steel Basket Filter:
Packaging Details: wooden boxes or according to customer's reqirement.
Lead Time:
| Quantity(Pieces) | 1 - 10 | >10 |
| Est. Time(days) | 7 | To be negotiated |
