Vacuum Furnace Tungsten Wire Mesh 120 150 200 Mesh
vacuum furnace tungsten mesh , 120 150 200 mesh tungsten wire mesh
product description of wire mesh:
Tungsten wire mesh is made of tungsten wire with purity over 99.9%. Tungsten wire mesh has very high tensile strength. It has the highest melting point of all metals even at high temperature over 1650ºC. Among its properties are a melting point of 3410ºC, a low coefficient of thermal expansion and low vapor pressure at elevated temperatures, along with good electrical and thermal conductivity.
Description of Wire Mesh:
Material:Nickel 200(N6) , nickel 201(N4) N2, N8...
Weave type:plain weave, twill weave , dutch weave and twilled dutch weave,reverse dutch weave, etc
Mesh size:1- 400mesh
Wire Diameter:0.025-2.0mm
Roll Width:0.914m,1.0m,1.22m,1.5m.3.0m
Roll Length:15m,30m, other require can be customized
Features:Excellent anti-corrosion& alkali& acid & high temperature
Thermal conductivity and ductility
High electrical ductility, wear resistance
Technical data of wire mesh:
| Material type |
Bright pure tungsten wire, tungsten content 99.95%, black pure tungsten wire
|
| Mesh counts |
2-200
|
| Mesh size |
1m*30m,1.2*30m,1.2m*30.5m,etc
|
| Melting point |
3410±20℃
|
| Boiling point |
5927℃
|
| Technique |
Woven
|
|
Sample
|
Free and available |
|
Surface
|
Flat and bright |
Feature:
1. Tungsten is a very hard, dense, silvery-white, lustrous metal that tarnishes in air, forming a protective oxide coating. In powder form tungsten is gray in color.
2. Tungsten is highly resistant to corrosion. It forms tungstic acid (H2WO4), or wolframic acid from the hydrated oxide (WO3) and its salts are called tungstates, or wolframates.
3. Tungsten is one of the five major refractory metals (metals with very high resistance to heat and wear). The other refractory metals are molybdenum, tantalum, rhenium and niobium.
Application:
(1) Electromagnetic shielding mesh
(2) Vacuum heat treatment furnace grate
(3) RF electromagnetic shielding, light filtering.
(4) Tungsten wire mesh is high temperature resistant and often used as vacuum furnace tungsten mesh heating element, heat treatment supporting wire mesh.
(5) Tungsten wire mesh can ba widely used in various mechanical, electrical, air conditioner, filter, vacuum equipment, heating and special purposes.

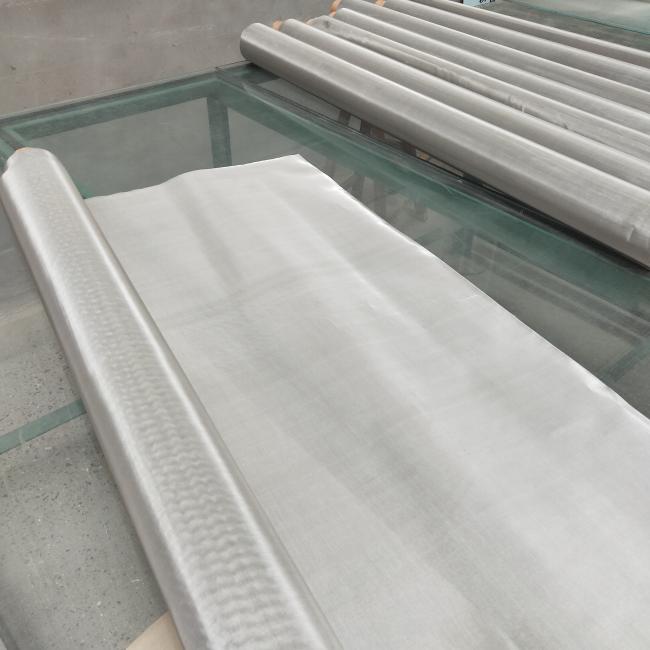

Pictures of wire mesh:
