Stainless Steel Bag Filter Introduction

Bag filter is a pressure filter with filter bag and reinforced metal basket as filter element, which is installed on the transmission pipeline to filter and remove impurities in the transmission medium in the pipeline and protect the equipment on the pipeline from wear and blockage.
We can produce single bag filters or multi bag filter systems to meet the needs of different applications. 2-24 filter bags for standard multi bag filter; The maximum number of filter bags of customized multi bag filter can be 40. The multi bag filter is applicable to the working condition of flow of 60-1000m3 / h. for the filter with a small number of filter bags, the hand wheel and rotating arm of standard bearing are matched to facilitate opening and operation; For filters with more than 12 bags, air cylinder or hydraulic assistance can be selected, and only one person is required to operate when opening and closing. The auxiliary device includes pressure relief valve, locating pin, etc., which effectively ensures the safe operation of the equipment. Diversified and advanced filter design, precision filter bag and automatic combination provide you with the best solution.

Stainless Steel Bag Filter Advantages

High filtration precision, suitable for the filtration of any fine particles or suspension, with a filtration range of 0.5-200 μ m.
The leakage rate of the filter bag is small, which effectively ensures the filtration quality.
It can bear high working pressure, small pressure loss and low operation cost. Remarkable energy saving effect.
Large flow per unit volume and low filtration resistance.
It is convenient and fast to replace the filter bag.
The filter bag can be reused after cleaning to save cost.

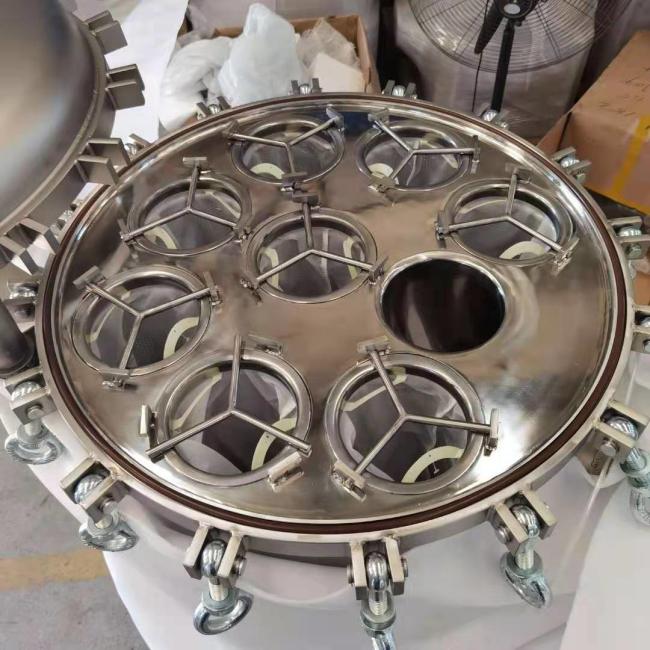

Stainless Steel Bag Filter Structure

1. Filter housing: made of high-quality p235gh steel or 304, 316 and 316L stainless steel. Good corrosion resistance.
2. Filter cover: the multi bag filter cover is equipped with a rotating arm, which is convenient to move when replacing or cleaning the filter element. It is made of the same material as the filter shell and has excellent corrosion resistance.
3. Rotating arm: with hand wheel and standard bearing, it is convenient to remove the filter cover.
4. Instrument
5. Fasteners: connected by eyebolts, it is convenient to quickly open or close the fastening filter and filter cover.
6. Filter element: the perforated metal basket is used as the support, and the filter bag is placed in the metal basket.
7. Filter medium inlet
8. Filter leg
