316l Stainless Steel Knitted Wire Mesh Industrial Filtration
Stainless Steel Wire Industrial Filtration Knitted Wire Mesh
Knitted Wire Mesh Description:

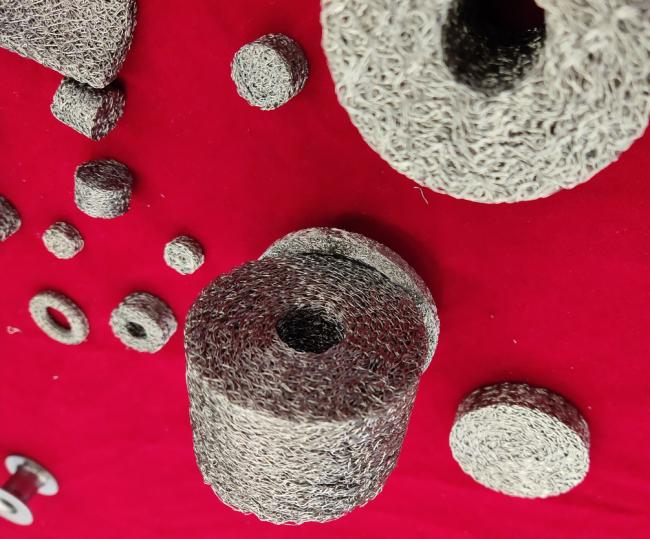

Knitted wire mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.
Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.
Knitted Wire Mesh Wire Diameter :
0.10mm---0.55mm(commonly used:0.2—0.28mm)
The standard knit of the insulation mesh is 8 stitches per inch of width and 6-8 courses per inch of length.
Knitted Wire Mesh Application :
vibration & shock absorption, air & liquid filtration, gasket & sealing, heat transfer & insulation. Suitable for petroleum, chemicals, industries, medicine, machinery, shipbuilding, automobile, tractor industries such as distillation, filtration process, and used as automobile air filter.
Knitted Wire Mesh Specification :
| Knitted wire mesh / Gas Liquid Separator Filter Mesh | |
| Material | Stainless steel wire, Copper wire, Brass wire, Nickel wire, Titanium wire, Monel wire, galvanized wire, PP, PE, PVC etc. |
| Woven type | Crochet weaving |
| Filament | Mono-filament, Multi-filament |
| Wire diameter | 0.08-0.5mm, normally the diameter is 0.20---0.25mm |
| Width | 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 600mm,etc |
| Hole size | 2x3mm-4x5mm-12x6mm |
| Surface type | Flattened , Ginning |
