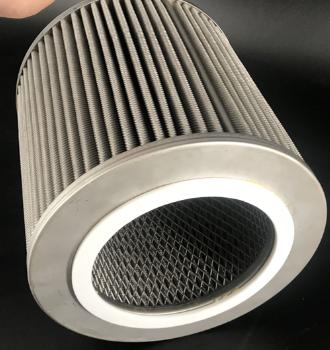

Sintered 3 Micron Rate Bopp Filter 200 Mm Length
3 Micron Filter Rate 200 mm Length Stainless Steel Pleated BRUCKNER SPAR PARTS BOPP Filter
Stainless Steel Pleated Filter Element Information:
Stainless steel sintered fiber felt is a honey comb filter hole with high filtration rate. And it is a kind of durable and pleating-able, enough pleating can get bigger filtration area. Sintered into a graded pore structure, enjoys the advantages of high porosity rate, more filtration area, high dirt holding capacity and can be repeatedly used.
Stainless Steel Pleated Filter Features:
• Bigger filtration area;
• Good pollutant carrying capacity ;
• High temperature resistance, corrosion resistance, suitable for viscous liquid filtration;
• Easy to clean, can be repeated use.
Stainless Steel Pleated FilterTechnical:
• Filtration rate: 3- 200μm;
• Work Temperature: -50℃-800℃;
• Size: 25-180mm OD, 100-1500mm Length
• Hanke Filter can be customized.
Stainless Steel Pleated Filter Application:
• Polymer filtration
• Water treatment
• Oil filter
• Chemical industry
• Medicine
• Metallurgy
• Food machinery
Stainless Steel Pleated Filter Parameters:
| Model | Length | Diameter | M | Filter Area |
Filter Rate (μm) |
Filter Material |
| PF-65/250-R | 250 | 65 |
226 223 222 220 215 |
0.135㎡ |
3,5,7,10,15,25, 30,40,60,75
|
Stainless Steel Sintered Fiber Mesh, Stainless Steel Wire Cloth
|
| PF-65/500-R | 500 | 65 | 0.38㎡ | |||
| PF-70/750-R | 750 | 70 | 0.42㎡ | |||
| PF-70/750-R | 750 | 70 | 0.60㎡ |
