10 Micron Rate 4mm BOPP Filter 800mm Length
10 Micron Filter Rate 800 mm Length Stainless Steel Pleated BRUCKNER SPAR PARTS BOPP Filter

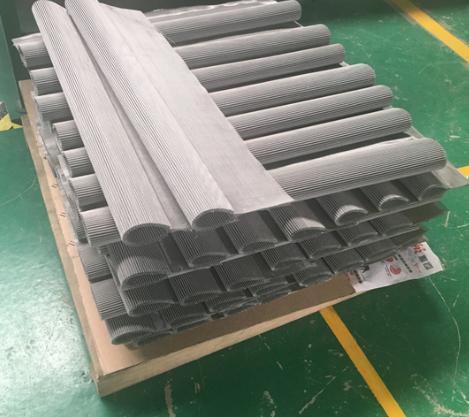

Stainless Steel Pleated Filter Element Information:
Stainless steel sintered fiber felt is a honey comb filter hole with high filtration rate. And it is a kind of durable and pleating-able, enough pleating can get bigger filtration area. Sintered into a graded pore structure, enjoys the advantages of high porosity rate, more filtration area, high dirt holding capacity and can be repeatedly used.
Stainless Steel Pleated FilterTechnical:
• Filtration rate: 3- 200μm;
• Work Temperature: -50℃-800℃;
• Size: 25-180mm OD, 100-1500mm Length
• Hanke Filter can be customized.
Stainless Steel Pleated Filter Application:
• Polymer filtration
• Water treatment
• Oil filter
• Chemical industry
• Medicine
• Metallurgy
• Food machinery
Stainless Steel Pleated Filter Parameters:
| Model | Length | Diameter | M | Filter Area |
Filter Rate (μm) |
Filter Material |
| PF-62/180-R | 180 | 62 | G1” | 0.09㎡ |
3,5,7,10,15,25, 30,40,60,75
|
Stainless Steel Sintered Fiber Mesh, Stainless Steel Wire Cloth
|
| PF-35/207-R | 207 | 86 | G2” | 0.17㎡ | ||
| PF-35/210-R | 210 | 86 | G2” | 0.20㎡ | ||
| PF-35/242-R | 242 | 86 | G2” | 0.27㎡ | ||
| PF-35/425-R | 425 | 86 | G2” | 0.58㎡ | ||
| PF-35/485-R | 485 | 140 | G2” | 0.65㎡ |
