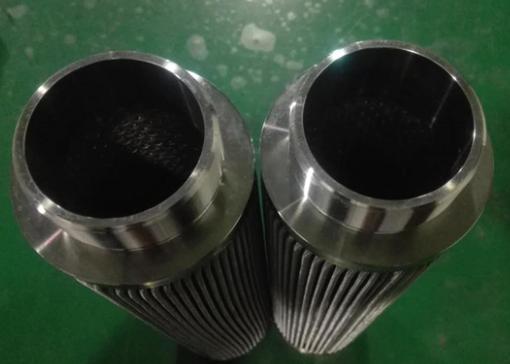

40 Micron 750 Mm Length Pleated Filter Elements Bruckner Spare Parts
40 Micron Filter Rate 750 mm Length Stainless Steel Pleated BRUCKNER SPAR PARTS BOPP Filter
Stainless Steel Pleated Filter Element Information:
Stainless steel sintered fiber felt is a honey comb filter hole with high filtration rate. And it is a kind of durable and pleating-able, enough pleating can get bigger filtration area. Sintered into a graded pore structure, enjoys the advantages of high porosity rate, more filtration area, high dirt holding capacity and can be repeatedly used.
Stainless Steel Pleated Filter Features:
• Bigger filtration area;
• Good pollutant carrying capacity ;
• High temperature resistance, corrosion resistance, suitable for viscous liquid filtration;
• Easy to clean, can be repeated use.
Stainless Steel Pleated FilterTechnical:
• Filtration rate: 3- 200μm;
• Work Temperature: -50℃-800℃;
• Size: 25-180mm OD, 100-1500mm Length
• Hanke Filter can be customized.
Stainless Steel Pleated Filter Application:
• Polymer filtration
• Water treatment
• Oil filter
• Chemical industry
• Medicine
• Metallurgy
• Food machinery
Stainless Steel Pleated Filter Parameters:
| Model | Length | Diameter | M | Filter Area |
Filter Rate (μm) |
Filter Material |
| PF-65/250-R | 250 | 65 |
226 223 222 220 215 |
0.135㎡ |
3,5,7,10,15,25, 30,40,60,75
|
Stainless Steel Sintered Fiber Mesh, Stainless Steel Wire Cloth
|
| PF-65/500-R | 500 | 65 | 0.38㎡ | |||
| PF-70/750-R | 750 | 70 | 0.42㎡ | |||
| PF-70/750-R | 750 | 70 | 0.60㎡ |
