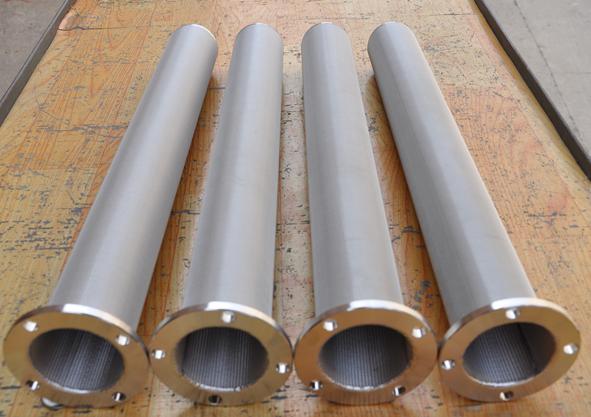

Stainless Steel 304 25 Micron Sintered Wire Mesh Filter Chemical Industry Filtration
Stainless Steel 304 Fiter rate 25 micron Chemical Industry Filtration Sintered Wire Mesh Filter
Stainless Steel Sintered Mesh Element Application
• Polyester
• Petroleum
• Chemical
• Pharmaceutical
• Food and beverage, oil
• Catalytic recycling.
Stainless Steel Sintered Mesh Element Technical
• Filtration rate: 0.5- 200μm;
• Work Temperature: -50℃-800℃;
• Size: 14-800mm OD, 10-1200mm Length
• Hanke Filter can be customized.
Stainless Steel Sintered Mesh Parameters
| Model | Length | Diameter | M | Filter Area |
Filter Rate (μm) |
Filter Material |
| CF-14/65-R | 65 | 14 |
M10x1P M14x1P M14x1.5P 1/4”NPT |
0.002㎡ |
0.5, 1, 2, 5, 10, 15, 20, 30, 40, 75 |
Stainless Steel Sintered Mesh,
|
| CF-14/25-R | 250 | 14 | 0.01㎡ | |||
| CF-14/500-R | 500 | 14 | 0.022㎡ | |||
| CF-14/1000-R | 1000 | 14 | 0.044㎡ |
| Model | Length | Diameter | M | Filter Area |
Filter Rate (μm) |
Filter Material |
| CF-25/250-R | 250 | 25 |
M20x1.5P |
0.019㎡ |
0.5, 1, 2, 5, 10, 15, 20, 30, 40, 75
|
Stainless Steel Sintered Mesh,
|
| CF-25/500-R | 500 | 25 | 0.039㎡ | |||
| CF-25/1000-R | 1000 | 25 | 0.078㎡ | |||
| CF-25/500-R | 500 | 30 |
M20x2P M20x2.5P M28x2P |
0.046㎡ | ||
| CF-30/1000-R | 1000 | 30 | 0.093㎡ | |||
| CF-30/1500-R | 1500 | 30 | 0.140㎡ |
