Polyester Industry Stainless Steel Candle Filter 200 Micron
Polyester Industry Cartridge Filter Housing Stainless Steel Candle Filter
Polyester Industry Cartridge Filter Housing Stainless Steel Candle Filter Media: Sintered Mesh
Sintered mesh filter is made of sintered mesh after cutting, precision welded sintered filter. The most important point of Sintered felt filter element is that a large number of high-precision welding is used. To ensure roundness and flat, Sintered wire mesh filter cartridge is sintered after using rolling seam welding process and the method of correction weld, it can make the overall look more beautiful.
Main filter medium of sintered filter elements is five-layer sintered wire cloth, filter rating is form 1 to 200 micron. Five-layer sintered wire cloth consists of five layers of stainless steel mesh, which are sintered together in vacuum.
Alloy: Stainless Steel, Duplex SS, Supper Duplex SS, Monel, Hastelloy, Inconel, FeCr Al, Fe3Al etc.
Polyester Industry Cartridge Filter Housing Stainless Steel Candle Filter Advantage:
-Uniform hole, accurate filtration rate
-High hardness and good abrasion resistance
-Excellent resistance to erosion, heat and pressure
Polyester Industry Cartridge Filter Housing Stainless Steel Candle Filter Specification:
-Filtration rate: 1-200μm
-Temperature: -50℃-800℃
-Diameter:14-800mm, Length:10-1200mm
-Hanke Filter can be customized by your demands.
Polyester Industry Cartridge Filter Housing Stainless Steel Candle Filter Application:
-Polyester
-Petrochemical, petroleum refining
-Pharmaceutical and food refining or cycling
-Drinking
-Catalytic recycling

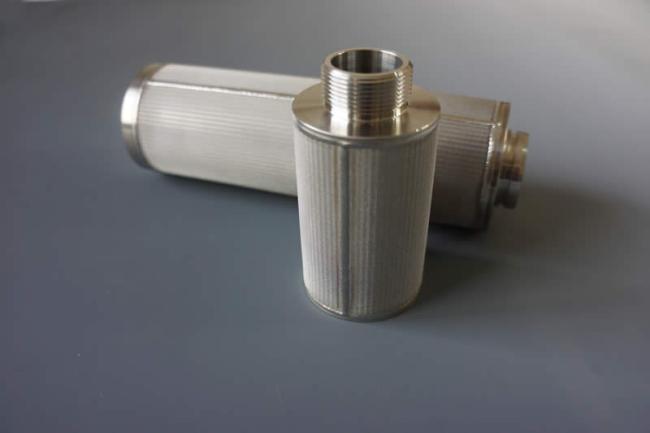

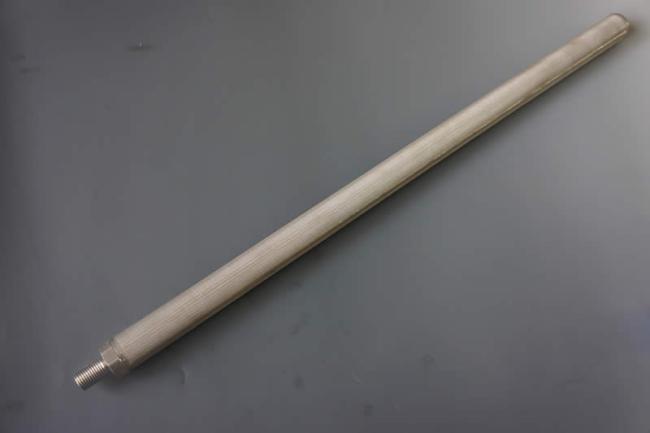

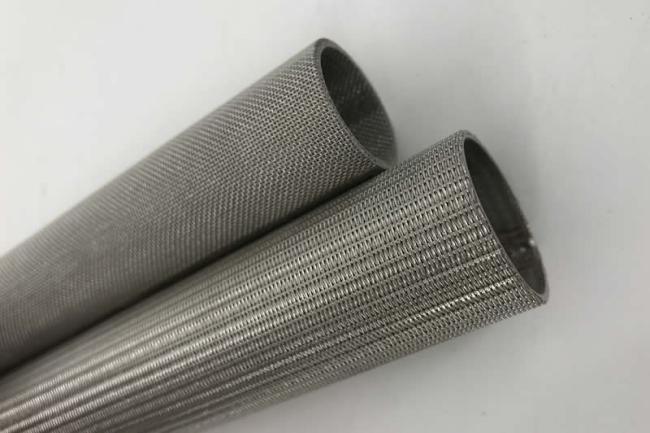

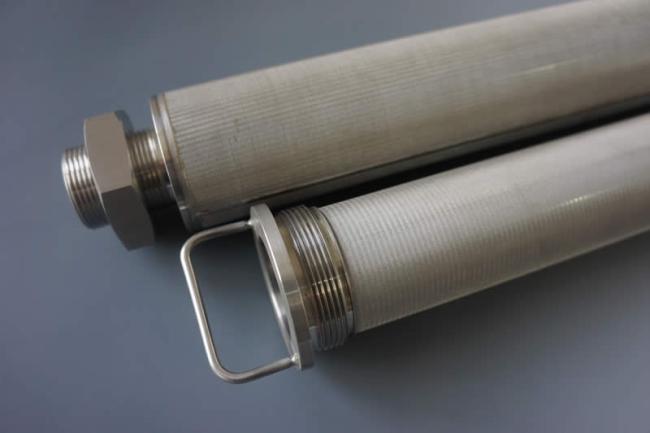

Photo List
Polyester Industry Cartridge Filter Housing Stainless Steel Candle Filter Specification
| Nominal Filter Rating (μm) | Protective Layer Mesh | Filtration Layer Mesh | Dispersion Layer Mesh |
Reinforcing Layer Mesh | Reinforcing Layer Mesh | Thickness (mm) |
Air Permeability (L/min/cm2) |
Bubble Pressure (mm H2O) |
Weight (kg/m2) |
Porosity |
| 1 | 200 | 400 x 3000 | 200 | 12 x 64 | 64 X 12 | 1.7 | 1.81 | 360 - 360 | 5 Layers (8.4) 6 Layers (14.4) |
Approx 40% |
| 2 | 100 | 325 x 2300 | 100 | 12 x 64 | 64 X 12 | 1.7 | 2.35 | 300-590 | ||
| 5 | 100 | 200 x 1400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 2.42 | 260-550 | ||
| 10 | 100 | 165 x 1400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 3.00 | 220-500 | ||
| 15 | 100 | 165 x 1200 | 100 | 12 x 64 | 64 X 12 | 1.7 | 3.41 | 200-480 | ||
| 20 | 100 | 165 x 800 | 100 | 12 x 64 | 64 X 12 | 1.7 | 4.50 | 170-450 | ||
| 25 | 100 | 165 x 600 | 100 | 12 x 64 | 64 X 12 | 1.7 | 6.12 | 150-410 | ||
| 30 | 100 | 400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 6.86 | 120-390 | ||
| 40 | 100 | 325 | 100 | 12 x 64 | 64 X 12 | 1.7 | 7.10 | 100-350 | ||
| 50 | 100 | 250 | 100 | 12 x 64 | 64 X 12 | 1.7 | 8.41 | 90-300 | ||
| 75 | 100 | 200 | 100 | 12 x 64 | 64 X 12 | 1.7 | 8.70 | 80-250 | ||
| 100 | 100 | 150 | 100 | 12 x 64 | 64 X 12 | 1.7 | 9.10 | 70-190 | ||
| 150 | 50+100+50+30+30+100+50 | 2.0 | 25.00 | 50-150 | ||||||
| 200 | 40+80+40+20+40+80+40 | 2.0 | 26.00 | 50-150 | ||||||
| Model | L (mm) |
D (mm) |
M | Filter Area(M2) | R (µm) |
Filter Media |
| CF-14/65-R | 65 | 14 | M10*1P M14*1P M14*1.5P 1/4"NPT |
0.002 | 2, 5, 10, 15, 20, 30, 40, 75 | Stainless Steel Sintered Wire Cloth |
| CF-14/250-R | 250 | 0.01 | ||||
| CF-14/500-R | 500 | 0.022 | ||||
| CF-14/1000-R | 1000 | 0.044 |
| Model | L (mm) |
D (mm) |
M | Filter Area(M2) | R (µm) |
Filter Media |
| CF-25/250-R | 250 | 25 | M20*1.5P | 0.019 | 2, 5, 10, 15, 20, 30, 40, 75 | Stainless Steel Sintered Wire Cloth |
| CF-25/500-R | 500 | 0.039 | ||||
| CF-25/1000-R | 1000 | 0.078 | ||||
| CF-30/500-R | 500 | 30 | M20*2P M20*2.5P M28*2P |
0.046 | ||
| CF-30/1000-R | 1000 | 0.093 | ||||
| CF-30/1500-R | 1500 | 0.140 |
| Model | L (mm) |
D (mm) |
M | Filter Area(M2) | R (µm) |
Filter Media |
| CF-50/250-R | 250 | 50 | Sealing ring or flange | 0.038 | 2, 5, 10, 15, 20, 30, 40, 75 | Stainless Steel Sintered Wire Cloth |
| CF-50/500-R | 500 | 0.078 | ||||
| CF-50/1000-R | 1000 | 0.150 | ||||
| CF-60/500-R | 500 | 60 | 0.094 | |||
| CF-70/500-R | 500 | 70 | 0.108 | |||
| CF-75/500-R | 500 | 75 | 0.115 | |||
| CF-90/500-R | 500 | 90 | 0.140 | |||
| CF-150/500-R | 500 | 150 | 0.230 | |||
| Note: Inner support of filter elements can be stainless steel perforated tube or spring | ||||||
